LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

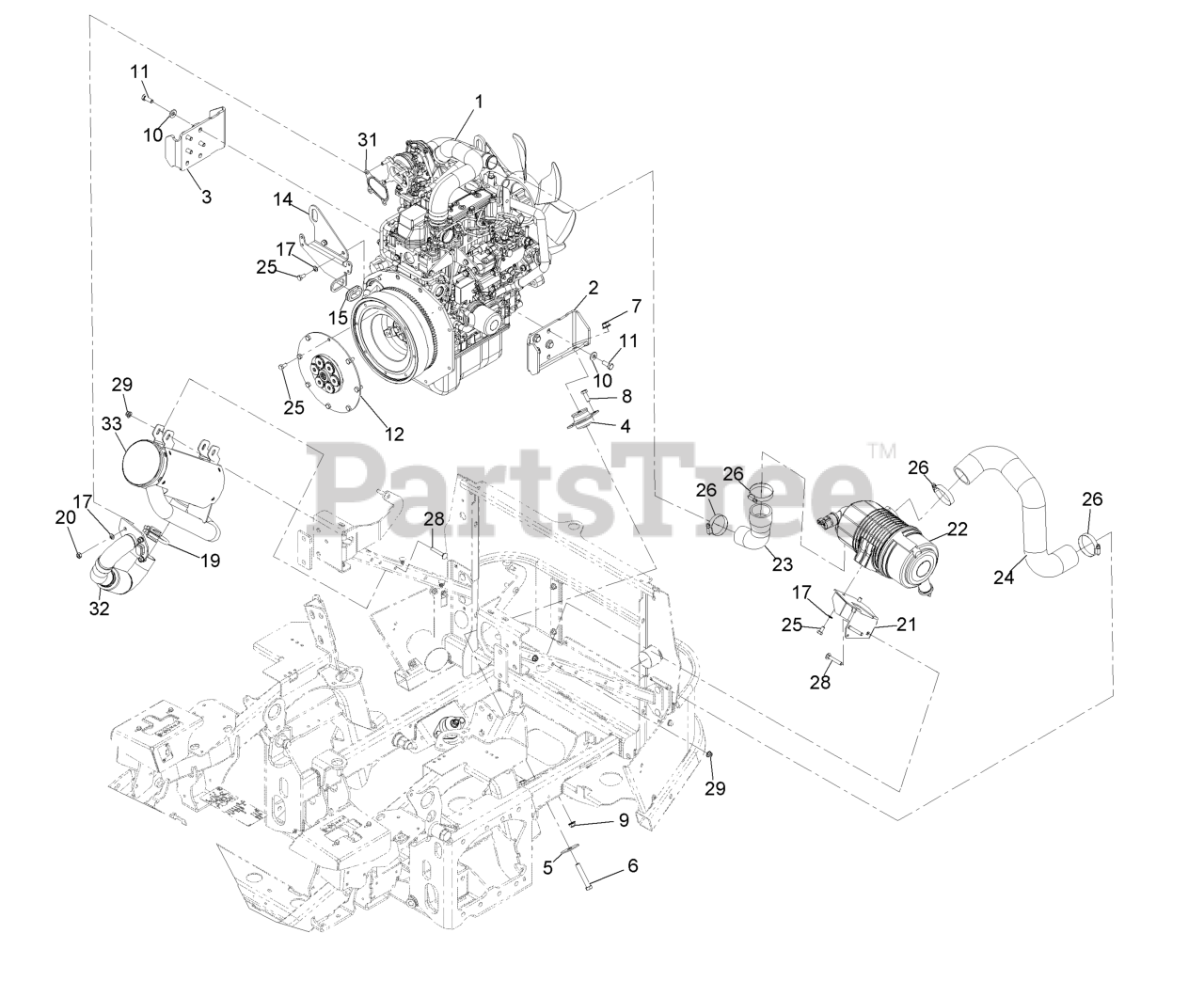

Engine Assembly Parts Diagram

  • Title
1

Exmark 126-8758

Engine,Yanmar
(Superseded to 138-6926)

$10084.99

$

Usually ships in 3-6 days

0

2

Exmark 126-9282-03

Mount-Engine, Lt [black]

$82.99

$

Usually ships in 3-6 days

0

3

Exmark 126-9285-03

Mount-Engine, Rt [black]

$82.99

$

Usually ships in 3-6 days

0

4

$38.99

$

Usually ships in 3-6 days

0

5

Exmark 87-5100

Washer-Snubbing

$4.49

$

Usually ships in 3-6 days

0

6

Exmark 324-11

Screw-HH

$4.49

$

Usually ships in 3-6 days

0

7

Exmark 114-8417

Nut-HF, NI

$2.49

$

In Stock, Qty 18

0

8

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.49

$

In Stock, Qty 20+

0

9

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

10

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

11

Exmark 33115-025

Screw-HH M10-1.5 X 35Mm

$1.99

$

Usually ships in 3-6 days

0

12

Exmark 126-6531

Flywheel Coupling ASM

$261.99

$

Usually ships in 3-6 days

0

14

Exmark 126-7610-03

Bracket-Guide

$37.99

$

Usually ships in 3-6 days

0

15

Exmark 108-3723

Grommet

$8.49

$

Usually ships in 3-6 days

0

17

Exmark 3290-475

Washer-Belleville

$2.99

$

Usually ships in 3-6 days

0

19

$36.99

$

Usually ships in 3-6 days

0

20

Exmark 33014-00

Nut-Hex M8-1.25

$0.99

$

In Stock, Qty 20+

0

21

Exmark 126-8730-03

Bracket-Cleaner, Air

$43.99

$

Usually ships in 3-6 days

0

22

Exmark 126-7646

Air Cleaner ASM
(Superseded to 142-3554)

$192.99

$

In Stock, only 3 left!

0

23

Exmark 126-7288

Hose-Air

$26.99

$

Usually ships in 3-6 days

0

24

Exmark 120-9177

Hose-Air

$79.99

$

Usually ships in 3-6 days

0

25

$16.99

$

In Stock, only 2 left!

0

26

Exmark 2412-130

Clamp-Hose

$4.49

$

Usually ships in 3-6 days

0

28

Exmark 3230-6

Bolt-Carriage 3/16-18 X 2

$1.49

$

In Stock, Qty 11

0

29

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

31

Exmark 136-2307

Gasket-Header

$9.49

$

Usually ships in 3-6 days

0

32

Exmark 126-9329

Header Pipe

$288.99

$

Usually ships in 3-6 days

0

33

Exmark 126-8911

Muffler-ASM

$509.99

$

Usually ships in 3-6 days

0
