LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Caster Wheel and Fork Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

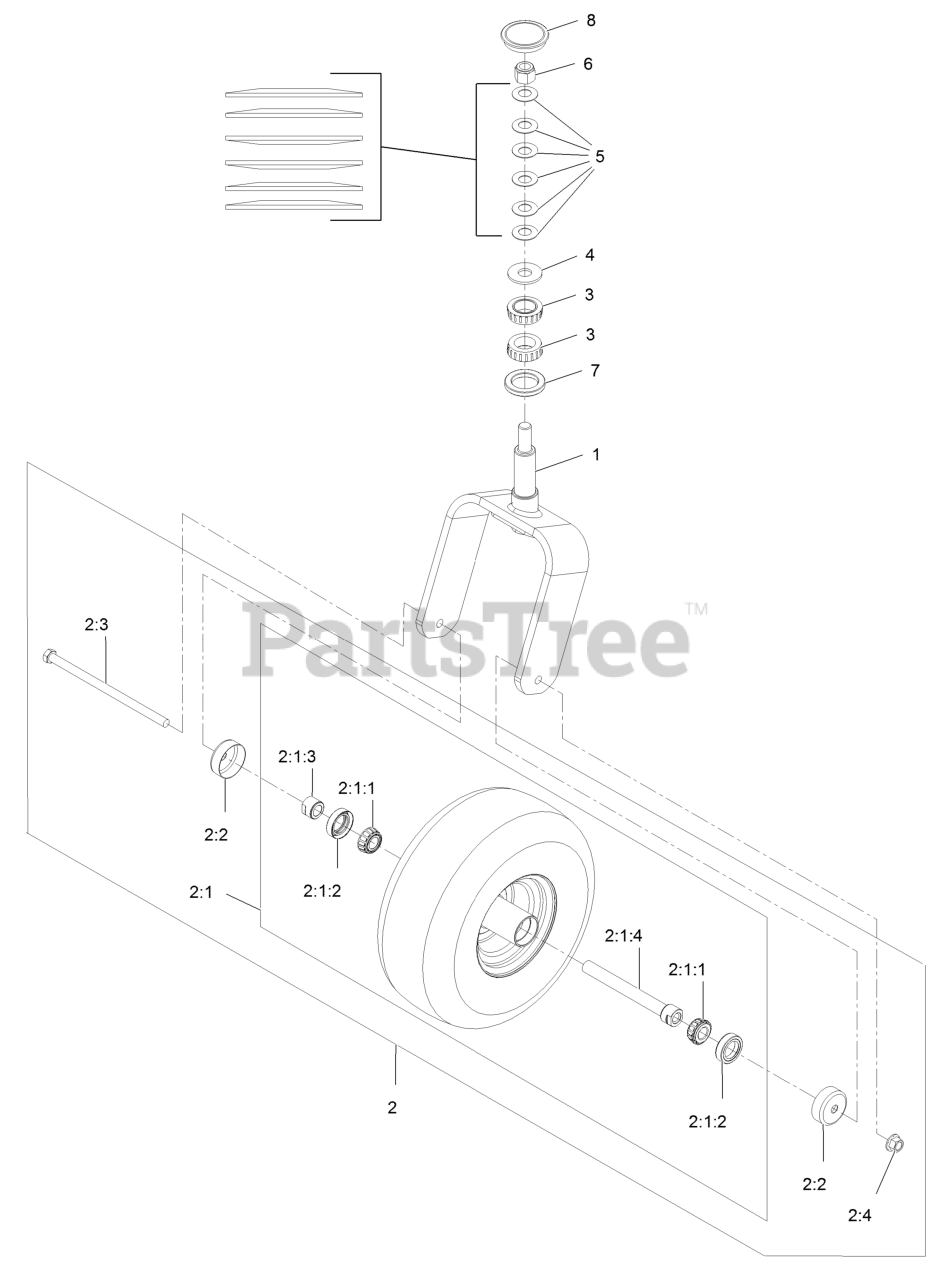

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 126-8601-01

Fork-Caster

$193.99

$

In Stock, only 2 left!

0

2

Exmark 126-8157

ASM-Whl And Tire

$361.99

$

Usually ships in 3-6 days

0

2:1

ASM-Whl And Tire

$

$

Not available

2:1:1

Exmark 1-633585

Bearing-Cone Tapered Roller

$21.99

$

In Stock, Qty 12

0

2:1:2

Exmark 103-0063

Seal-Double Lip

$8.99

$

In Stock, Qty 6

0

2:1:3

Exmark 103-3051

Spacer-Nut

$9.49

$

In Stock, Qty 12

0

2:1:4

Exmark 126-5361

Axle Caster ASM

$19.99

$

In Stock, only 2 left!

0

2:2

Exmark 103-2768

Guard-Seal

$3.99

$

In Stock, Qty 20+

0

2:3

Exmark 325-39

Screw-HH 1/2-13 X 9 1/2

$18.99

$

In Stock, Qty 18

0

2:4

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

3

Exmark 103-9028

Cone-Bearing Taper Roller

$29.99

$

In Stock, only 2 left!

0

4

Exmark 3256-8

Washer

$3.99

$

In Stock, Qty 15

0

5

Exmark 1-633508

Washer-Spring Disc

$3.49

$

In Stock, Qty 20+

0

6

Exmark 3296-51

Nut-Nyloc 3/4-10

$6.49

$

In Stock, Qty 10

0

7

Exmark 135-0355

Seal-Grease

$7.99

$

In Stock, Qty 9

0

8

Exmark 126-9369

Cap-Grease

$5.49

$

In Stock, Qty 11

0
