Exmark 126-0909

ASM-DECK COMPLETE 603

$2917.99

$

Usually ships in 3-6 days

2

Exmark 1-633456

BUSHING-IDLER

$4.99

$

In Stock, Qty 20+

3

Exmark 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

4

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

5

Exmark 103-2802

WASHER

$5.49

$

In Stock, only 1 left!

6

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 20+

7

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

8

Exmark 116-5174

Blade-Extreme 2, 20.50"

Note: Optional Equipment

$

Currently unavailable 

8

Exmark 103-6403

USE 103-6403-S

(Superseded to 103-6403-S) 

$31.99

$

In Stock, Qty 20+

8

Exmark 103-6393

USE 103-6393-S

(Superseded to 103-6393-S) 

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

8

Exmark 103-6388

USE 103-6388-S

(Superseded to 103-6388-S) 

Note: Optional Equipment

$37.99

$

In Stock, Qty 20+

8

Exmark 103-6383

USE 103-6383-S

(Superseded to 103-6383-S) 

Note: Optional Equipment

$34.99

$

In Stock, Qty 20+

9

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

11

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

12

Exmark 109-6938

COVER-BELT, LH

$96.99

$

In Stock, Qty 20+

13

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 10

14

Exmark 109-7188

ASM,DISCHARGE CHUTE

$115.99

$

In Stock, only 2 left!

14:1

Exmark 109-2738

CHUTE,DISCHARGE

$81.99

$

In Stock, Qty 16

14:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$54.99

$

Usually ships in 3-6 days

14:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

14:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

15

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

16

Exmark 116-0675

SHEAVE,BLADE DRIVE 6.50

$94.99

$

In Stock, Qty 20+

17

Exmark 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, Qty 15

18

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$7.99

$

In Stock, only 2 left!

19

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 20+

20

Exmark 135-3437

ASM-CUTTER HSG

$178.99

$

In Stock, Qty 13

20:2

Exmark 134-6634

BEARING-3205 TRASHGUARD

$31.99

$

In Stock, only 4 left!

20:3

Exmark 135-3440

SPACER-BEARING

$8.49

$

In Stock, only 1 left!

21

Exmark 116-5614-01

DOGLEG - LZ60

$62.99

$

Usually ships in 3-6 days

22

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 20+

23

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

24

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 20+

25

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

26

Exmark 126-2585

IDLER ARM ASM

$192.99

$

In Stock, only 4 left!

27

Exmark 126-3182

BELTSHIELD-RT, 60

$129.99

$

Usually ships in 3-6 days

28

Exmark 126-4781-03

STEP-DECK

$28.99

$

In Stock, only 2 left!

29

Exmark 126-6589

DECAL, 604

$6.49

$

In Stock, Qty 14

30

Exmark 126-7685

IDLER-PULLEY

$62.99

$

In Stock, Qty 20+

31

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

32

Exmark 126-8047

BELT-V

$157.99

$

Usually ships in 3-6 days

33

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

34

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

35

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

36

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

37

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

38

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

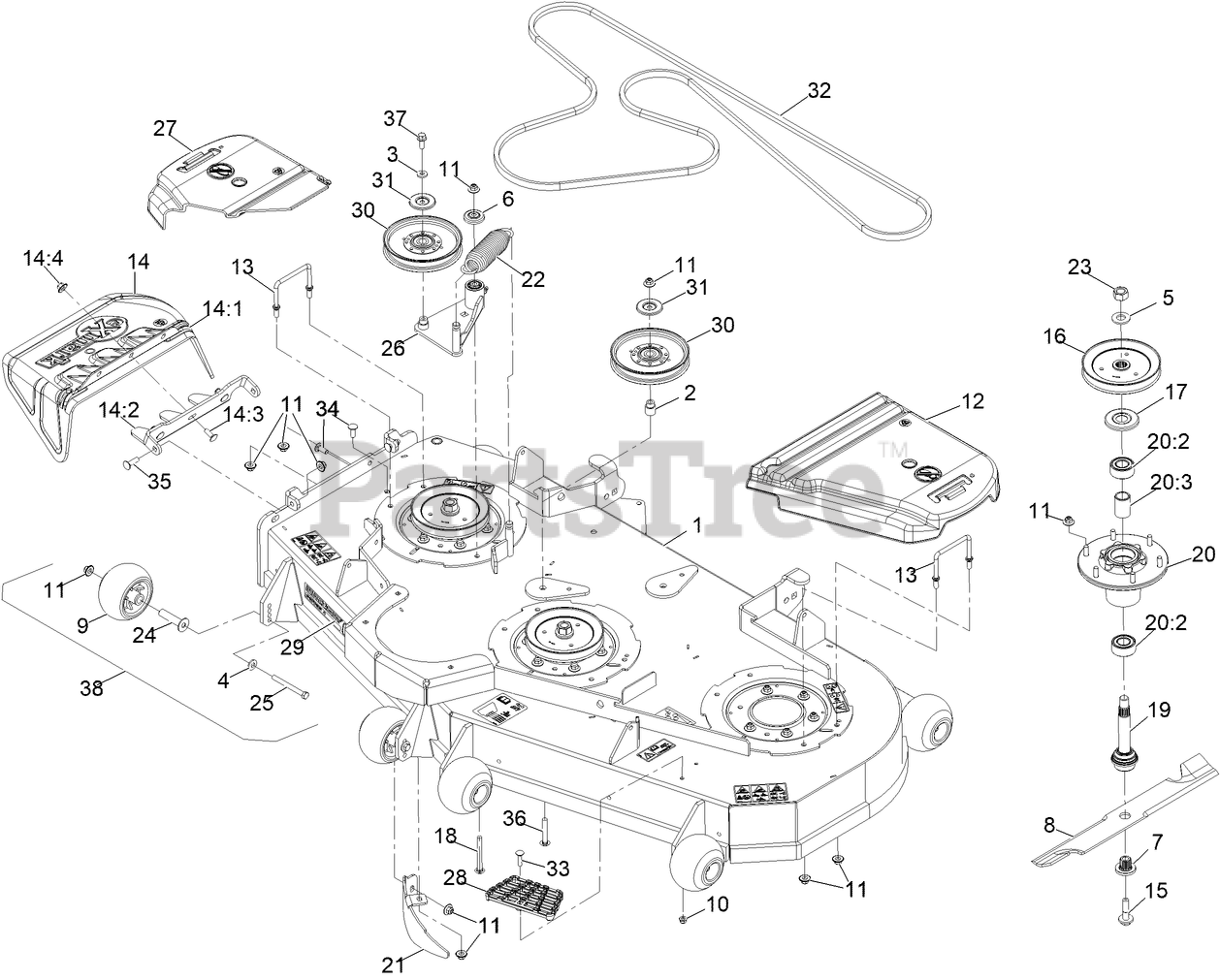

LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 413950474 & Above) (Rev A) (2023) Deck Assembly Parts Diagram
