LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 408644346 - 411294211) (Rev A) (2021) Gear Housing Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

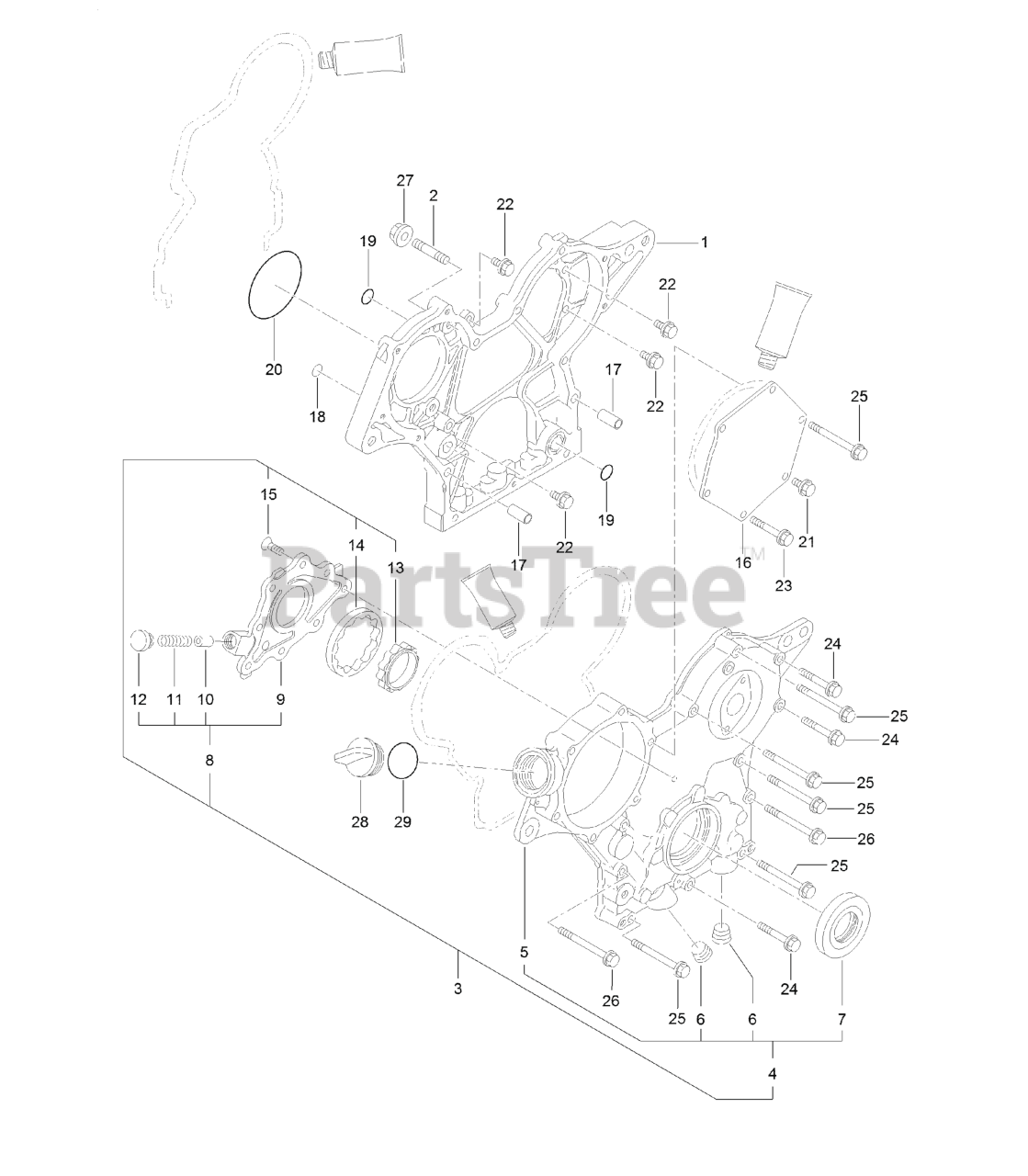

Gear Housing Assembly Parts Diagram

  • Title

1

Exmark 135-4042

CASE-GEAR

$851.99

$

Usually ships in 3-6 days

0

2

Exmark 135-4043

BOLT-STUD

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 135-4044

COVER ASM-GEAR CASE

$1318.99

$

Usually ships in 3-6 days

0

4

Exmark 135-4045

COVER ASSY-GEAR CASE

$783.99

$

Usually ships in 3-6 days

0

5

Exmark 135-4046

COVER-GEAR CASE

$834.99

$

Usually ships in 3-6 days

0

6

Exmark 133-6798

PLUG

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 135-4047

SEAL-OIL

$39.99

$

Usually ships in 3-6 days

0

8

Exmark 135-4048

COVER ASM

$260.99

$

Usually ships in 3-6 days

0

9

Exmark 135-4049

COVER-PUMP

$235.99

$

Usually ships in 3-6 days

0

10

Exmark 135-4050

VALVE-RELIEF

$27.99

$

Usually ships in 3-6 days

0

11

Exmark 135-4051

SPRING

$9.49

$

Usually ships in 3-6 days

0

12

Exmark 135-4052

PLUG

$12.99

$

Usually ships in 3-6 days

0

13

Exmark 135-4053

ROTOR-INNER

$122.99

$

Usually ships in 3-6 days

0

14

Exmark 135-4054

ROTOR-OUTER

$114.99

$

Usually ships in 3-6 days

0

15

Exmark 135-4055

SCREW

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 135-4056

COVER-PUMP

$67.99

$

Usually ships in 3-6 days

0

17

Exmark 135-4057

PIPE-DOWEL

$7.49

$

Usually ships in 3-6 days

0

18

Exmark 127-2973

O-RING

$3.49

$

Usually ships in 3-6 days

0

19

Exmark 135-4058

O-RING

$5.49

$

Usually ships in 3-6 days

0

20

Exmark 125-6957

O-RING

$3.99

$

Usually ships in 3-6 days

0

21

Exmark 125-7206

BOLT

$2.49

$

Usually ships in 3-6 days

0

22

Exmark 125-7208

BOLT

$4.49

$

Usually ships in 3-6 days

0

23

Exmark 125-7211

BOLT

$3.99

$

Usually ships in 3-6 days

0

24

Exmark 125-7211

BOLT

$3.99

$

Usually ships in 3-6 days

0

25

Exmark 135-4059

BOLT

$5.49

$

Usually ships in 3-6 days

0

26

Exmark 136-8257

BOLT

$2.99

$

Usually ships in 3-6 days

0

27

Exmark 125-7229

NUT

$17.99

$

Usually ships in 3-6 days

0

28

Exmark 125-6972

COVER-FILLER

$11.99

$

Usually ships in 3-6 days

0

29

Exmark 125-7197

O-RING

$2.99

$

In Stock, only 1 left!

0
