LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 408644346 - 411294211) (Rev A) (2021) Flywheel Housing and Oil Sump Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

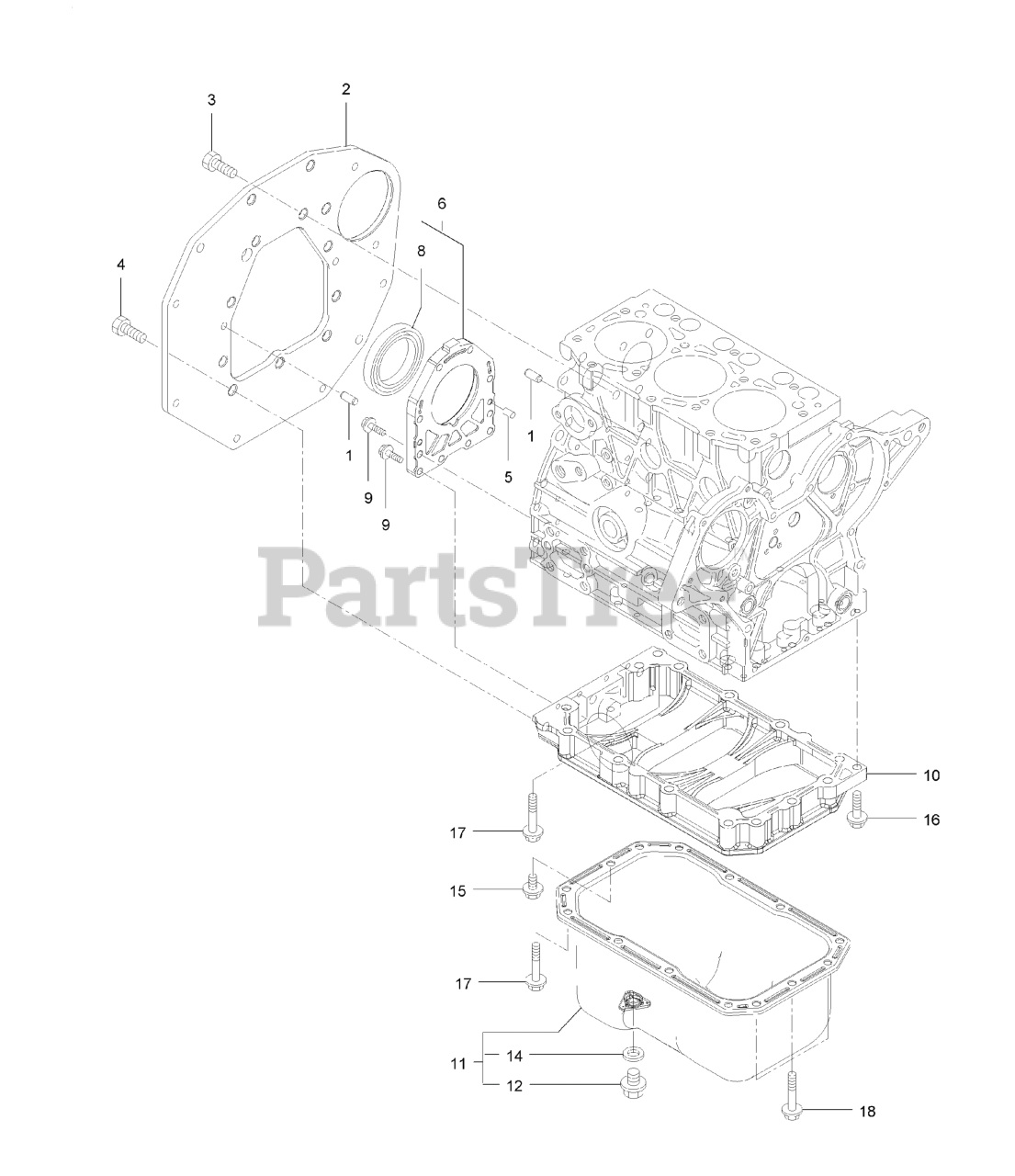

Flywheel Housing and Oil Sump Assembly Parts Diagram

  • Title

1

Exmark 125-6995

PIN

$6.99

$

Usually ships in 3-6 days

0

2

Exmark 135-4060

FLANGE-MOUNTING

$608.99

$

Usually ships in 3-6 days

0

3

Exmark 135-4061

BOLT

$3.49

$

Usually ships in 3-6 days

0

4

Exmark 125-7226

BOLT

$4.99

$

Usually ships in 3-6 days

0

5

Exmark 135-4062

PIN-PARALLEL

$6.49

$

Usually ships in 3-6 days

0

6

Exmark 135-4063

CASE ASM-OIL SEAL

$306.99

$

Usually ships in 3-6 days

0

8

Exmark 135-4064

SEAL-OIL

$63.99

$

Usually ships in 3-6 days

0

9

Exmark 135-4065

BOLT

$2.49

$

Usually ships in 3-6 days

0

10

Exmark 135-4066

SPACER-OIL PAN

$609.99

$

Usually ships in 3-6 days

0

11

Exmark 135-4067

OIL PAN ASM

$536.99

$

Usually ships in 3-6 days

0

12

Exmark 135-4068

PLUG

$7.99

$

Usually ships in 3-6 days

0

14

Exmark 136-8236

WASHER-SEAL

$4.99

$

Usually ships in 3-6 days

0

15

Exmark 125-7212

BOLT

$3.49

$

Usually ships in 3-6 days

0

16

Exmark 125-7216

BOLT

$4.49

$

Usually ships in 3-6 days

0

17

Exmark 125-7219

BOLT

$5.49

$

Usually ships in 3-6 days

0

18

Exmark 125-7220

BOLT

$5.99

$

Usually ships in 3-6 days

0
