LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 404314159 - 406294344) (2019) Hood and Console Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

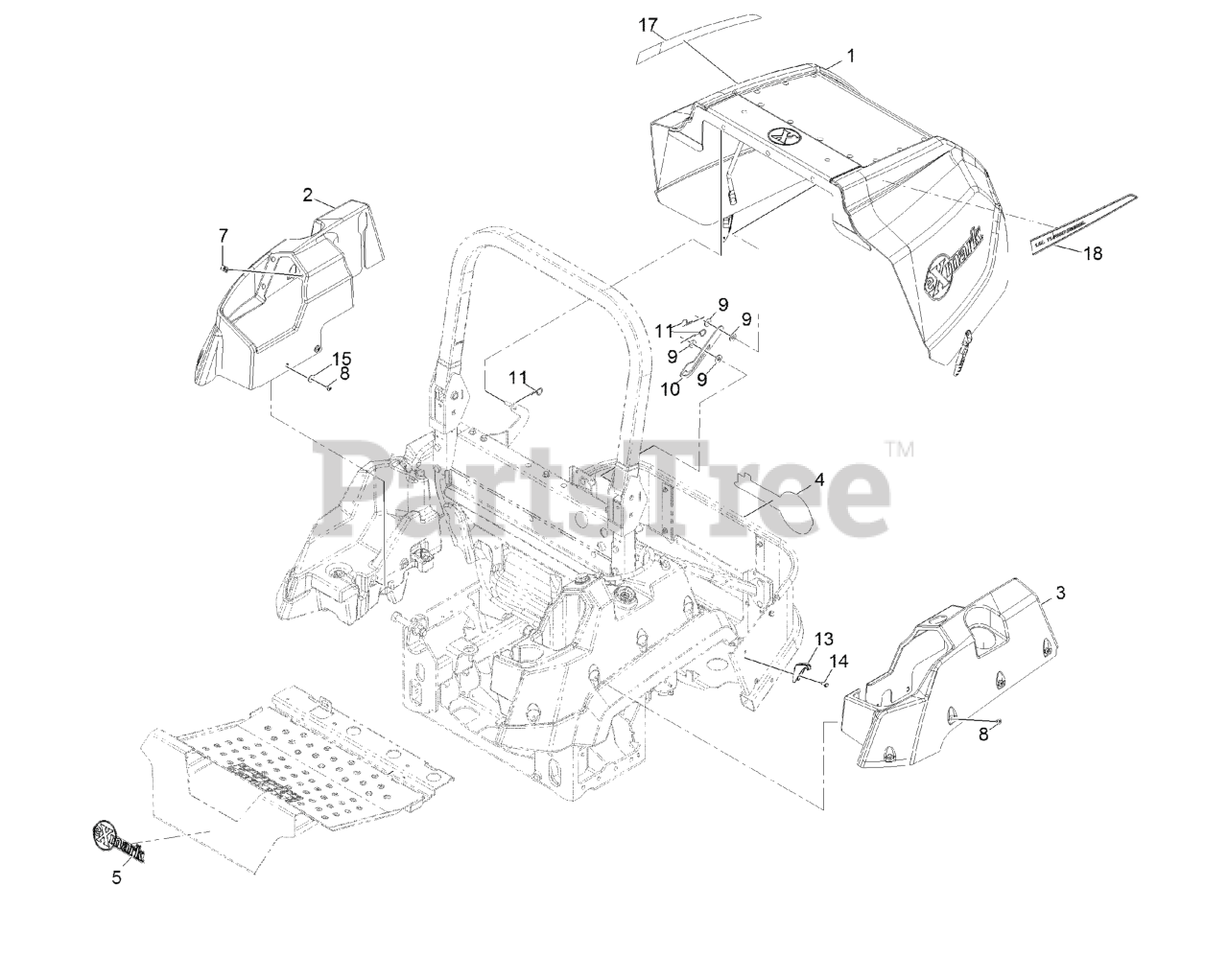

Hood and Console Assembly Parts Diagram

  • Title

1

Hood ASM

Note: Not serviced separately

$

$

Not available

2

Exmark 126-6787

COVER-TANK, RH

$380.99

$

Usually ships in 3-6 days

0

3

Exmark 126-6790

COVER-TANK, LH

$380.99

$

Usually ships in 3-6 days

0

4

Exmark 126-6992

DECAL-EXMARK

$17.99

$

Usually ships in 3-6 days

0

5

Exmark 135-2274

DECAL-EXMARK

$25.99

$

In Stock, only 4 left!

0

7

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

8

Exmark 126-8216

SCREW-TORX

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Exmark 120-9129

PROP-HOOD

$17.99

$

In Stock, only 2 left!

0

11

Exmark 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

13

Exmark 126-8672

LATCH-CATCH

$5.49

$

In Stock, Qty 15

0

14

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0

15

Exmark 3256-71

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0

17

Exmark 135-3173

DECAL-TURBO DIESEL-RH

$23.99

$

Usually ships in 3-6 days

0

18

Exmark 135-3174

DECAL-TURBO DIESEL-LH

$23.99

$

Usually ships in 3-6 days

0
