LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 404314159 - 406294344) (2019) Cylinder Head and Cover Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

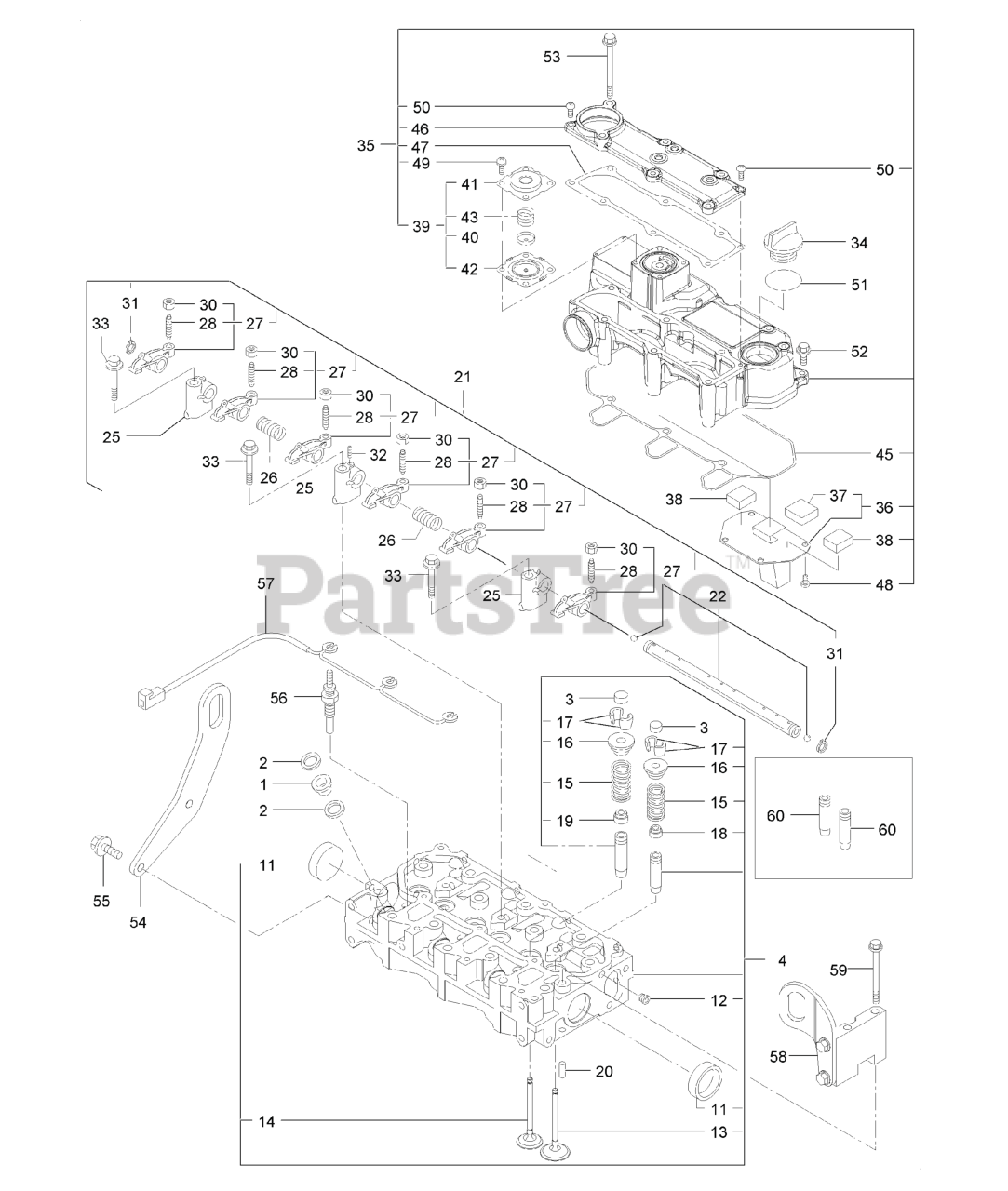

Cylinder Head and Cover Assembly Parts Diagram

  • Title

1

Exmark 135-4069

PROTECTOR-NOZZLE

$5.99

$

Usually ships in 3-6 days

0

2

Exmark 135-4070

GASKET-NOZZLE

$4.99

$

Usually ships in 3-6 days

0

3

Exmark 135-4071

CAP-VALVE

$9.49

$

Usually ships in 3-6 days

0

4

Exmark 135-4072

Head ASM-Cylinder

$3976.99

$

Usually ships in 3-6 days

0

11

Exmark 135-4073

PLUG-CUP

$11.99

$

Usually ships in 3-6 days

0

12

Exmark 133-6797

PLUG

$6.99

$

Usually ships in 3-6 days

0

13

Exmark 135-4074

VALVE-SUCTION

$51.99

$

Usually ships in 3-6 days

0

14

Exmark 135-4075

VALVE, EXHAUST 3

$51.99

$

Usually ships in 3-6 days

0

15

Exmark 135-4076

SPRING-VALVE

$16.99

$

Usually ships in 3-6 days

0

16

Exmark 125-7054

RETAINER

$25.99

$

Usually ships in 3-6 days

0

17

Exmark 125-6914

COTTER

$20.99

$

Usually ships in 3-6 days

0

18

Exmark 125-6915

SEAL-STEM, VALVE

$8.99

$

Usually ships in 3-6 days

0

19

Exmark 125-6916

SEAL-STEM, VALVE

$8.99

$

Usually ships in 3-6 days

0

20

Exmark 125-7184

PIN-SPRING

$4.49

$

Usually ships in 3-6 days

0

21

Exmark 135-4077

SUPPORT ASM-ROCKER

$1002.99

$

Usually ships in 3-6 days

0

22

Exmark 135-4078

SHAFT ASM-ROCKER

$126.99

$

Usually ships in 3-6 days

0

25

Exmark 135-4079

SUPPORT-ROCKER ARM

$79.99

$

Usually ships in 3-6 days

0

26

Exmark 135-4080

SPRING-ROCKER

$16.99

$

Usually ships in 3-6 days

0

27

Exmark 135-4081

ARM ASM-ROCKER

$108.99

$

Usually ships in 3-6 days

0

28

Exmark 125-7013

SCREW-ADJUST, VALVE

$28.99

$

Usually ships in 3-6 days

0

30

Exmark 125-7014

NUT

$6.49

$

Usually ships in 3-6 days

0

31

Exmark 135-7082

RING

$2.49

$

Usually ships in 3-6 days

0

32

Exmark 135-4083

SCREW

$2.99

$

Usually ships in 3-6 days

0

33

Exmark 125-7218

BOLT

$4.49

$

Usually ships in 3-6 days

0

34

Exmark 125-6972

COVER-FILLER

$12.99

$

Usually ships in 3-6 days

0

35

Exmark 135-4084

BONNET ASM

$780.99

$

Usually ships in 3-6 days

0

36

Exmark 135-4085

PLATE-BAFFLE

$245.99

$

Usually ships in 3-6 days

0

37

Exmark 135-4086

BAFFLE-BREATHER

$15.99

$

Usually ships in 3-6 days

0

38

Exmark 135-4086

BAFFLE-BREATHER

$15.99

$

Usually ships in 3-6 days

0

39

Exmark 135-4088

DIAPHRAGM ASM

$124.99

$

Usually ships in 3-6 days

0

40

Exmark 135-4089

PLATE-DIAPHRAGM

$15.99

$

Usually ships in 3-6 days

0

41

Exmark 135-4090

COVER-DIAPHRAGM

$51.99

$

Usually ships in 3-6 days

0

42

Exmark 135-4091

DIAPHRAGM

$35.99

$

Usually ships in 3-6 days

0

43

Exmark 135-4092

SPRING-DIAPHRAGM

$4.49

$

Usually ships in 3-6 days

0

45

Exmark 135-4093

GASKET-BONNET

$86.99

$

Usually ships in 3-6 days

0

46

Exmark 135-4094

COVER ASM-BONNET

$188.99

$

Usually ships in 3-6 days

0

47

Exmark 135-4095

GASKET

$86.99

$

Usually ships in 3-6 days

0

48

Exmark 125-7186

SCREW

$3.49

$

Usually ships in 3-6 days

0

49

Exmark 125-7186

SCREW

$3.49

$

Usually ships in 3-6 days

0

50

Exmark 127-3168

Screw

$3.49

$

Usually ships in 3-6 days

0

51

Exmark 125-7197

O-RING

$2.99

$

In Stock, only 1 left!

0

52

Exmark 125-7209

BOLT

$3.49

$

Usually ships in 3-6 days

0

53

Exmark 135-4096

BOLT

$3.49

$

Usually ships in 3-6 days

0

54

Exmark 135-4097

LIFTER-ENGINE

$48.99

$

Usually ships in 3-6 days

0

55

Exmark 125-7214

BOLT

$4.99

$

Usually ships in 3-6 days

0

56

Exmark 135-4291

PLUG-GLOW

$77.99

$

Usually ships in 3-6 days

0

57

Exmark 135-4294

CONNECTOR-GLOW PLUG

$88.99

$

Usually ships in 3-6 days

0

58

Exmark 135-4292

LIFTER ASM

$231.99

$

Usually ships in 3-6 days

0

59

Exmark 127-3178

Bolt

$

$

Currently unavailable

60

Exmark 125-6917

GUIDE

$16.99

$

Usually ships in 3-6 days

0
