LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Transmission Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

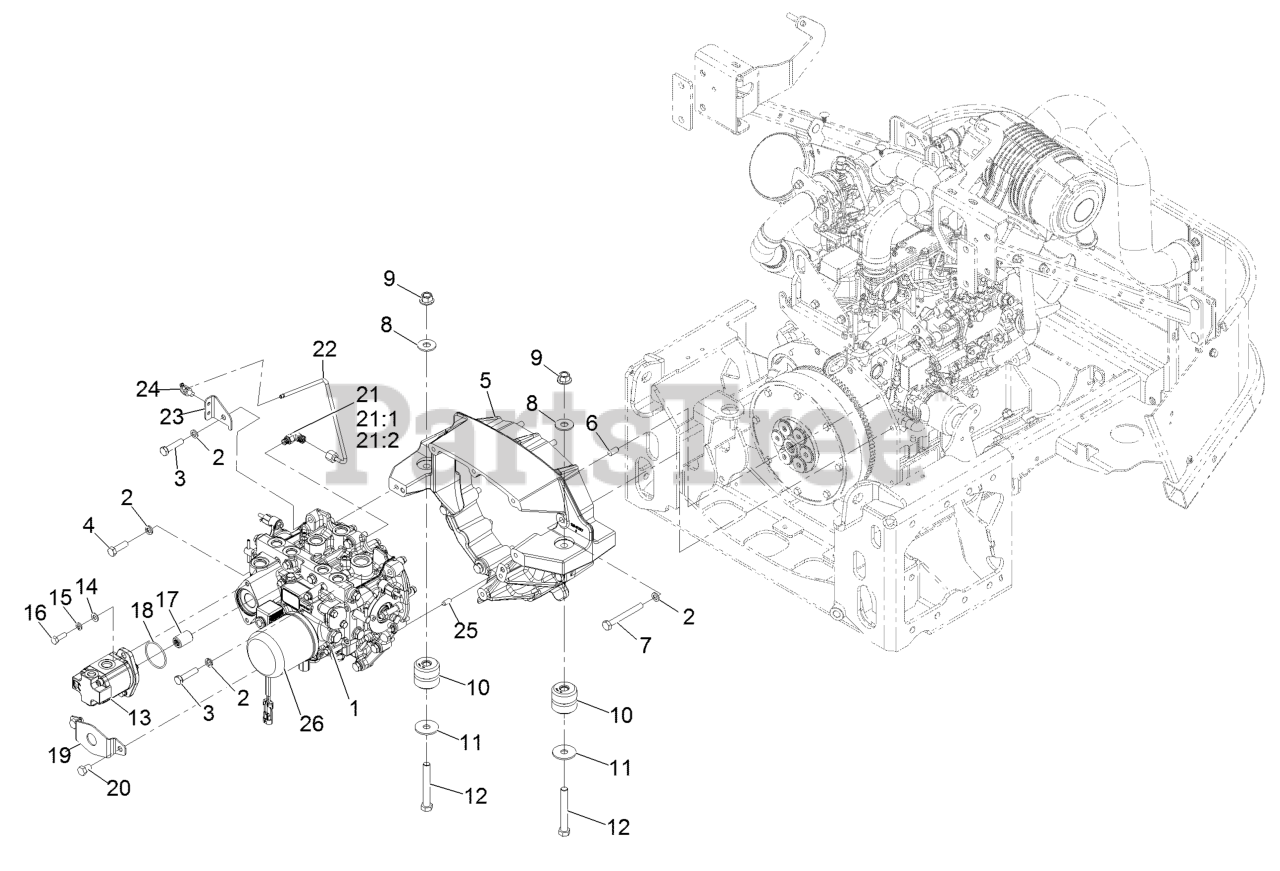

Transmission Assembly Parts Diagram

  • Title
1

Exmark 131-5510

Transmisson ASM

$7695.99

$

Usually ships in 3-6 days

0

2

Exmark 48-9590

Washer-Lock

$0.99

$

Usually ships in 3-6 days

0

3

Exmark 33115-045

Screw-HH

$5.99

$

Usually ships in 3-6 days

0

4

Exmark 33115-035

Screw-HH M10-1.5 X 25Mm

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 126-8786

Housing-Flywheel

$349.99

$

Usually ships in 3-6 days

0

6

Exmark 126-8893

Pin-Dowel

$16.99

$

Usually ships in 3-6 days

0

7

Exmark 33115-090

Screw-HH

$18.99

$

Usually ships in 3-6 days

0

8

Exmark 3256-6

Washer

$0.99

$

In Stock, Qty 20+

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

10

Exmark 126-6095

Mount-Isolator

$18.99

$

Usually ships in 3-6 days

0

11

$3.99

$

In Stock, Qty 20+

0

12

Exmark 325-15

Screw-HH

$10.99

$

Usually ships in 3-6 days

0

13

Exmark 112-9542

HYD Gear Pump ASM

$1084.99

$

Usually ships in 3-6 days

0

14

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

15

Exmark 3253-4

Washer-Lock 5/16

$0.99

$

In Stock, Qty 20+

0

16

Exmark 33114-025

Screw-HH M8-1.25 X 25Mm

$1.99

$

In Stock, Qty 20+

0

17

Exmark 108-9920

Coupler-Spline

$52.99

$

Usually ships in 3-6 days

0

18

$4.49

$

Usually ships in 3-6 days

0

19

Exmark 114-4088

Shield-Seal

$28.99

$

Usually ships in 3-6 days

0

20

Exmark 33115-016

Screw-HH

$2.49

$

Usually ships in 3-6 days

0

21

Exmark 340-132

Fitting-Elbow, 90

$27.99

$

Usually ships in 3-6 days

0

21:1

Exmark 237-78

O-Ring

$4.49

$

Usually ships in 3-6 days

0

21:2

Exmark 237-21

O-Ring

$0.99

$

In Stock, Qty 10

0

22

Exmark 126-8689

Tube ASM

$37.99

$

Usually ships in 3-6 days

0

23

Exmark 126-6806

Support-Tube

$9.49

$

Usually ships in 3-6 days

0

24

Exmark 32180-030

Clip-Tie

$5.49

$

In Stock, Qty 7

0

25

Exmark 87-1910

Pin-Dowel

$10.99

$

In Stock, only 3 left!

0

26

Exmark 135-2252

Filter-Oil, HYD

$71.99

$

In Stock, Qty 6

0
