LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Seat Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

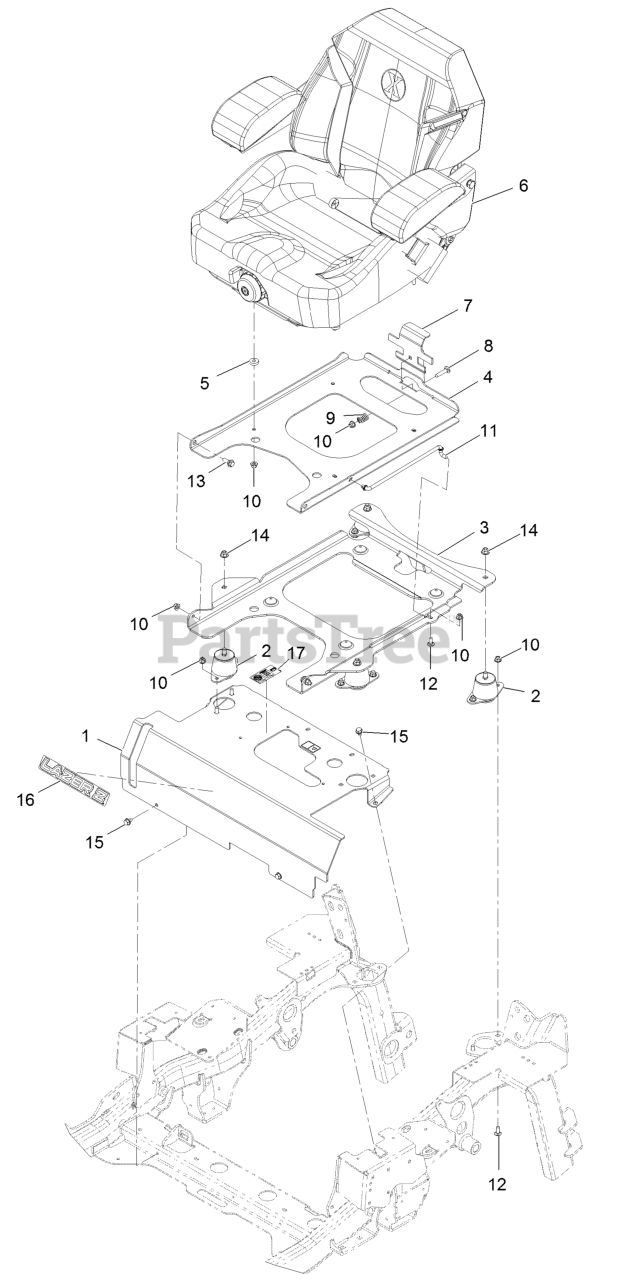

Seat Assembly Parts Diagram

  • Title

1

Exmark 126-7286

Seat Mount ASM

$164.99

$

Usually ships in 3-6 days

0

2

Exmark 109-9034

Isolator-Seat

$68.99

$

In Stock, Qty 6

0

3

Exmark 126-2701-03

Plate-Support, Tilt Seat

$192.99

$

Usually ships in 3-6 days

0

4

Exmark 126-2700-03

Plate-Frame, Seat

$106.99

$

Usually ships in 3-6 days

0

5

Exmark 26-4840

Spacer-Pin, Mounting

$6.99

$

Usually ships in 3-6 days

0

6

Exmark 116-8817

ASM-Suspension Seat

$

$

Currently unavailable

7

Exmark 126-1855

Plate, Seat Latch

$18.99

$

Usually ships in 3-6 days

0

8

Exmark 3230-4

Bolt-Carriage 5/16-18 X 1 1/2

$3.99

$

In Stock, Qty 13

0

9

Exmark 107-3017

Spring-Compression

$2.99

$

In Stock, only 1 left!

0

10

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 116-0070

Rod-Prop

$21.99

$

Usually ships in 3-6 days

0

12

Exmark 3230-23

Bolt-Carriage 5/16-18 X 3/4 Short Neck

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-1297

Screw-Shoulder

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 9266934

Screw-HWH 5/16 X 1/2 Tf

$8.99

$

In Stock, only 3 left!

0

16

Exmark 126-6574

Decal, Lazer Model

$6.49

$

In Stock, only 2 left!

0

17

Exmark 135-2838

Decal-Trans Fluid

$7.99

$

Usually ships in 3-6 days

0
