LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

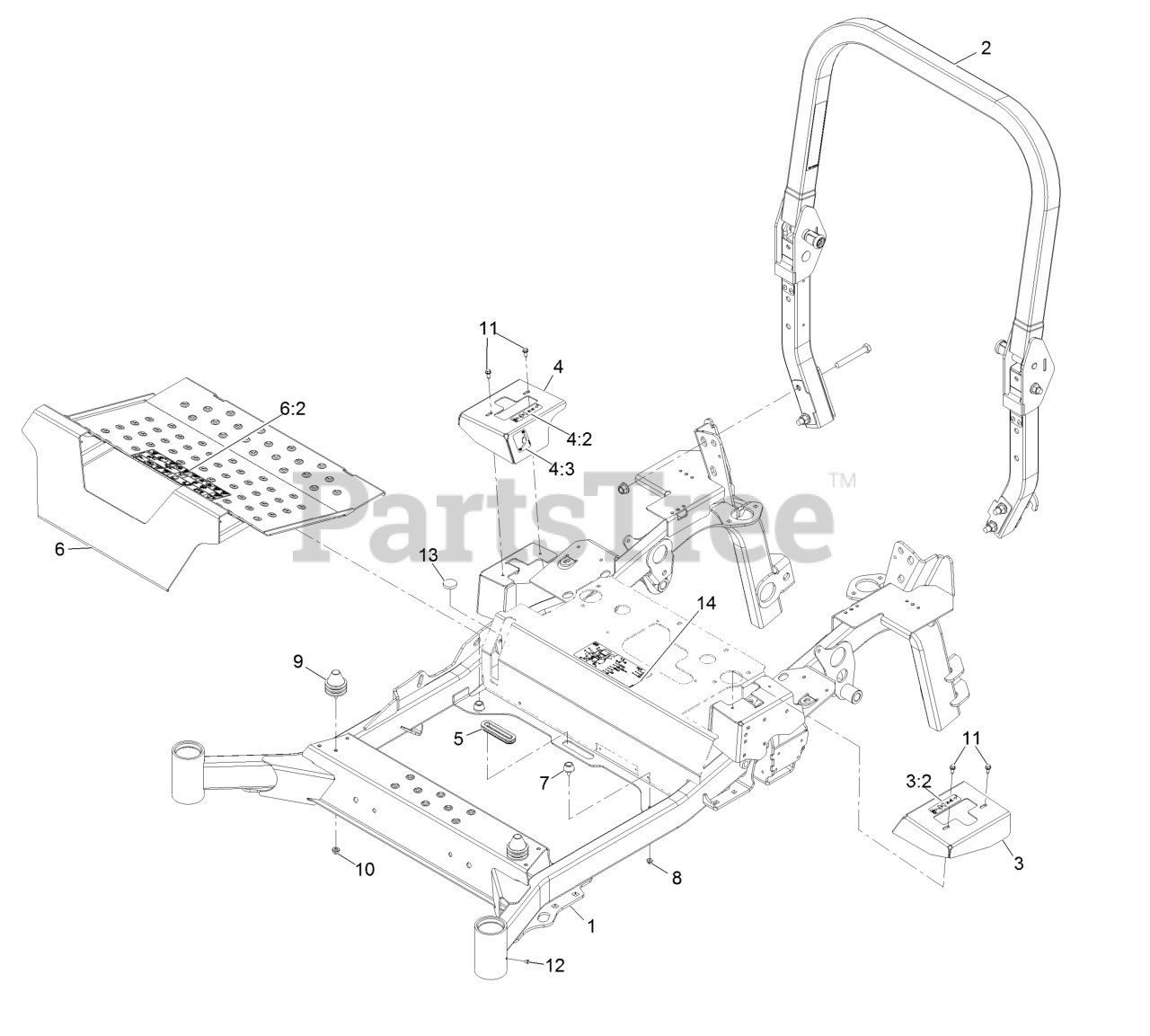

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 126-0569-01

Frame

$

$

Currently unavailable

2

Exmark 126-6138

ROPS ASM

$

$

Not available

3

Exmark 126-1821

Cover-Motion Control, LH

$64.99

$

Usually ships in 3-6 days

0

3:2

Exmark 99-8936

Decal-Control, Motion

$23.99

$

In Stock, only 1 left!

0

4

Exmark 126-1831

Cover-Motion Control, RH

$76.99

$

Usually ships in 3-6 days

0

4:2

Exmark 99-8936

Decal-Control, Motion

$23.99

$

In Stock, only 1 left!

0

4:3

Exmark 116-5988

Decal-Park Brake, CE

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 126-7065

Grommet-Rubber

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 126-9066

Pan-Floor

$369.99

$

Usually ships in 3-6 days

0

6:2

Exmark 126-8383

Decal-Danger

$9.49

$

In Stock, only 1 left!

0

7

Exmark 109-2365

Bumper-Rubber

$5.49

$

In Stock, Qty 15

0

8

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 126-5491

Isolator

$20.99

$

Usually ships in 3-6 days

0

10

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, only 2 left!

0

12

Exmark 1-811010

Plug

$5.49

$

In Stock, Qty 10

0

13

Exmark 109-9233

Bumper-Push-In, Rubber

$5.49

$

In Stock, Qty 14

0

14

Exmark 126-9279

Decal-Service Aid

$15.99

$

Usually ships in 3-6 days

0
