LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Gearbox and Mount Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

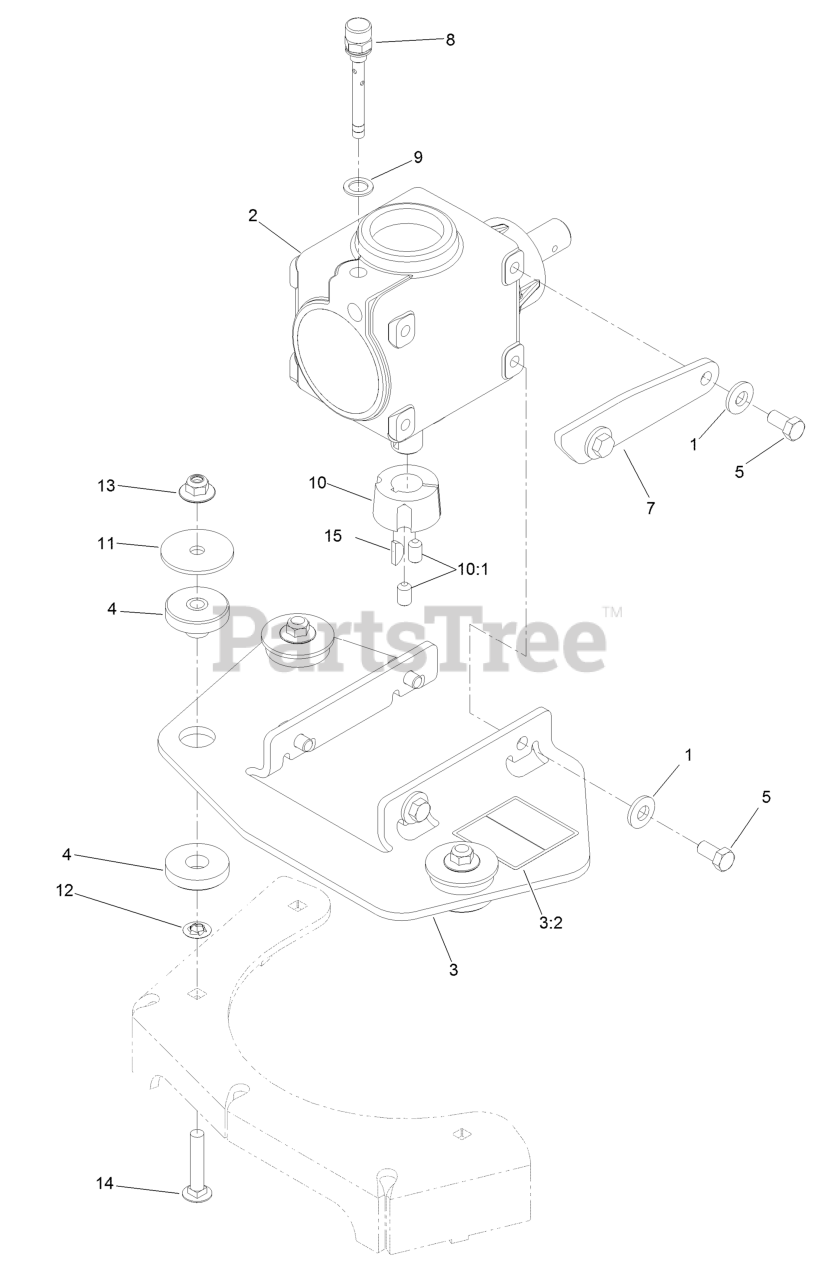

Gearbox and Mount Assembly Parts Diagram

  • Title

1

Exmark 98-5975

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

2

Exmark 130-8659

Gearbox ASM

$910.99

$

Usually ships in 3-6 days

0

3

Exmark 135-0874

Mount-Gearbox

$96.99

$

Usually ships in 3-6 days

0

3:2

Exmark 135-0679

Decal-Hazard, Entanglement

$7.49

$

Usually ships in 3-6 days

0

4

Exmark 126-3074

Mount-ISO

$17.99

$

In Stock, only 2 left!

0

5

Exmark 323-4

Screw-HH

$3.99

$

In Stock, only 1 left!

0

7

Exmark 126-3544

Stop-Gearbox

$11.99

$

Usually ships in 3-6 days

0

8

Exmark 130-8661

Plug-Breather

$39.99

$

Usually ships in 3-6 days

0

9

Exmark 130-4899

Washer

$3.49

$

Usually ships in 3-6 days

0

10

Exmark 23-1640

Bushing-Taperlock

$85.99

$

Usually ships in 3-6 days

0

10:1

Exmark 3247-4

Screw-Set

$5.99

$

Usually ships in 3-6 days

0

11

Exmark 83-1040

Washer-Flat

$4.49

$

In Stock, only 2 left!

0

12

Exmark 107-3154

Nut-Push

$1.49

$

In Stock, Qty 6

0

13

Exmark 109-6658

Nut-Flange, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 3231-6

Screw-CARR

$2.99

$

In Stock, Qty 19

0

15

Exmark 3257-5

Key-Woodruff

$5.99

$

In Stock, only 1 left!

0
