LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Flywheel Housing and Oil Sump Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

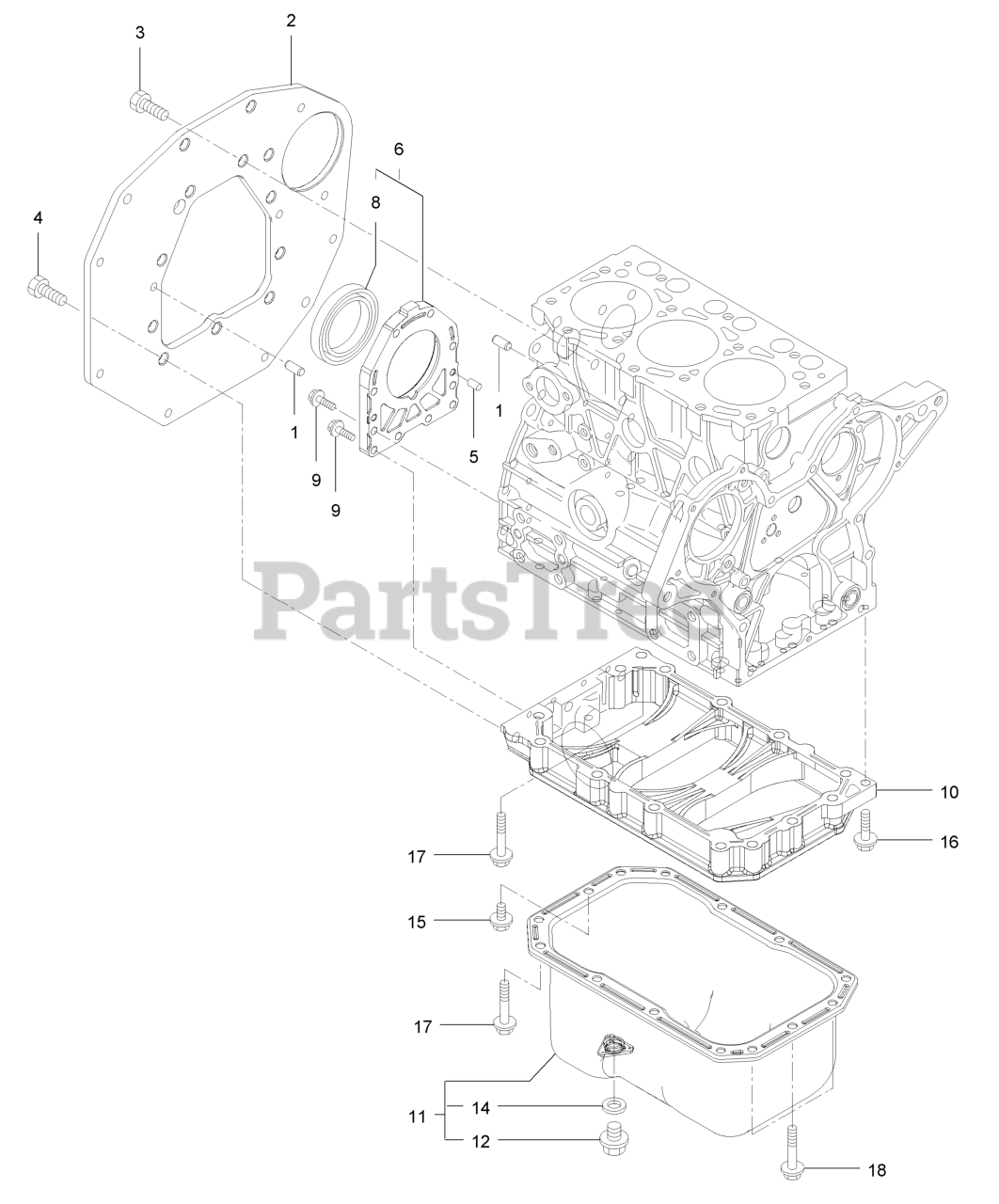

Flywheel Housing and Oil Sump Assembly Parts Diagram

  • Title

1

Exmark 125-6995

Pin

$6.99

$

Usually ships in 3-6 days

0

2

Exmark 135-4060

Flange-Mounting

$508.99

$

Usually ships in 3-6 days

0

3

Exmark 135-4061

Bolt

$3.49

$

Usually ships in 3-6 days

0

4

Exmark 125-7226

Bolt

$4.99

$

Usually ships in 3-6 days

0

5

Exmark 135-4062

Pin-Parallel

$6.49

$

Usually ships in 3-6 days

0

6

Exmark 135-4063

Case ASM-Oil Seal

$256.99

$

Usually ships in 3-6 days

0

8

Exmark 135-4064

Seal-Oil

$53.99

$

Usually ships in 3-6 days

0

9

Exmark 135-4065

Bolt

$2.99

$

Usually ships in 3-6 days

0

10

Exmark 135-4066

Spacer-Oil Pan

$511.99

$

Usually ships in 3-6 days

0

11

Exmark 135-4067

Oil Pan ASM

$451.99

$

Usually ships in 3-6 days

0

12

Exmark 135-4068

Plug

$7.99

$

Usually ships in 3-6 days

0

14

Exmark 136-8236

Washer-Seal

$4.49

$

Usually ships in 3-6 days

0

15

Exmark 125-7212

Bolt

$3.49

$

Usually ships in 3-6 days

0

16

Exmark 125-7216

Bolt

$4.49

$

Usually ships in 3-6 days

0

17

Exmark 125-7219

Bolt

$5.49

$

Usually ships in 3-6 days

0

18

Exmark 125-7220

Bolt

$5.99

$

Usually ships in 3-6 days

0
