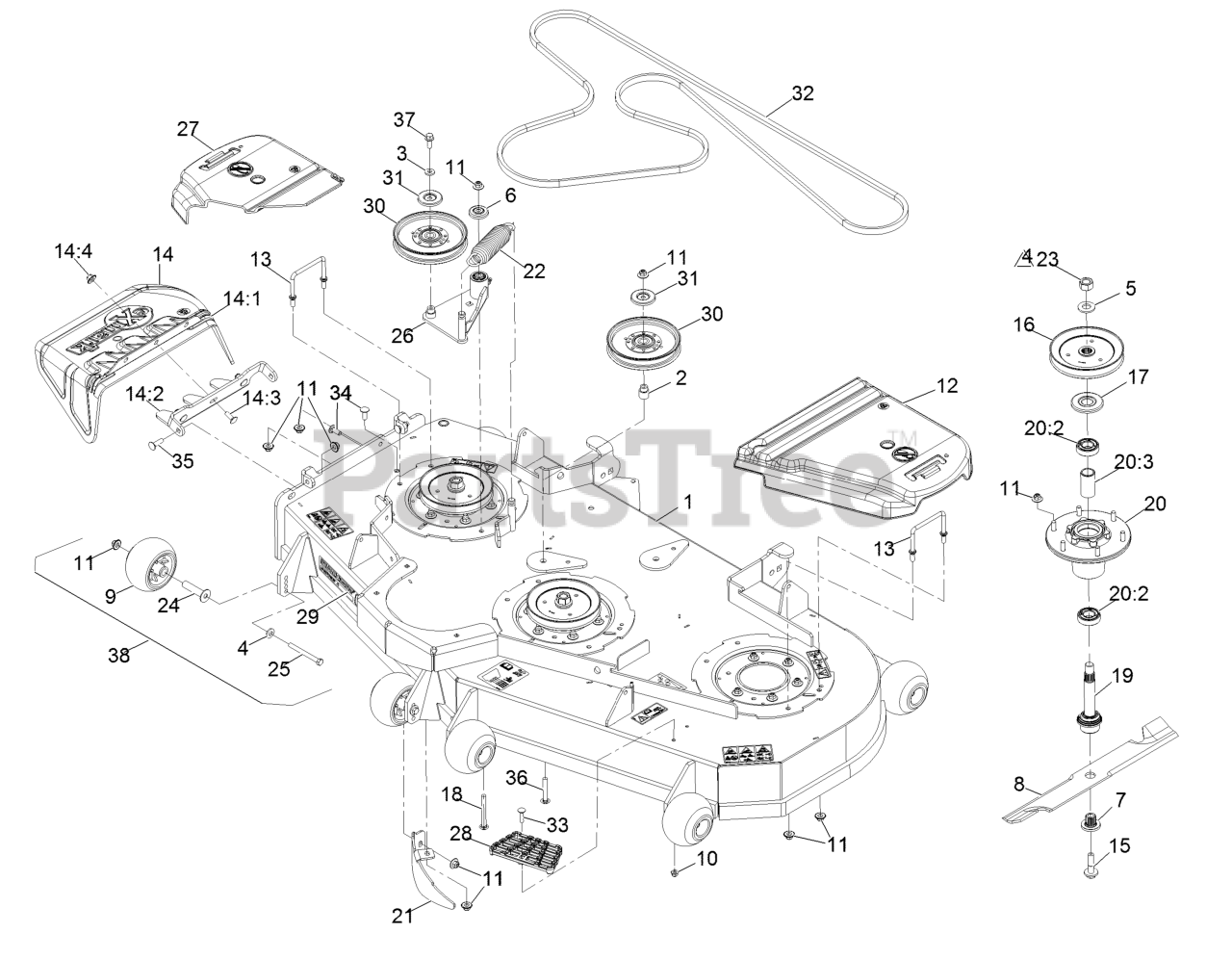

LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-0909

Deck ASM, W/Decals 60

$2917.99

$

Usually ships in 3-6 days

0

2

Exmark 1-633456

Bushing, Idler

$4.99

$

In Stock, Qty 20+

0

3

Exmark 43-0940

Spacer

$5.49

$

In Stock, Qty 20+

0

4

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

5

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 20+

0

6

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 20+

0

7

Exmark 103-3037

Bushing, Splined

$22.99

$

In Stock, Qty 20+

0

8

Exmark 116-5174

Blade-Extreme 2, 20.50"

$

$

Currently unavailable

8

Exmark 103-6403

Blade, Notched
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

8

Exmark 103-6393

Blade, Mulching
(Superseded to 103-6393-S)

$30.99

$

In Stock, Qty 20+

0

8

Exmark 103-6388

Blade, Low Lift
(Superseded to 103-6388-S)

$37.99

$

In Stock, Qty 20+

0

8

Exmark 103-6383

Blade, Solid
(Superseded to 103-6383-S)

$34.99

$

In Stock, Qty 20+

0

9

Exmark 103-8415

Roller-Anti-Scalp

$23.99

$

In Stock, Qty 20+

0

10

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 109-6938

Cover-Belt, LH

$96.99

$

In Stock, Qty 20+

0

13

Exmark 109-6982

Wireform-Cover

$11.99

$

In Stock, Qty 10

0

14

Exmark 109-7188

ASM,Discharge Chute

$115.99

$

In Stock, only 3 left!

0

14:1

Exmark 109-2738

Chute, Discharge

$81.99

$

In Stock, Qty 20+

0

14:2

Exmark 109-8675-01

Bracket,Discharge Chute

$54.99

$

In Stock, only 1 left!

0

14:3

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

14:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

16

Exmark 116-0675

Sheave,Blade Drive 6.50

$94.99

$

In Stock, Qty 20+

0

17

Exmark 116-1286

Guard,Bearing Top .989

$5.49

$

In Stock, Qty 20+

0

18

Exmark 116-1502

Bolt-Carriage Shoulder 3/8-16 X 3 1/2

$7.99

$

In Stock, Qty 14

0

19

Exmark 116-3341

ASM-Spindle And Seal

$89.99

$

In Stock, Qty 20+

0

20

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$158.99

$

In Stock, Qty 20+

0

20:2

Exmark 116-0720

Bearing-Ball

$22.99

$

In Stock, Qty 20+

0

20:3

Exmark 116-3312

Spacer-Bearing

$9.49

$

In Stock, Qty 5

0

21

Exmark 116-5614-01

Dogleg - Lz60

$62.99

$

Usually ships in 3-6 days

0

22

Exmark 116-6317

Spring-Extension

$28.99

$

In Stock, Qty 20+

0

23

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 20+

0

24

Exmark 116-8131

Axle, Roller

$12.99

$

In Stock, Qty 20+

0

25

Exmark 116-9362

Screw-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

26

Exmark 126-2585

Idler Arm ASM

$192.99

$

In Stock, only 1 left!

0

27

Exmark 126-3182

Beltshield-Rt, 60

$129.99

$

Usually ships in 3-6 days

0

28

Exmark 126-4781-03

Step-Deck

$28.99

$

In Stock, only 1 left!

0

29

Exmark 126-6589

Decal, 604

$6.49

$

In Stock, only 3 left!

0

30

Exmark 126-7685

Idler-Pulley

$62.99

$

In Stock, Qty 20+

0

31

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, Qty 20+

0

32

Exmark 126-8047

Belt-V

$157.99

$

Usually ships in 3-6 days

0

33

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

34

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

35

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

36

Exmark 3231-44

Bolt-Carriage 3/8-16 X 2 1/2

$2.99

$

In Stock, Qty 20+

0

37

Exmark 3234-11

Screw-HH Flg 3/8-16 X 1

$4.49

$

In Stock, Qty 20+

0

38

Exmark 116-9981

Kit, Anti-Scalp Roller

$52.99

$

In Stock, Qty 20+

0
