LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Crankshaft and Piston Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

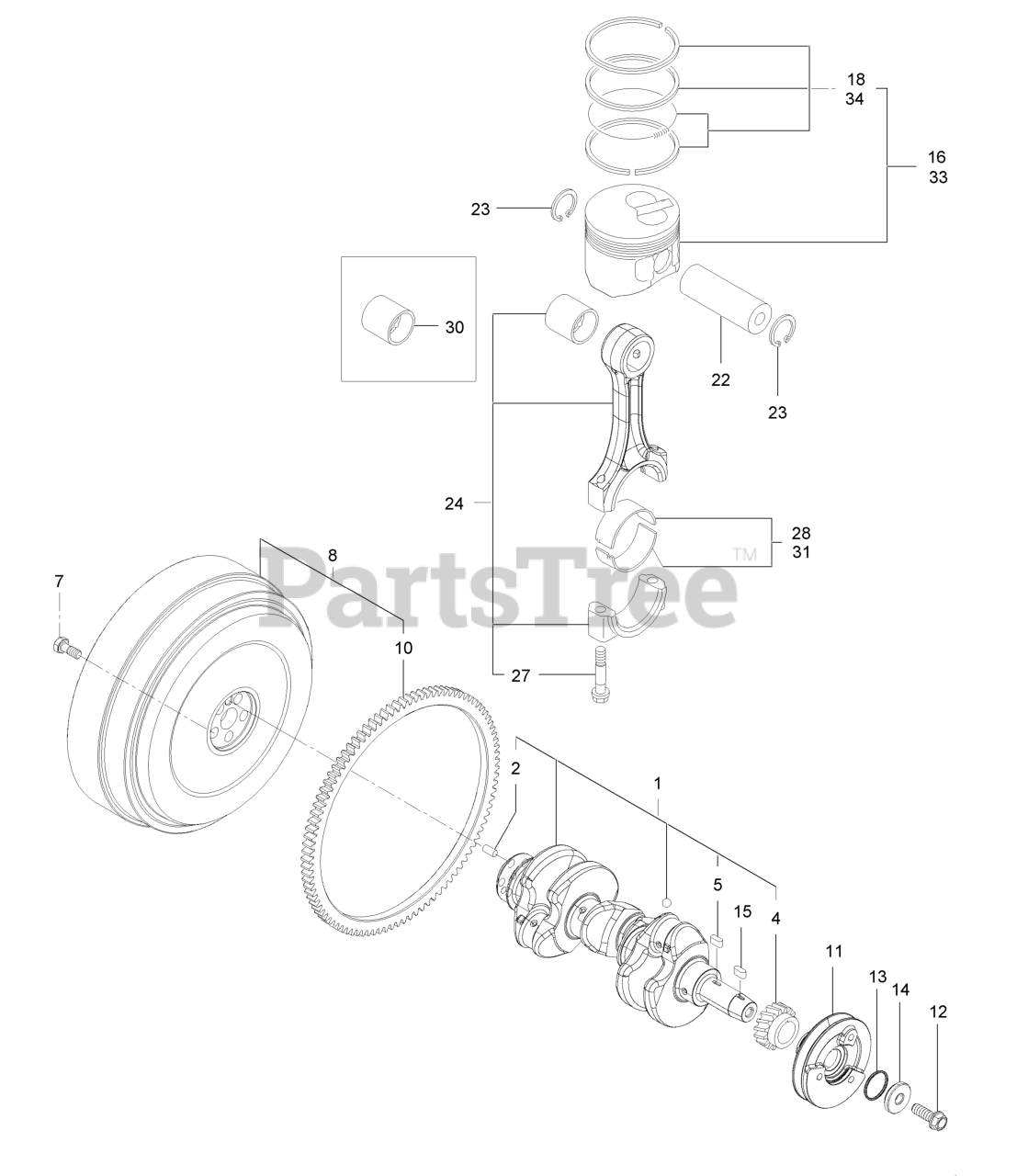

Crankshaft and Piston Assembly Parts Diagram

  • Title

1

Exmark 135-4152

Crankshaft ASM

$2246.99

$

Usually ships in 3-6 days

0

2

Exmark 125-6995

Pin

$6.99

$

Usually ships in 3-6 days

0

4

Exmark 135-4153

Gear-Crankshaft

$252.99

$

Usually ships in 3-6 days

0

5

Exmark 135-4154

Key

$3.49

$

Usually ships in 3-6 days

0

7

Exmark 135-4155

Bolt, Flywheel 5

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 135-4156

Flywheel ASM

$2657.99

$

Usually ships in 3-6 days

0

10

Exmark 135-4157

Gear-Ring

$329.99

$

Usually ships in 3-6 days

0

11

Exmark 135-4158

V-Pulley, Crankshaft 1

$481.99

$

Usually ships in 3-6 days

0

12

Exmark 135-4159

Bolt, Flange 12X1.25 1

$12.99

$

Usually ships in 3-6 days

0

13

Exmark 135-4160

Gasket-Washer

$3.49

$

Usually ships in 3-6 days

0

14

Exmark 135-4161

Washer

$52.99

$

Usually ships in 3-6 days

0

15

Exmark 135-4154

Key

$3.49

$

Usually ships in 3-6 days

0

16

Exmark 135-4163

Piston ASM

$304.99

$

Usually ships in 3-6 days

0

18

Exmark 135-4164

Ring ASM

$132.99

$

Usually ships in 3-6 days

0

22

Exmark 135-4165

Pin-Piston

$27.99

$

Usually ships in 3-6 days

0

23

Exmark 135-4166

Ring

$3.49

$

Usually ships in 3-6 days

0

24

Exmark 135-4167

Rod ASM-Connecting

$451.99

$

Usually ships in 3-6 days

0

27

Exmark 135-4168

Bolt-Connecting Rod

$15.99

$

Usually ships in 3-6 days

0

28

Exmark 135-4169

Bearing-Crank Pin

$35.99

$

Usually ships in 3-6 days

0

30

Exmark 135-4170

Bearing-Piston Pin

$15.99

$

Usually ships in 3-6 days

0

31

Exmark 135-4171

119717-23611

$68.99

$

Usually ships in 3-6 days

0

33

Exmark 135-4172

Piston ASM

$445.99

$

Usually ships in 3-6 days

0

34

Exmark 135-4173

Ring ASM

$166.99

$

Usually ships in 3-6 days

0
