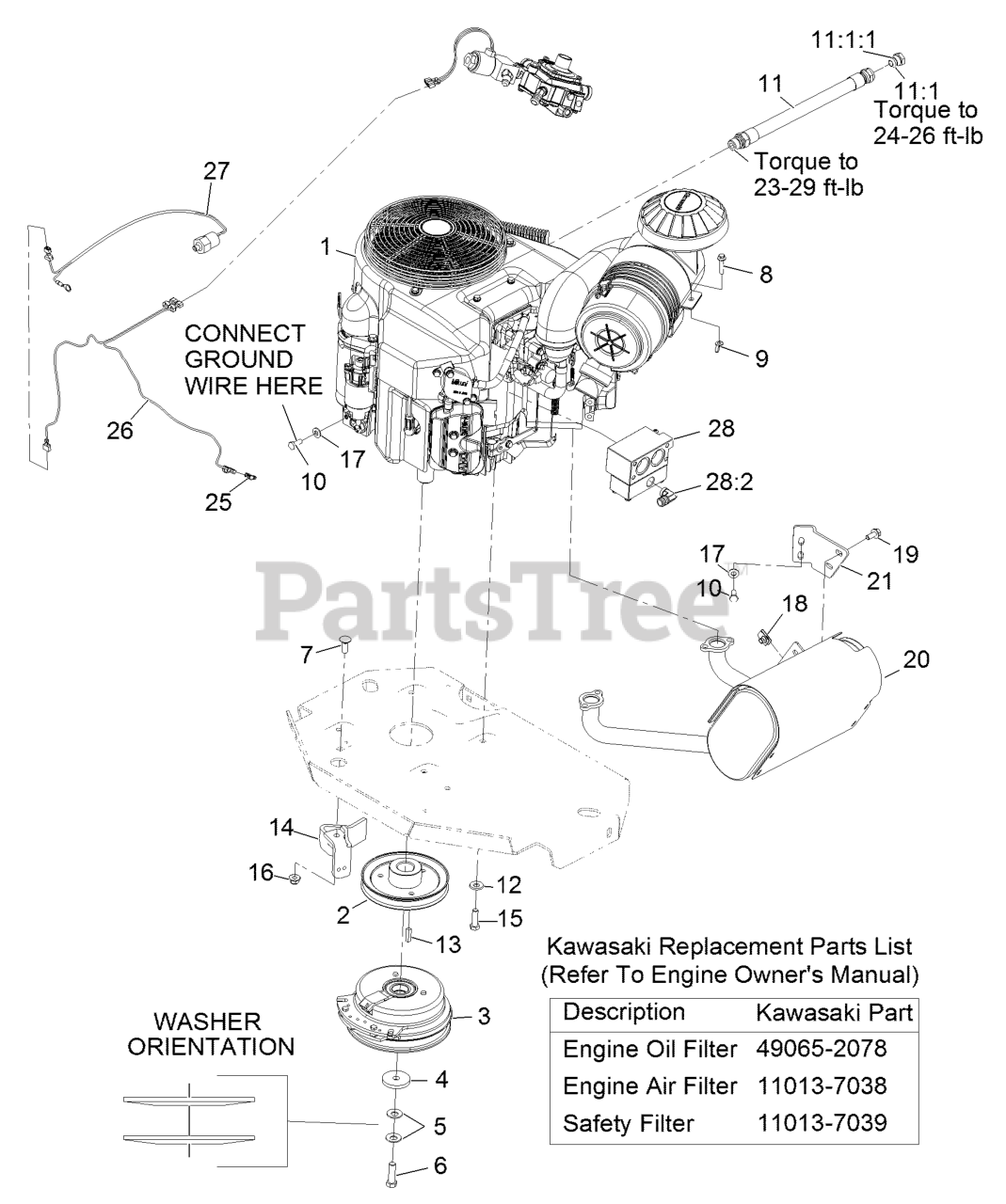

LZS801PKA604 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kawasaki Propane (SN: 312000000 - 312999999) (2012) Engine Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kawasaki Propane

Engine Assembly Parts Diagram

  • Title
1

Engine-Kawasaki, Fs481v

Note: Not serviced separately, Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Exmark 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

Usually ships in 3-6 days

0

3

Exmark 116-1620

CLUTCH KIT

$359.99

$

In Stock, only 4 left!

0

4

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 9

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

6

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 7

0

7

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

8

Exmark 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 1-803038

NUT-WING

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

$37.99

$

In Stock, Qty 5

0

11:1

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

11:1:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

15

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

18

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 6

0

20

Exmark 116-1712

MUFFLER

$216.99

$

Usually ships in 3-6 days

0

21

Exmark 116-0203

BRACKET-MUFFLER

$34.99

$

Usually ships in 3-6 days

0

25

Exmark 32170-079

TERMINAL-TAB

$

$

Not available

26

Exmark 116-2857

WIRE HARNESS

$163.99

$

Usually ships in 3-6 days

0

27

Exmark 116-2842

126-1778
(Superseded to 126-1778)

$362.99

$

In Stock, only 4 left!

0

28

Exmark 116-5639

LPG MIXER ASM

$2207.99

$

Usually ships in 3-6 days

0

28:2

$

$

Not available
