LZS801KA524SS - Exmark 52" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX801V (SN: 312000000 - 312999999) (2012) Seat W/Tracks Assembly No. 116-6187 Parts Diagram

52" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX801V

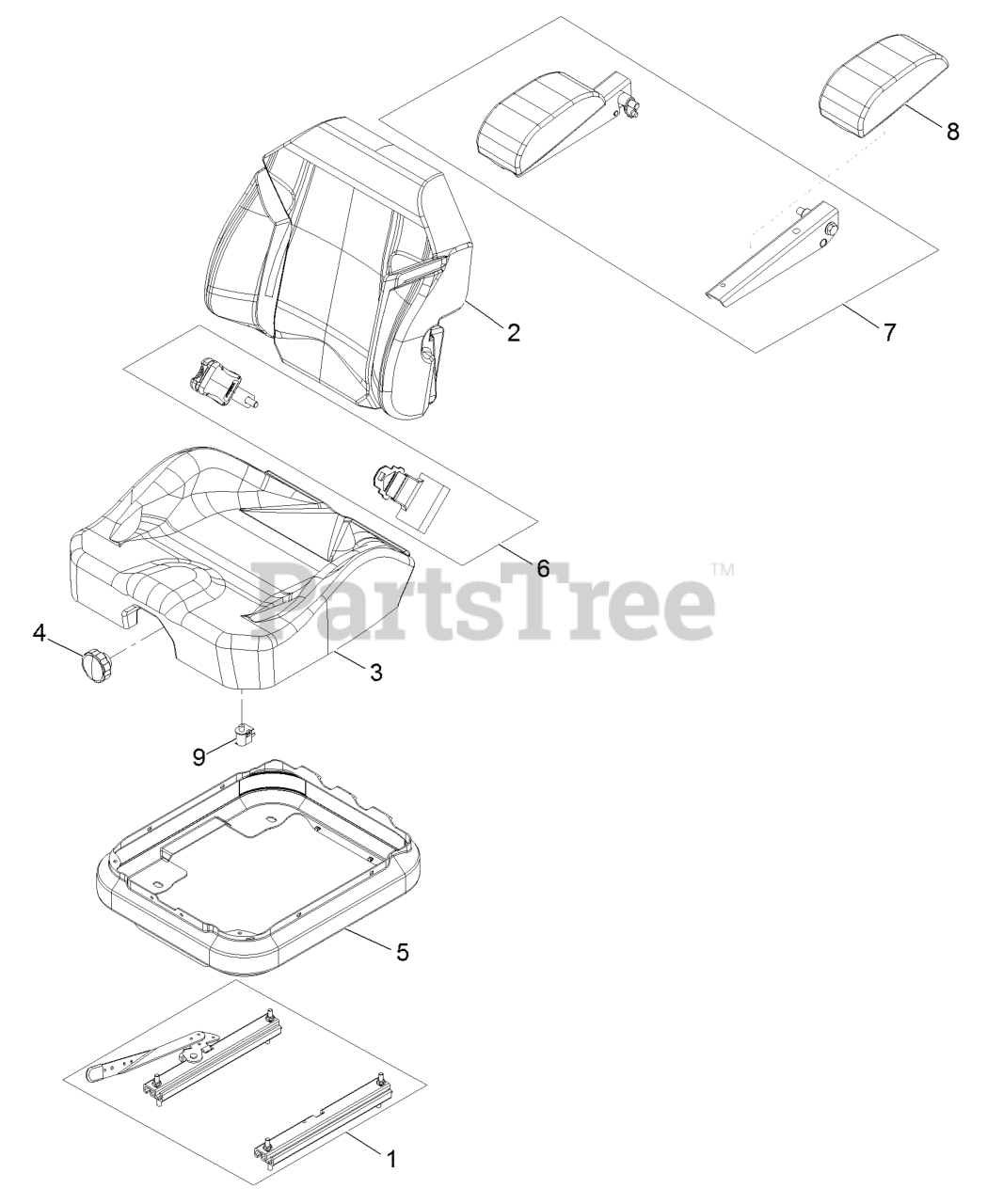

Seat W/Tracks Assembly No. 116-6187 Parts Diagram

1

Exmark 116-5655

SEAT TRACK SET

$167.99

$

Usually ships in 3-6 days

0

2

Exmark 116-5656

COVER-BACK 310951VN476

$195.99

$

Usually ships in 3-6 days

0

3

Exmark 116-5657

COVER-CUSHION 310952VN476

$195.99

$

Usually ships in 3-6 days

0

4

Exmark 116-5658

KNOB-ADJUSTER

$32.99

$

Usually ships in 3-6 days

0

5

Exmark 116-5659

COVER-SUSPENSION, BELLOWS

$92.99

$

Usually ships in 3-6 days

0

6

Exmark 109-9805

SEAT BELT KIT

$311.99

$

Usually ships in 3-6 days

0

7

Exmark 109-9803

ARM REST SET

$493.99

$

Usually ships in 3-6 days

0

8

Exmark 109-9802

ARM REST PAD SET

$246.99

$

In Stock, only 4 left!

0

9

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0
