LZS801KA524 - Exmark 52" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX801V (SN: 313000000 - 313999999) (2013) Seat Assembly Parts Diagram

52" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX801V

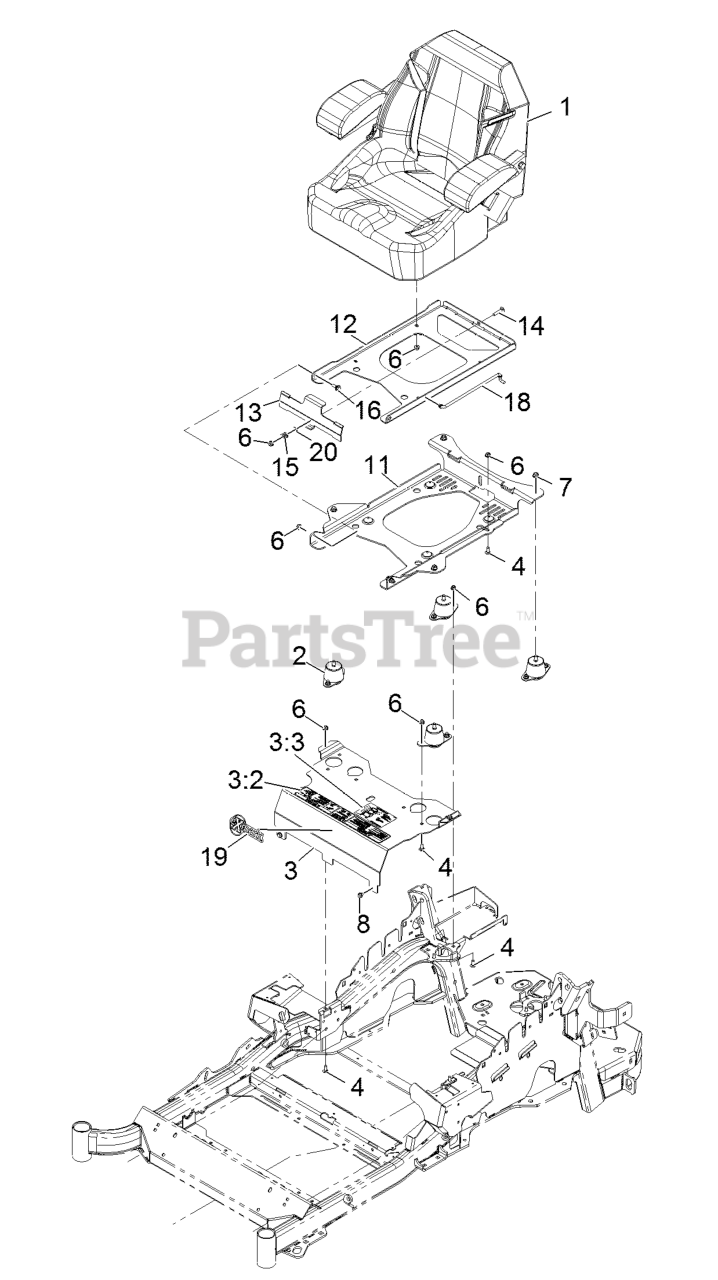

Seat Assembly Parts Diagram

  • Title

1

Exmark 116-4474

126-5801
(Superseded to 126-5801)

$1339.99

$

Usually ships in 3-6 days

0

2

Exmark 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

3

Exmark 116-2323

MOUNT-SEAT

$241.99

$

Usually ships in 3-6 days

0

3:2

Exmark 109-7069

DECAL-CONSOLE

$17.99

$

In Stock, only 1 left!

0

3:3

Exmark 116-0211

DECAL-SERVICE AID

$12.99

$

In Stock, only 1 left!

0

4

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

11

Exmark 116-3860-03

PLATE-TILT, SEAT SUPPORT

$190.99

$

Usually ships in 3-6 days

0

12

Exmark 116-3859-03

PLATE-FRAME, SEAT

$126.99

$

Usually ships in 3-6 days

0

13

Exmark 109-9881-03

PLATE-LATCH, SEAT

$19.99

$

Usually ships in 3-6 days

0

14

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

15

Exmark 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

16

Exmark 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

18

Exmark 116-0070

ROD-PROP

$21.99

$

Usually ships in 3-6 days

0

19

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 9

0

20

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
