LZS801GKA604A1 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Seat Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX

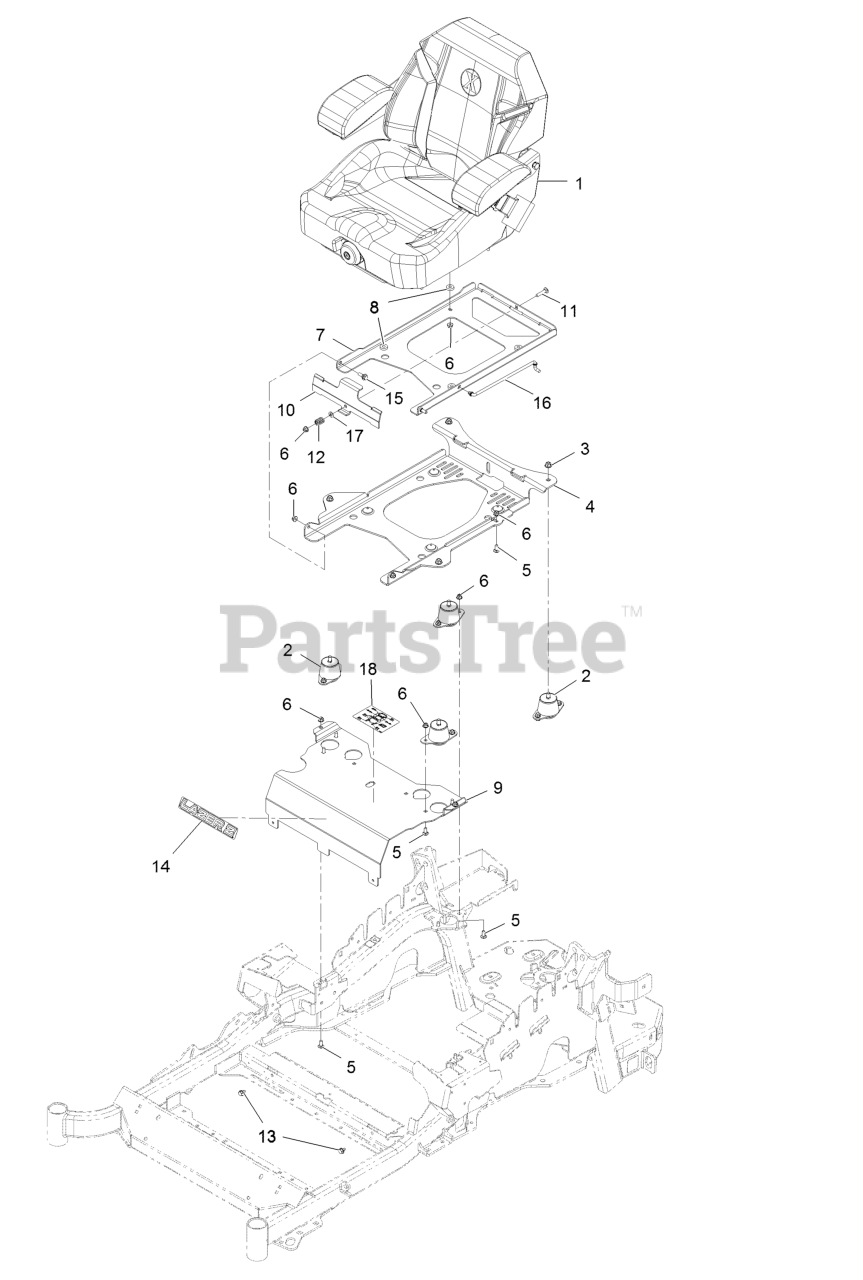

Seat Assembly Parts Diagram

  • Title

1

Exmark 116-8912

Kit-Suspension Seat

$1612.99

$

Usually ships in 3-6 days

0

2

Exmark 109-9034

Isolator-Seat

$68.99

$

In Stock, Qty 6

0

3

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 116-3860-03

Plate-Tilt, Seat Support

$190.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-23

Bolt-Carriage 5/16-18 X 3/4 Short Neck

$1.49

$

In Stock, Qty 20+

0

6

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

7

Exmark 116-3859-03

Plate-Frame, Seat

$126.99

$

Usually ships in 3-6 days

0

8

Exmark 26-4840

Spacer-Pin, Mounting

$6.49

$

Usually ships in 3-6 days

0

9

Exmark 116-2130-03

Panel-Front, Seat Mount
(Superseded to 116-2323)

$241.99

$

Usually ships in 3-6 days

0

10

Exmark 109-9881-03

Plate-Latch, Seat

$19.99

$

Usually ships in 3-6 days

0

11

Exmark 3230-4

Bolt-Carriage 5/16-18 X 1 1/2

$3.99

$

In Stock, Qty 6

0

12

Exmark 107-3017

Spring-Compression

$2.99

$

In Stock, only 1 left!

0

13

Exmark 9266934

Screw-HWH 5/16 X 1/2 Tf

$8.99

$

In Stock, only 2 left!

0

14

Exmark 126-6574

Decal, Lazer Model

$5.99

$

In Stock, only 2 left!

0

15

Exmark 116-1297

Screw-Shoulder

$5.49

$

Usually ships in 3-6 days

0

16

Exmark 116-0070

Rod-Prop

$21.99

$

Usually ships in 3-6 days

0

17

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

18

Exmark 114-4465

Decal-Service Aid

$29.99

$

Usually ships in 3-6 days

0
