LZS801GKA524A2 - Exmark 52" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Fuel System Assembly Parts Diagram

52" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX

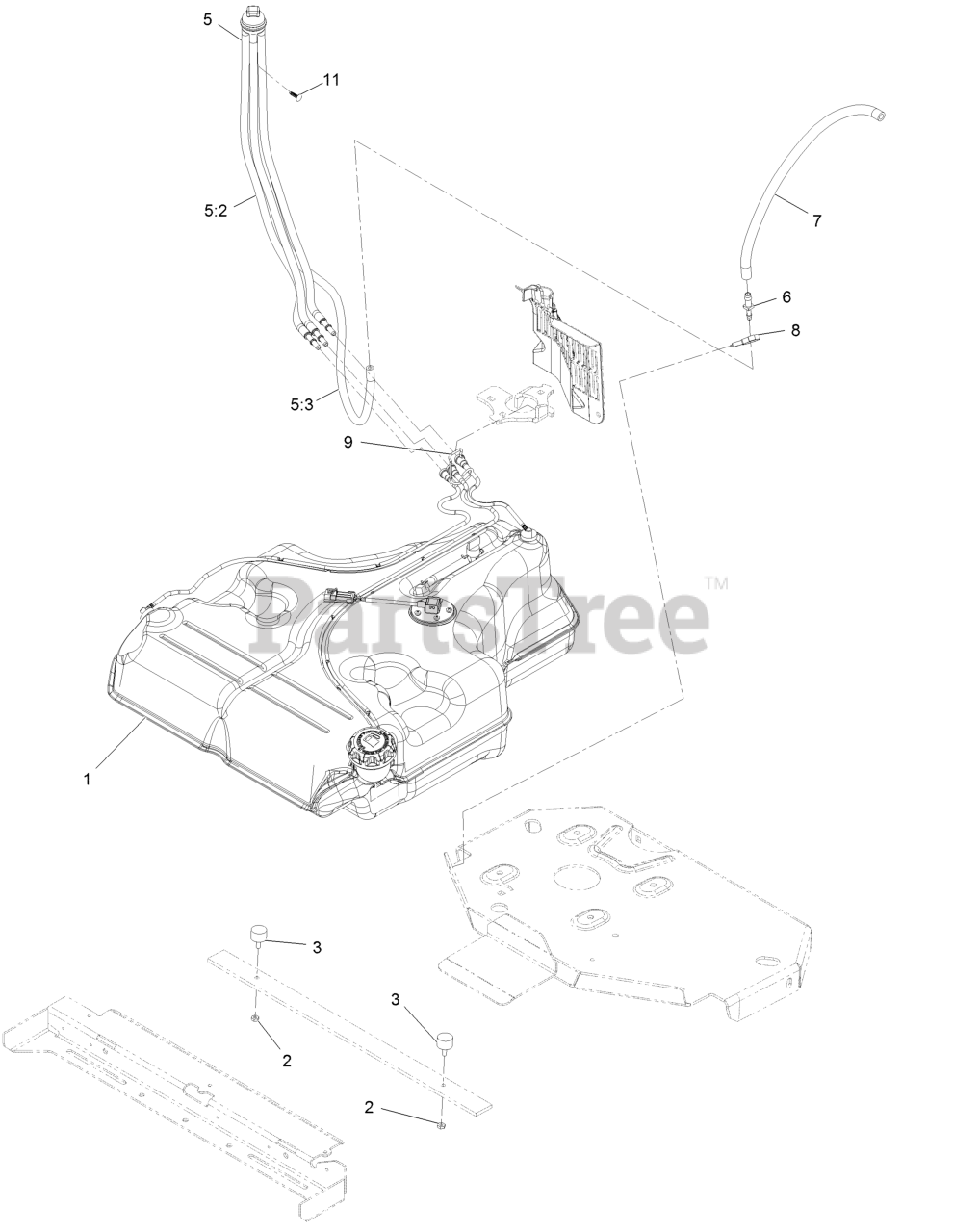

Fuel System Assembly Parts Diagram

  • Title
1

Exmark 135-0643

Fuel Tank ASM

$702.99

$

Usually ships in 3-6 days

0

2

Exmark 3218-1

Nut-Jam 1/4-20

$1.49

$

In Stock, only 4 left!

0

3

$14.99

$

Usually ships in 3-6 days

0

5

Exmark 127-0583

Fuel Manifold Vent ASM

$70.99

$

Usually ships in 3-6 days

0

5:2

Exmark 109-0302

Hose-Fuel Line 24"

$12.99

$

In Stock, Qty 5

0

5:3

Exmark 108-5376

Hose-Fuel

$43.99

$

In Stock, only 1 left!

0

6

Exmark 116-5072

Fitting-Straight

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 116-5087

Hose-Fuel

$19.99

$

Usually ships in 3-6 days

0

8

Exmark 105-1853

Clamp-Hose

$5.49

$

In Stock, only 4 left!

0

9

Exmark 116-6005

Retainer-Line, Vapor

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 125-8067

Plug-Plastic

$0.99

$

Usually ships in 3-6 days

0
