LZS801CKA72RA1 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, Kawasaki (SN: 411294212 - 413950473) (Rev A) (2022) Main Frame Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, Kawasaki

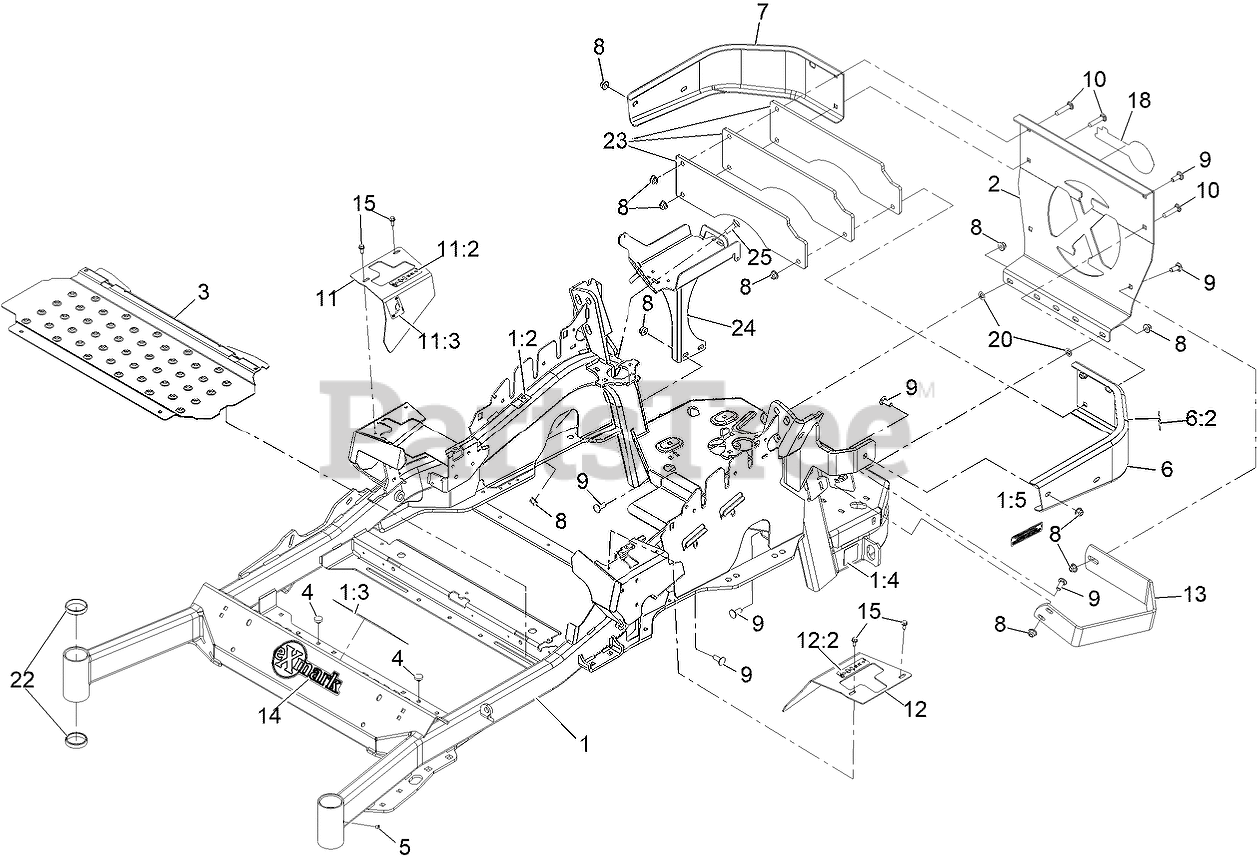

Main Frame Assembly Parts Diagram

  • Title
1

Exmark 142-7280

Mainframe Service ASM -Rd

$3079.99

$

Usually ships in 3-6 days

0

1:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

1:3

Exmark 132-0871

DECAL-DANGER

$9.49

$

In Stock, only 2 left!

0

1:4

Exmark 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.49

$

In Stock, only 1 left!

0

1:5

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$163.99

$

Usually ships in 3-6 days

0

3

$108.99

$

Usually ships in 3-6 days

0

4

$6.49

$

In Stock, Qty 11

0

$5.49

$

In Stock, Qty 11

0

6

Exmark 116-0180

LH BUMPER ASM

$144.99

$

Usually ships in 3-6 days

0

6:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

7

Exmark 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10

Exmark 3231-29

SCREW-CARR

$7.49

$

In Stock, only 2 left!

0

11

Exmark 116-5899

RH MOTION CONTROL COVER ASM

$49.99

$

Usually ships in 3-6 days

0

11:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

11:3

Exmark 116-5988

DECAL-PARK BRAKE, CE

$14.99

$

In Stock, only 1 left!

0

12

Exmark 116-0580

LH MOTION CONTROL COVER ASM

$28.99

$

Usually ships in 3-6 days

0

12:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

13

Exmark 126-2067-03

GUARD-MUFFLER

$60.99

$

Usually ships in 3-6 days

0

14

Exmark 135-2274

DECAL-EXMARK

$25.99

$

In Stock, only 4 left!

0

15

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 6

0

18

Exmark 126-6877

DECAL, EXMARK LOGO

$7.49

$

In Stock, Qty 10

0

20

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

22

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

23

Exmark 126-4772-03

PLATE-WEIGHT, 6 LB

$50.99

$

Usually ships in 3-6 days

0

24

Exmark 142-6404-01

BATTERY MOUNT ASM

$68.99

$

Usually ships in 3-6 days

0

25

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0
