LZS801CKA60RA1 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kawasaki (SN: 413950474 - 999999999) (Rev A) (2023) Fuel Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kawasaki

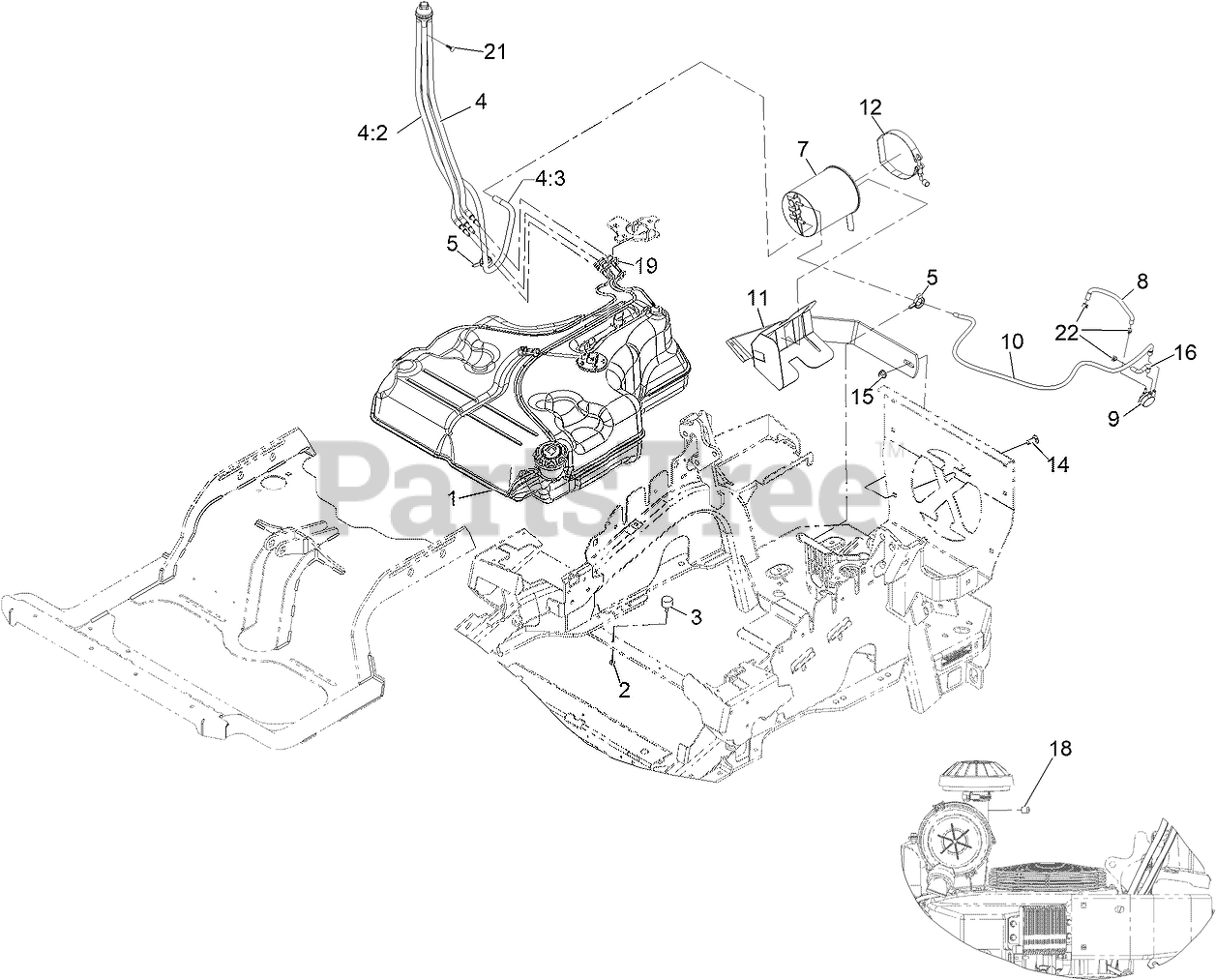

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-0643

FUEL TANK ASM

$821.99

$

Usually ships in 3-6 days

0

2

Exmark 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Exmark 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 127-0583

FUEL MANIFOLD VENT ASM

$75.99

$

Usually ships in 3-6 days

0

4:2

Exmark 109-0302

HOSE-FUEL

$13.99

$

In Stock, only 3 left!

0

4:3

Exmark 108-5376

HOSE-FUEL

$45.99

$

In Stock, only 1 left!

0

5

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

7

Exmark 116-1442

CANISTER-CARBON, 1200CC

$169.99

$

Usually ships in 3-6 days

0

8

Exmark 135-3415

HOSE-VENT,FORMED

$9.99

$

Usually ships in 3-6 days

0

9

Exmark 116-2232

VALVE-CONTROL, VACUUM

$35.99

$

In Stock, only 3 left!

0

10

Exmark 135-3417

HOSE,VENT,FORMED

$16.99

$

Usually ships in 3-6 days

0

11

Exmark 116-1433-03

MOUNT-CANISTER

$225.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2228

CLAMP, T-BOLT

$49.99

$

Usually ships in 3-6 days

0

14

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 119-8502

HOSE-VENT, FORMED

$6.99

$

Usually ships in 3-6 days

0

18

Exmark 116-4464

PLUG-PORT

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 116-6005

RETAINER-LINE, VAPOR

$5.49

$

Usually ships in 3-6 days

0

21

Exmark 125-8067

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0

22

Exmark 146-1016

Clamp - Hose

$1.49

$

Usually ships in 0 days

0
