LZS749AKC724A1 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749 (SN: 400000000 - 402082299) (2017) Idler Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749

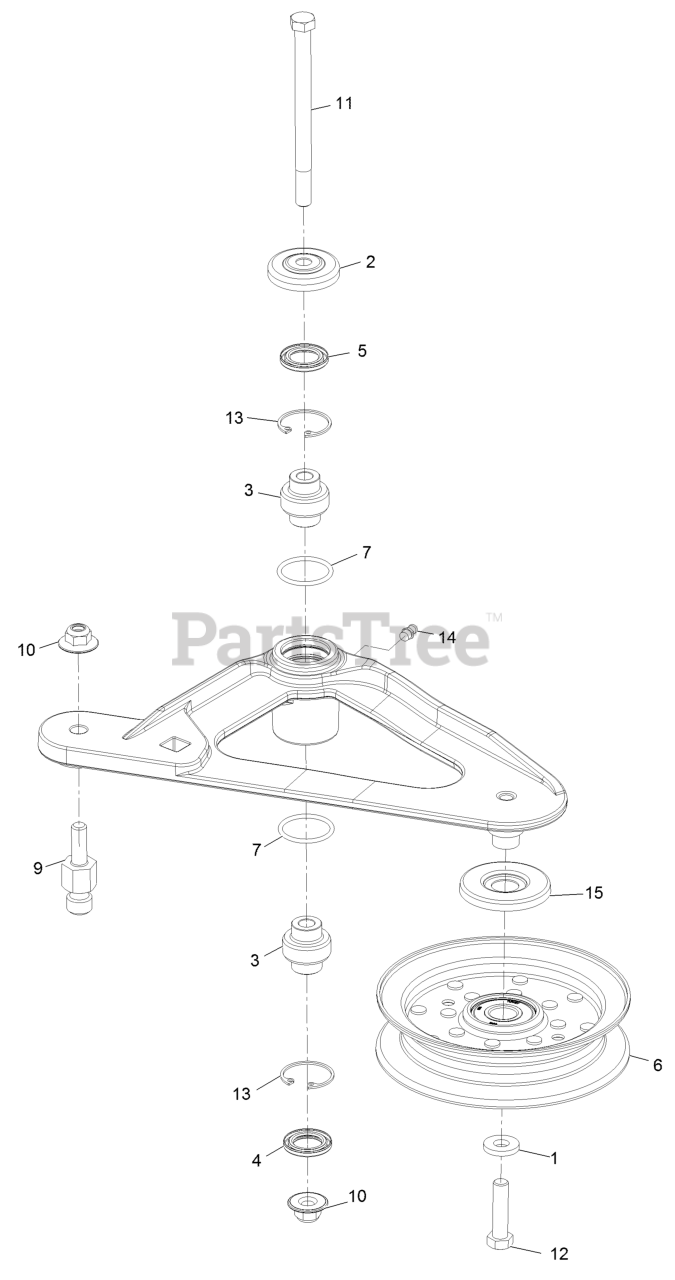

Idler Assembly Parts Diagram

  • Title

1

Exmark 43-0940

Spacer

$5.49

$

In Stock, Qty 20+

0

2

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 9

0

3

Exmark 103-3504

Bearing-Spherical

$25.99

$

In Stock, Qty 20+

0

4

Exmark 103-3505

Seal-Double Lip

$5.49

$

In Stock, Qty 20+

0

5

Exmark 103-3506

Seal-Lip, Single

$5.49

$

In Stock, Qty 19

0

6

Exmark 126-9196

Idler-Pulley, Flat 5.00X0.87

$60.99

$

In Stock, Qty 20+

0

7

Exmark 106-7159

O-Ring

$1.49

$

In Stock, Qty 20+

0

9

Exmark 126-0423

Pin-Spring, Anchor

$7.99

$

In Stock, only 1 left!

0

10

Exmark 109-6658

Nut-Flange, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 109-7409

Screw-Shoulder, HH

$5.49

$

In Stock, only 2 left!

0

12

Exmark 323-8

Screw-HH

$1.49

$

In Stock, Qty 20+

0

13

Exmark 32120-10

Ring-Snap

$1.49

$

In Stock, Qty 20+

0

14

Exmark 302-19

Fitting-Grease

$2.49

$

In Stock, Qty 8

0

15

Exmark 126-9195

Guard-Dust Shield

$2.99

$

In Stock, only 3 left!

0
