LZS749AKC72400 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749 (SN: 316000000 - 399999999) (2016) Control Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749

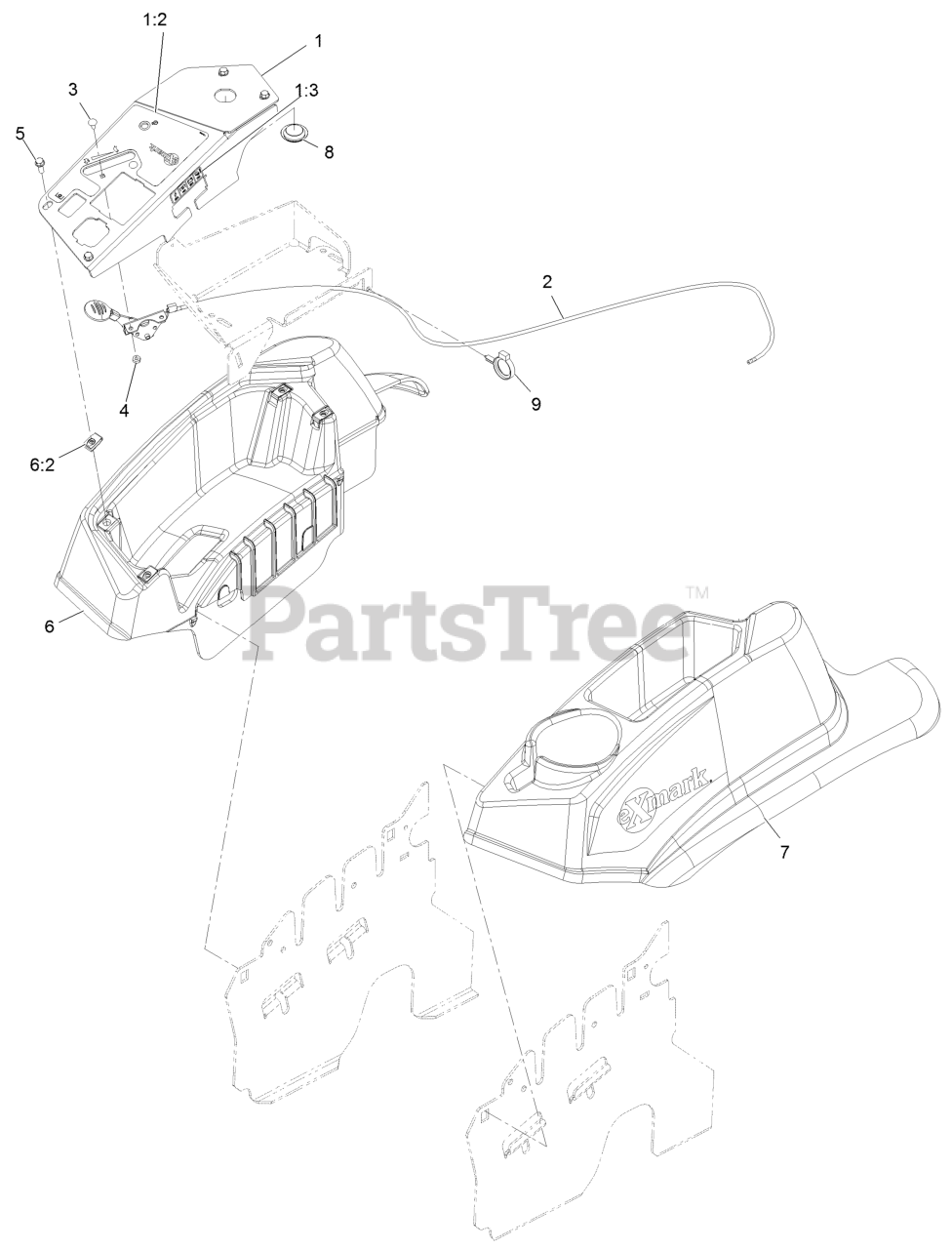

Control Assembly Parts Diagram

  • Title
1

Exmark 116-2845

ASM,CONTROL PANEL W/DECAL

$113.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-8725

DECAL-CONTROL PANEL EFI

$16.99

$

Usually ships in 3-6 days

0

1:3

Exmark 114-4466

DECAL-FUSES

$6.49

$

In Stock, only 1 left!

0

2

Exmark 116-0969

ASM,THROTTLE CABLE

$49.99

$

In Stock, only 2 left!

0

3

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

4

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

6

Exmark 116-1278

CONSOLE,RH AS ASM

$144.99

$

Usually ships in 3-6 days

0

6:2

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

7

Exmark 109-9457

CONSOLE, LH AS

$144.99

$

In Stock, only 1 left!

0

8

Exmark 116-1875

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 104-2490

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0
