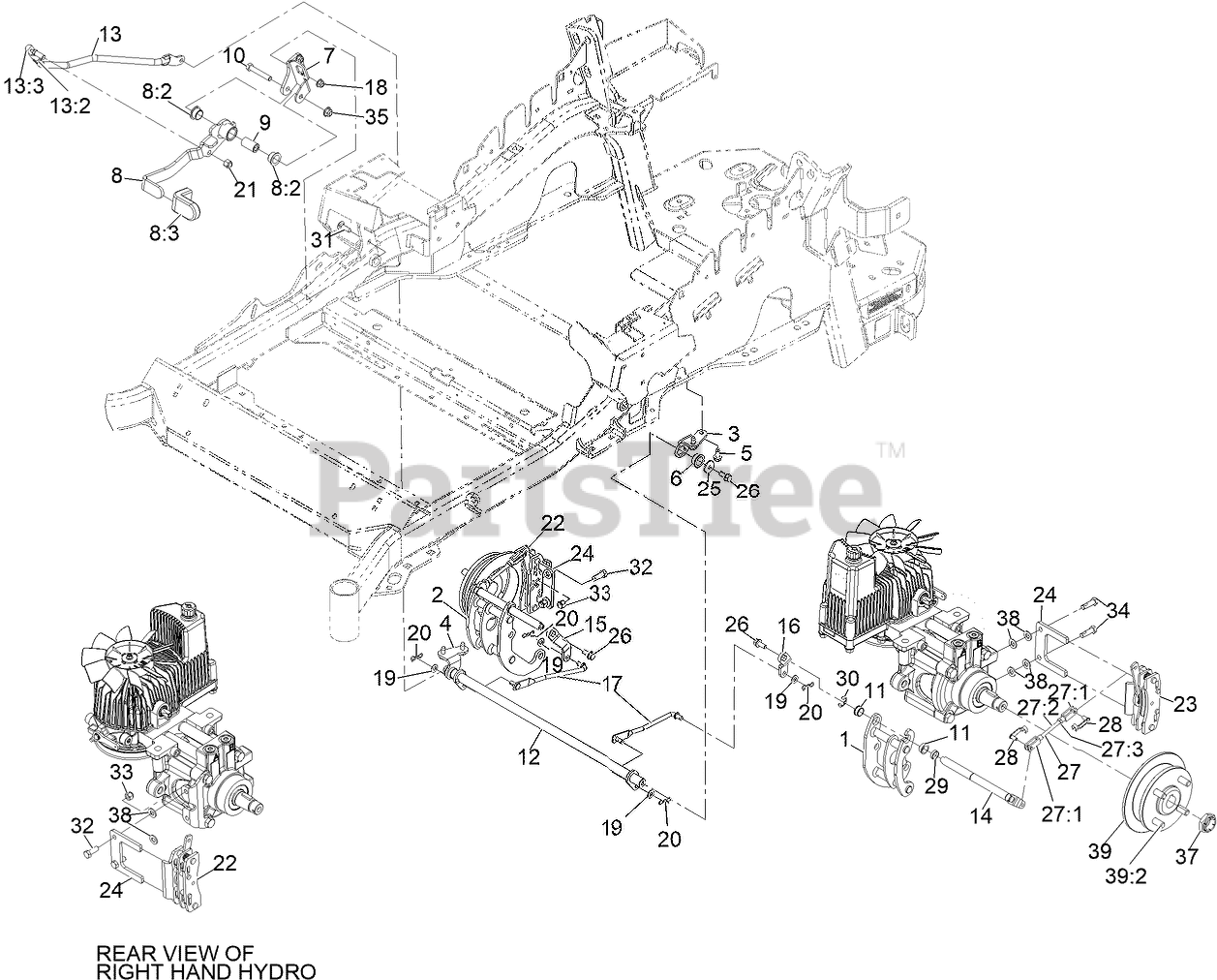

LZS749AKC604A1 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749 (SN: 411294212 - 413950473) (Rev A) (2022) Park Brake Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 126-4248

MOUNT-BELLCRANK, LH

$36.99

$

Usually ships in 3-6 days

0

2

Exmark 126-4249

MOUNT-BELLCRANK, RH

$36.99

$

In Stock, only 1 left!

0

3

Exmark 116-9681

MOUNT-PIVOT, LH

$5.49

$

In Stock, only 1 left!

0

4

Exmark 116-9682

MOUNT-PIVOT, RH

$5.49

$

In Stock, only 1 left!

0

5

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

6

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

7

Exmark 116-9096-01

BRACKET-MOUNT

$27.99

$

Usually ships in 3-6 days

0

8

Exmark 135-7565

Brake Lever ASM

$44.99

$

Usually ships in 3-6 days

0

8:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

8:3

Exmark 132-4749

GRIP-LEVER

$5.49

$

In Stock, only 1 left!

0

9

Exmark 116-9117

HANDLE-PIVOT, BRAKE

$2.99

$

Usually ships in 3-6 days

0

10

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Exmark 126-6199

BUSHING

$7.99

$

In Stock, Qty 11

0

12

Exmark 135-7800

Shaft-Cross

$59.99

$

In Stock, only 2 left!

0

13

Exmark 135-7805

ASM, Front Linkage

$64.99

$

Usually ships in 3-6 days

0

13:2

Exmark 94-7572

END-TIE ROD, RH

$34.99

$

In Stock, only 2 left!

0

13:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

14

Exmark 126-4251

BELLCRANK

$20.99

$

Usually ships in 3-6 days

0

15

Exmark 126-3716

ARM-INNER, RH

$6.49

$

Usually ships in 3-6 days

0

16

Exmark 126-3715

ARM-INNER, LH

$6.49

$

Usually ships in 3-6 days

0

17

Exmark 142-6327

MID-LINK, LONG

$31.99

$

In Stock, Qty 5

0

18

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Exmark 119-1415

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 7

0

21

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

22

Exmark 135-7440

Caliper-Brake, RH

$90.99

$

In Stock, only 3 left!

0

23

Exmark 135-7441

Caliper-Brake, LH

$90.99

$

Usually ships in 3-6 days

0

24

Exmark 135-7828

PLATE-MOUNT, BRAKE

$11.99

$

In Stock, only 1 left!

0

25

Exmark 115-7109

WASHER-FLAT

$1.49

$

In Stock, Qty 5

0

26

Exmark 98-9940

SCREW-HHF

$1.99

$

In Stock, only 3 left!

0

27

Exmark 126-7587

REAR LINKAGE ASM

$20.99

$

In Stock, only 2 left!

0

27:1

Exmark 126-7588

126-7587
(Superseded to 126-7587)

$20.99

$

In Stock, only 2 left!

0

27:2

Exmark 116-9069

126-7587
(Superseded to 126-7587)

$20.99

$

In Stock, only 2 left!

0

27:3

Exmark 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

28

Exmark 126-6395

PIN-CLEVIS, SPRING

$7.99

$

In Stock, Qty 5

0

29

Exmark 126-6200

SPACER

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 32120-19

E-RING

$2.99

$

In Stock, Qty 14

0

31

Exmark 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 135-7915

SCREW-HH,

$1.49

$

In Stock, only 3 left!

0

33

Exmark 112-0236

NUT-LOCK

$5.99

$

Usually ships in 3-6 days

0

34

Exmark 135-7890

Screw-HH, Patch

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

37

Exmark 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

38

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Exmark 142-2701

Wheel Hub ASM

$117.99

$

In Stock, only 1 left!

0

39:2

Exmark 116-1696

STUD-WHEEL

$5.49

$

In Stock, Qty 20+
