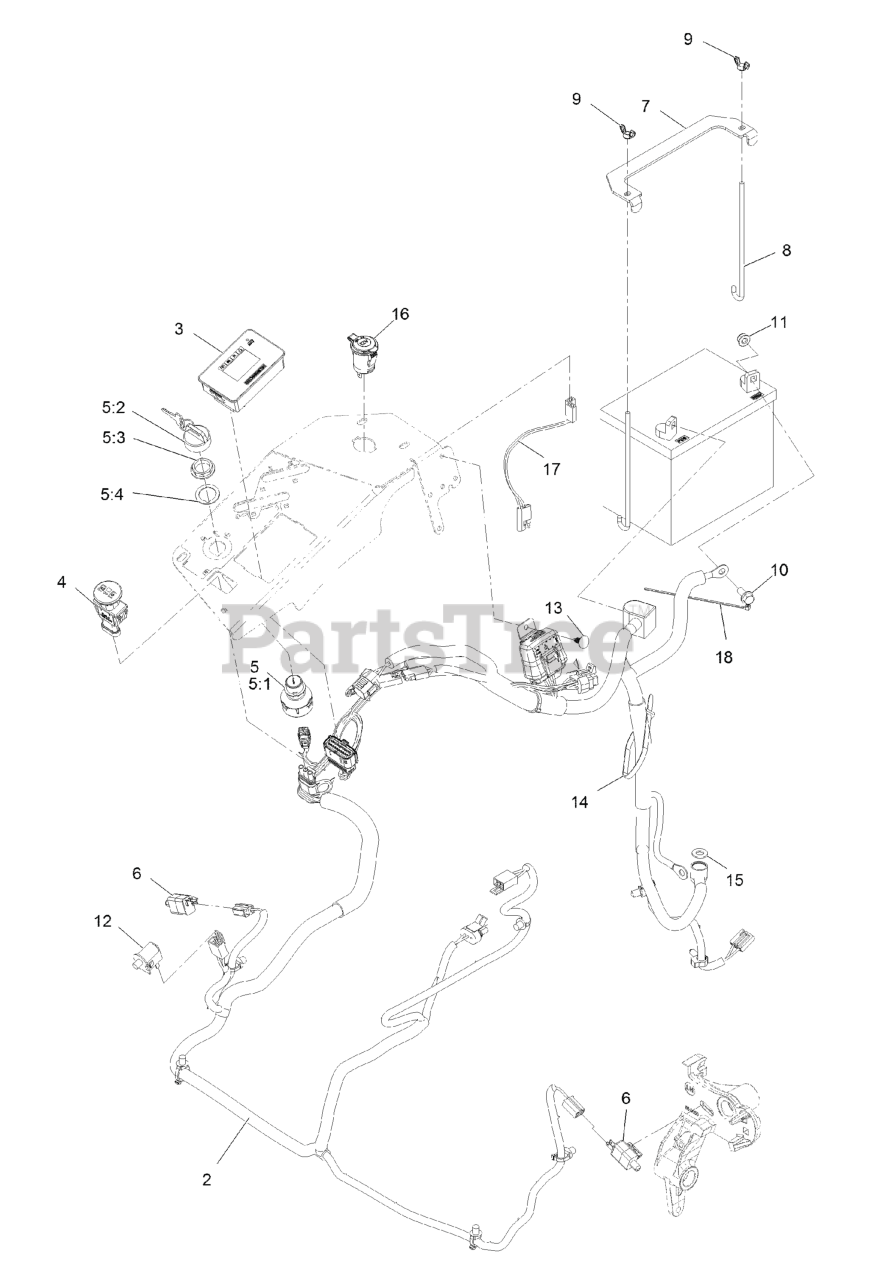

LZS749AKC604A1 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749 (SN: 404314159 - 406294344) (2019) Electrical Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749

Electrical Assembly Parts Diagram

2

Exmark 135-5753

WIRE HARNESS ASM

$460.99

$

Usually ships in 3-6 days

0

3

Exmark 135-2471

Meter-Hour

$

$

Not available

4

Exmark 126-6187

SWITCH-PTO, SEALED

$58.99

$

In Stock, Qty 20+

0

5

Exmark 126-6285

IGNITION SWITCH ASM

$58.99

$

In Stock, Qty 20+

0

5:1

Switch-Ignition

Note: Not serviced separately

$

$

Not available

5:2

Exmark 108-8660

NUT-MOUNTING

$37.99

$

In Stock, only 3 left!

0

5:3

Exmark 106-5270

IGNITION KEY SET

$22.99

$

In Stock, Qty 20+

0

5:4

Exmark 108-8659

WASHER-BACKUP

$15.99

$

In Stock, only 1 left!

0

6

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

7

Exmark 116-0042-03

STRAP-TIE DOWN, BATTERY

$23.99

$

In Stock, only 1 left!

0

8

Exmark 1-633651

BOLT-HOLDDOWN

$8.49

$

In Stock, Qty 6

0

9

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

10

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

13

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

15

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Exmark 126-6499

PORT-POWER, 12V

$17.99

$

In Stock, only 2 left!

0

17

Exmark 126-7290

HARNESS-RECEPTACLE, 12V

$26.99

$

Usually ships in 3-6 days

0

18

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
