LZS749AKC604A1 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749 (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kohler ECV749

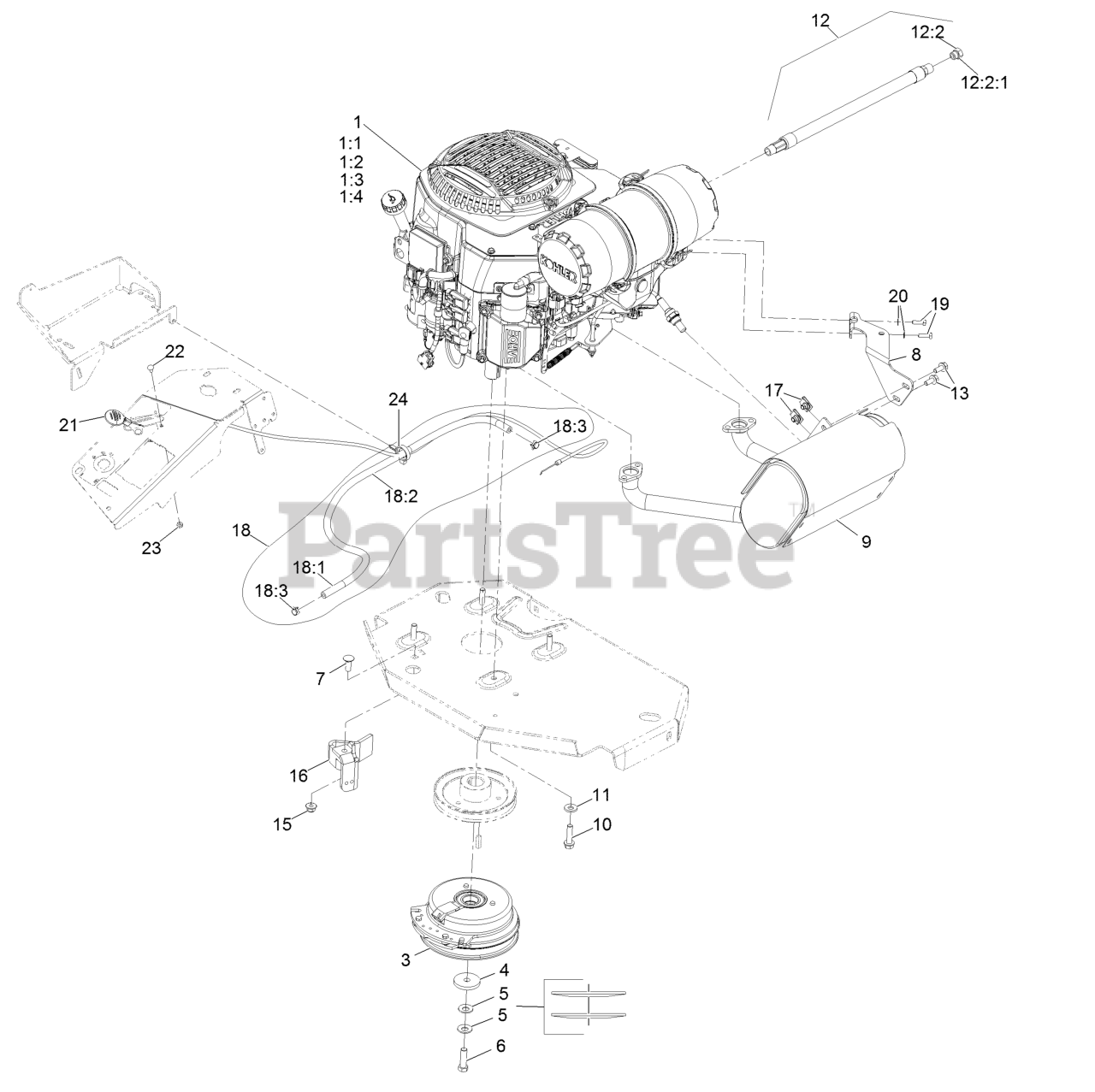

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler Ecv749

$

$

Not available

1:1

Kohler 52 050 02-S Engine Oil Filter

$

$

Not available

1:2

Kohler 25 083 01-S Engine Air Filter

$

$

Not available

1:3

Kohler 25 083 04-S Safety Filter

$

$

Not available

1:4

Exmark 135-2483

Kohler 25 050 42-S Fuel Filter

$

$

Currently unavailable

3

Exmark 116-1620

Clutch Kit

$359.99

$

In Stock, only 3 left!

0

4

Exmark 109-6919

Washer-Clutch

$5.49

$

In Stock, Qty 8

0

5

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 5

0

6

Exmark 109-9761

Screw-HH 7/16-20 X 1 1/2 W/Loctite

$5.49

$

In Stock, Qty 6

0

7

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

8

Exmark 116-4297

Muffler Bracket Kit

$75.99

$

In Stock, only 1 left!

0

9

Exmark 135-2127

Muffler Kit
(Superseded to 142-6858)

$499.99

$

In Stock, Qty 9

0

10

Exmark 32144-102

Screw-HWH 3/8-16 X 1 1/2 Taptite

$3.49

$

Usually ships in 3-6 days

0

11

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

12

Exmark 116-5316

Oil Drain Hose ASM

$54.99

$

In Stock, Qty 14

0

12:2

Exmark 353-508

Plug-W/O-Ring

$8.49

$

In Stock, only 1 left!

0

12:2:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 20+

0

13

Exmark 3234-5

Screw-HH Flg 5/16-18 X 3/4

$1.49

$

In Stock, Qty 5

0

15

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

16

Exmark 116-2612-01

Clutch-Anchor

$55.99

$

In Stock, only 2 left!

0

17

Exmark 94-2413

Nut-U

$2.99

$

In Stock, Qty 20+

0

18

Exmark 117-3893

Fuel Line ASM

$49.99

$

Usually ships in 3-6 days

0

18:1

Exmark 109-0273

Hose-Fuel Line 38 1/4"

$22.99

$

Usually ships in 3-6 days

0

18:2

Exmark 117-3892

Sleeve-Thermal

$33.99

$

Usually ships in 3-6 days

0

18:3

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

19

Exmark 116-4295

Screw-HH M6-1 X 20Mm W/Patch

$5.49

$

Usually ships in 3-6 days

0

20

Exmark 1-303435

Washer-Spring Disc 1/4

$1.49

$

In Stock, Qty 20+

0

21

Exmark 116-0969

ASM,Throttle Cable

$49.99

$

In Stock, Qty 13

0

22

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 15

0

23

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

24

Exmark 105-1853

Clamp-Hose

$5.49

$

In Stock, only 4 left!

0
