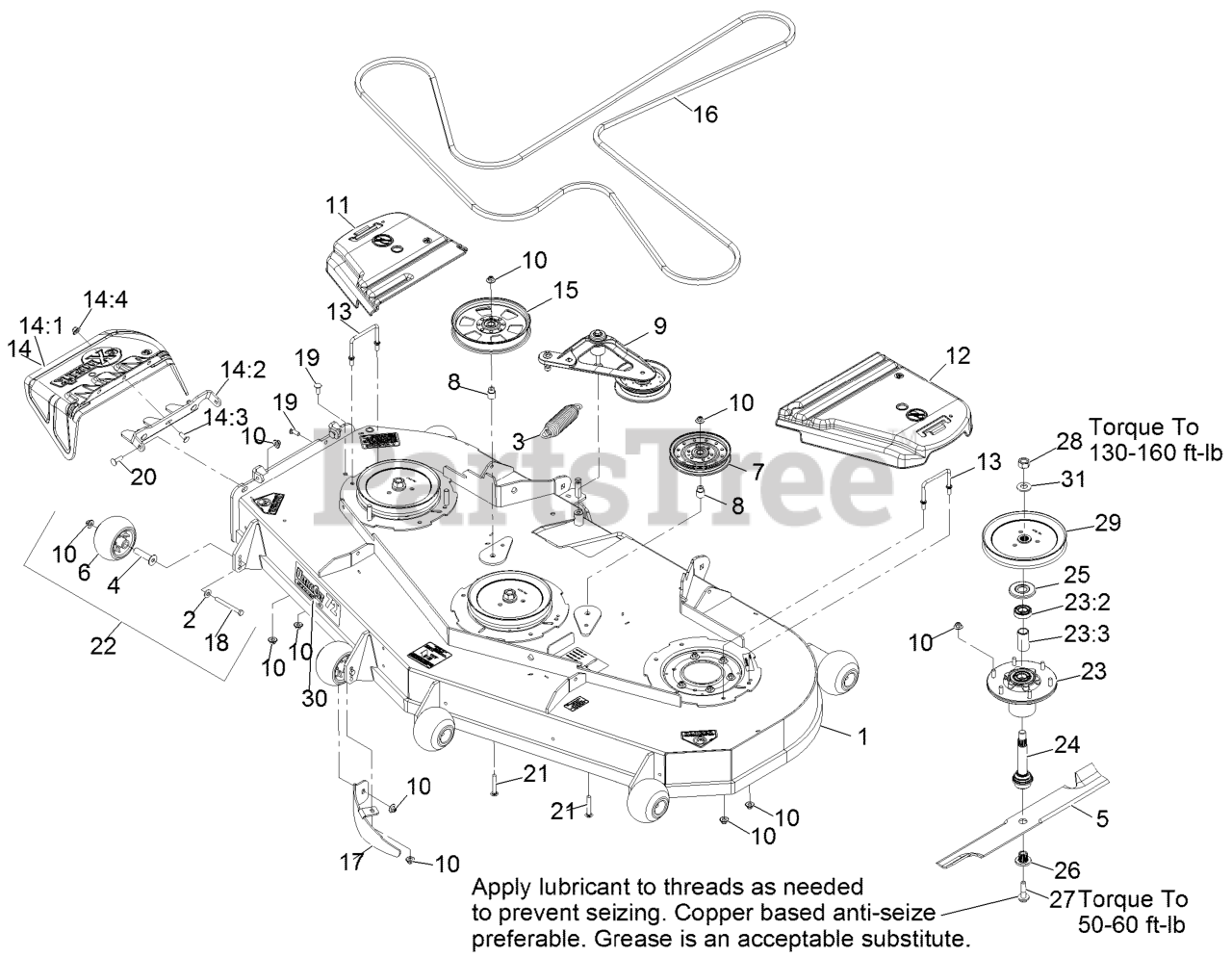

LZS740PKC724 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, Kohler Propane (SN: 314000000 - 314999999) (2014) Deck Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, Kohler Propane

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-1665

ASM,DECK W/DECALS 724

$4402.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 20+

0

4

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 20+

0

5

Exmark 103-6384

103-6384-S
(Superseded to 103-6384-S)

$44.99

$

In Stock, Qty 20+

0

5

Exmark 103-6389

103-6389-S
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 20+

0

5

Exmark 103-6394

103-6394-S
(Superseded to 103-6394-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$38.99

$

In Stock, Qty 20+

0

5

Exmark 103-6404

103-6404-S
(Superseded to 103-6404-S)

$44.99

$

In Stock, Qty 20+

0

5

Exmark 116-5171

116-5171-S
(Superseded to 116-5171-S)

$44.99

$

In Stock, Qty 20+

0

6

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

7

Exmark 116-4667

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 20+

0

8

Exmark 1-633456

BUSHING-IDLER

$4.99

$

In Stock, Qty 20+

0

9

Exmark 116-3755

DECK IDLER ASM

$267.99

$

In Stock, Qty 20+

0

10

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 116-0094

COVER-BELT, RH

$86.99

$

In Stock, Qty 15

0

12

Exmark 109-6938

COVER-BELT, LH

$96.99

$

In Stock, Qty 20+

0

13

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 10

0

14

Exmark 109-7188

ASM,DISCHARGE CHUTE

$115.99

$

In Stock, only 3 left!

0

14:1

Exmark 109-2738

CHUTE,DISCHARGE

$81.99

$

In Stock, Qty 20+

0

14:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$54.99

$

In Stock, only 1 left!

0

14:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

14:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 116-9639

PULLEY-IDLER, FLAT

$95.99

$

In Stock, Qty 20+

0

16

Exmark 109-9023

BELT-V
(Superseded to 135-5777)

$165.99

$

In Stock, Qty 20+

0

17

Exmark 116-5834-01

BAFFLE-DOGLEG, LZ72

$84.99

$

Usually ships in 3-6 days

0

18

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

20

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

21

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

22

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

23

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$158.99

$

In Stock, Qty 20+

0

23:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

23:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

24

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 20+

0

25

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 20+

0

26

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

27

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

28

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

29

Exmark 116-1377

SHEAVE,BLADE DRIVE 8.74

$126.99

$

In Stock, Qty 20+

0

30

Exmark 116-0944

DECAL,ULTRACUT 72 SERIES

$25.99

$

Usually ships in 3-6 days

0

31

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0
