LZS740PKC60400 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kohler Propane (SN: 315000000 - 315999999) (2015) Seat Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kohler Propane

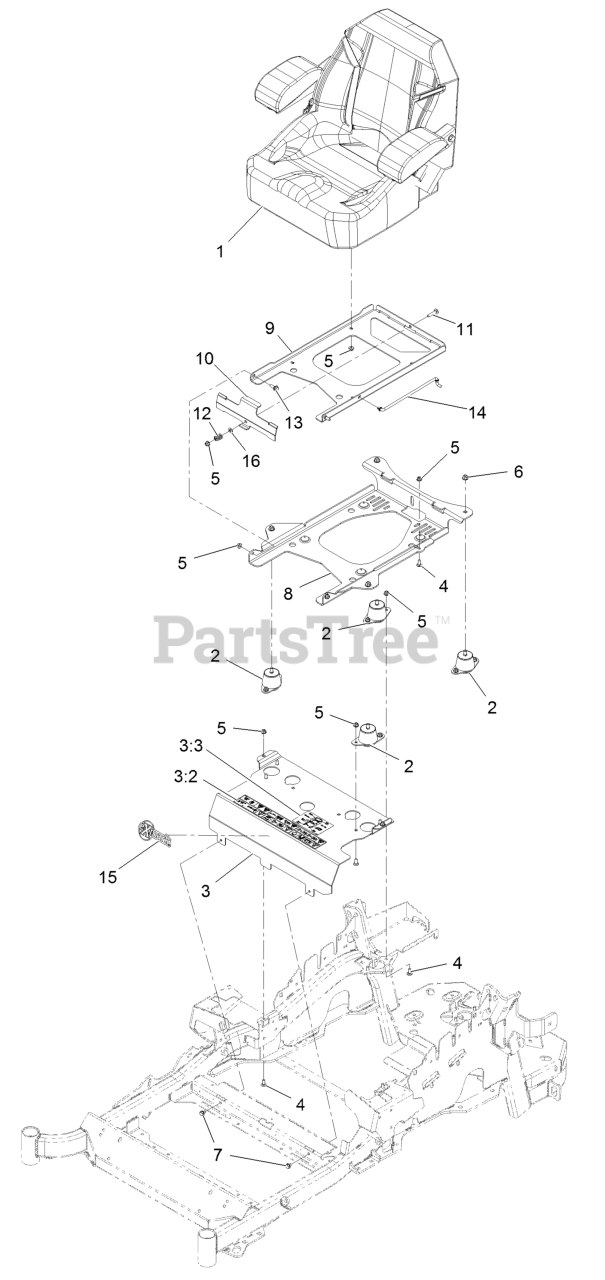

Seat Assembly Parts Diagram

  • Title

1

Exmark 116-4474

126-5801
(Superseded to 126-5801)

$1405.99

$

Usually ships in 3-6 days

0

2

Exmark 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

3

Exmark 116-3327

MOUNT-SEAT

$376.99

$

Usually ships in 3-6 days

0

3:2

Exmark 116-8722

DECAL-CONSOLE

$11.99

$

Usually ships in 3-6 days

0

3:3

Exmark 114-4465

DECAL-SERVICE AID

$29.99

$

Usually ships in 3-6 days

0

4

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 9266934

SCREW

$8.99

$

In Stock, only 3 left!

0

8

Exmark 116-3860-03

PLATE-TILT, SEAT SUPPORT

$190.99

$

Usually ships in 3-6 days

0

9

Exmark 116-3859-03

PLATE-FRAME, SEAT

$133.99

$

Usually ships in 3-6 days

0

10

Exmark 109-9881-03

PLATE-LATCH, SEAT

$19.99

$

Usually ships in 3-6 days

0

11

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 13

0

12

Exmark 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

13

Exmark 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 116-0070

ROD-PROP

$21.99

$

Usually ships in 3-6 days

0

15

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 9

0

16

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
