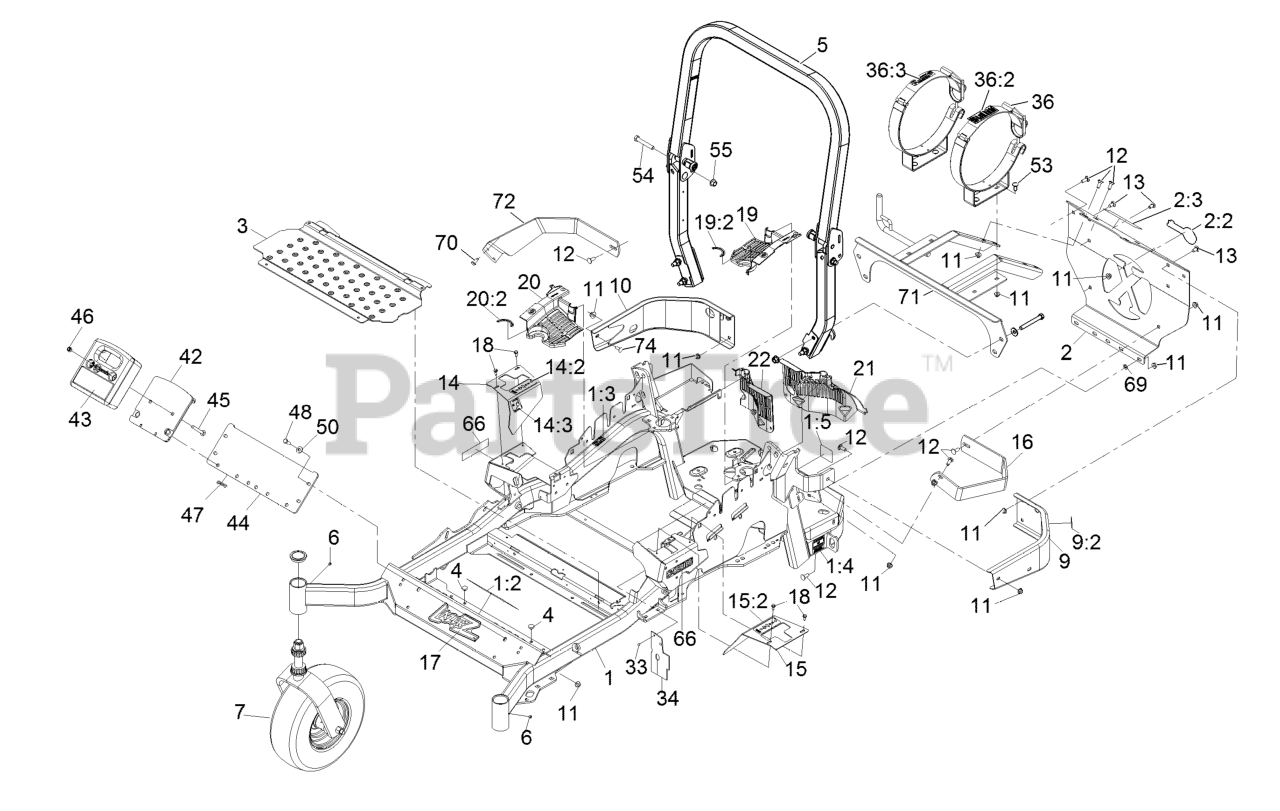

LZS740PKA724 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, Kawasaki Propane (SN: 313000000 - 313999999) (2013) Main Frame Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, Kawasaki Propane

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-5904

MAINFRAME ASM
(Superseded to 142-7266)

$2596.99

$

Usually ships in 3-6 days

0

1:2

Exmark 103-2076

DECAL-CAUTION

$6.49

$

In Stock, only 1 left!

0

1:3

Exmark 116-3303

DECAL-SLOPE

$17.99

$

Usually ships in 3-6 days

0

1:4

Exmark 116-0205

DECAL-BELT DRIVE

$8.49

$

Usually ships in 3-6 days

0

1:5

Exmark 116-4858

DECAL-SPARK ARRESTER

$3.49

$

In Stock, only 1 left!

0

2

Exmark 116-9304

REAR GUARD-LP W/DECALS

$250.99

$

Usually ships in 3-6 days

0

2:2

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 9

0

2:3

Exmark 109-9906

DECAL-TANK REPLACEMENT

$18.99

$

In Stock, only 2 left!

0

3

Exmark 116-8898-01

FLOORPAN

$108.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

5

Exmark 116-2882

ROPS ASM

$446.99

$

Usually ships in 3-6 days

0

6

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

7

Caster Wheel Asm

Note: Not serviced separately

$

$

Not available

9

Exmark 116-0180

LH BUMPER ASM

$148.99

$

Usually ships in 3-6 days

0

9:2

Exmark 103-2076

DECAL-CAUTION

$6.49

$

In Stock, only 1 left!

0

10

Exmark 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

14

Exmark 116-5899

RH MOTION CONTROL COVER ASM

$49.99

$

Usually ships in 3-6 days

0

14:2

Exmark 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

14:3

Exmark 116-5944

DECAL-PARK BRAKE

$14.99

$

In Stock, Qty 14

0

15

Exmark 116-0580

LH MOTION CONTROL COVER ASM

$28.99

$

Usually ships in 3-6 days

0

15:2

Exmark 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

16

Exmark 116-0043-03

126-2067-03
(Superseded to 126-2067-03)

$60.99

$

Usually ships in 3-6 days

0

17

Exmark 103-3113

DECAL,LAZER MODEL

$11.99

$

In Stock, Qty 8

0

18

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

19

Exmark 116-0170

LH HYDRO GUARD ASM

$85.99

$

In Stock, only 3 left!

0

19:2

Exmark 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.49

$

In Stock, Qty 20+

0

20

Exmark 116-0171

RH HYDRO GUARD ASM

$85.99

$

Usually ships in 3-6 days

0

20:2

Exmark 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.49

$

In Stock, Qty 20+

0

21

Exmark 109-9057

GUARD-HYDRO, REAR (LH)

$23.99

$

In Stock, only 3 left!

0

22

Exmark 109-9058

GUARD-HYDRO, REAR (RH)

$25.99

$

In Stock, only 3 left!

0

33

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

34

Exmark 116-2362

DEFLECTOR-AIR FLOW

$6.49

$

Usually ships in 3-6 days

0

36

Exmark 116-2817

TANK BRACKET ASM (SET)

$358.99

$

Usually ships in 3-6 days

0

36:2

Exmark 109-9875

DECAL-LPG WARNING

$12.99

$

Usually ships in 3-6 days

0

36:3

Exmark 116-1714

DECAL-LPG 43.5LB TANK

$31.99

$

Usually ships in 3-6 days

0

42

Exmark 103-6364-01

WLD,WEIGHT MOUNT

$135.99

$

Usually ships in 3-6 days

0

43

Exmark 103-6367-01

WEIGHT,CAST 36LB

$441.99

$

Usually ships in 3-6 days

0

44

Exmark 103-6368-01

PLATE,WEIGHT ASM MOUNT

$85.99

$

In Stock, only 1 left!

0

45

Exmark 3231-10

SCREW-CARR

$4.99

$

In Stock, only 4 left!

0

46

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

47

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

48

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

50

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

53

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

54

Exmark 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

55

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

66

Exmark 116-3884

DECAL-S-SERIES

$7.99

$

Usually ships in 3-6 days

0

69

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

70

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

71

Exmark 116-3558-03

SUPPORT-TANK

$258.99

$

Usually ships in 3-6 days

0

72

Exmark 116-1432-03

STRAP-GUARD

$91.99

$

Usually ships in 3-6 days

0

74

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0
