LZS740PKA724 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, Kawasaki Propane (SN: 313000000 - 313999999) (2013) Deck Lift Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, Kawasaki Propane

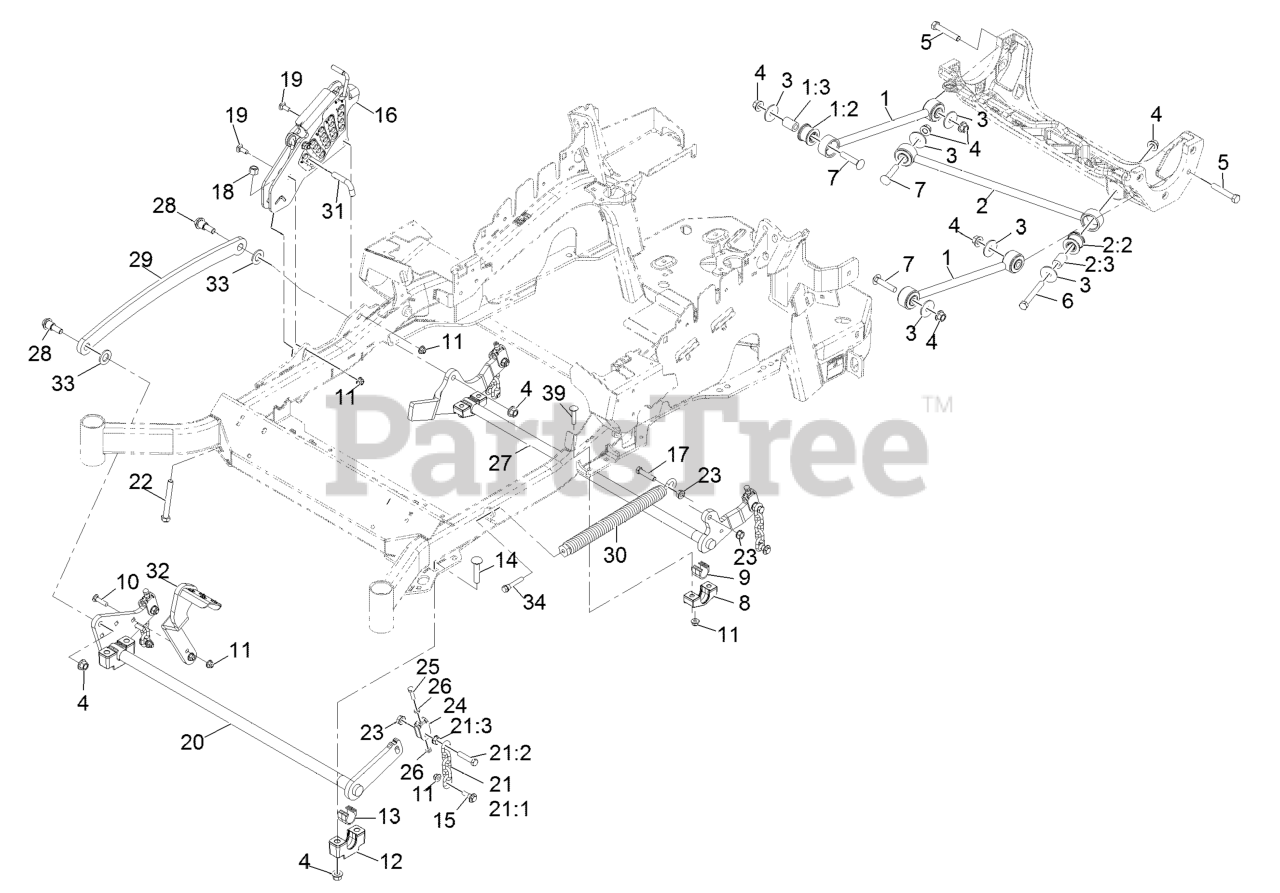

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 109-7952

DECK STRUT ASM

$144.99

$

In Stock, only 2 left!

0

1:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

0

1:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

0

2

Exmark 109-5013

PANHARD ROD ASM

$142.99

$

In Stock, Qty 6

0

2:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

0

2:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

0

3

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 3 left!

0

4

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

5

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

6

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, Qty 6

0

7

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

0

8

Exmark 116-0818-03

132-4719
(Superseded to 132-4719)

$44.99

$

In Stock, only 3 left!

0

9

Exmark 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 6

0

10

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, only 4 left!

0

13

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 13

0

14

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 11

0

16

Exmark 109-7438

HOC ASM

$273.99

$

In Stock, only 1 left!

0

17

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 9

0

18

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

20

Exmark 116-2217-03

126-2475-03
(Superseded to 126-2475-03)

$172.99

$

Usually ships in 3-6 days

0

21

Exmark 116-0756

DECK LIFT CHAIN ASM

$14.99

$

In Stock, Qty 8

0

21:1

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

21:2

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 9

0

21:3

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

22

Exmark 116-0559

BOLT-TAP

$6.49

$

Usually ships in 3-6 days

0

23

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

24

Exmark 109-9066

YOKE-ADJUST, DECK

$7.99

$

In Stock, only 2 left!

0

25

Exmark 322-47

SCREW-HH

$2.99

$

In Stock, Qty 18

0

26

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

27

Exmark 116-0459-03

LIFT-DECK, REAR

$334.99

$

Usually ships in 3-6 days

0

28

Exmark 116-0780

SCREW-SHOULDER, HHF 1/2-13 X 1.12

$9.49

$

In Stock, only 3 left!

0

29

Exmark 116-0797-03

LINK-LIFT, DECK

$136.99

$

Usually ships in 3-6 days

0

30

Exmark 116-0000

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

0

31

Exmark 116-5584

PIN-HOC

$5.49

$

In Stock, only 4 left!

0

32

Exmark 116-1919-01

LEVER-FOOT

$99.99

$

Usually ships in 3-6 days

0

33

Exmark 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

34

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

39

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0
