LZS740KC524 - Exmark 52" Lazer Z S-Series Zero-Turn Mower, Kohler CV740 (SN: 312000000 - 312999999) (2012) Deck Idler Assembly No. 116-3755 Parts Diagram

52" Lazer Z S-Series Zero-Turn Mower, Kohler CV740

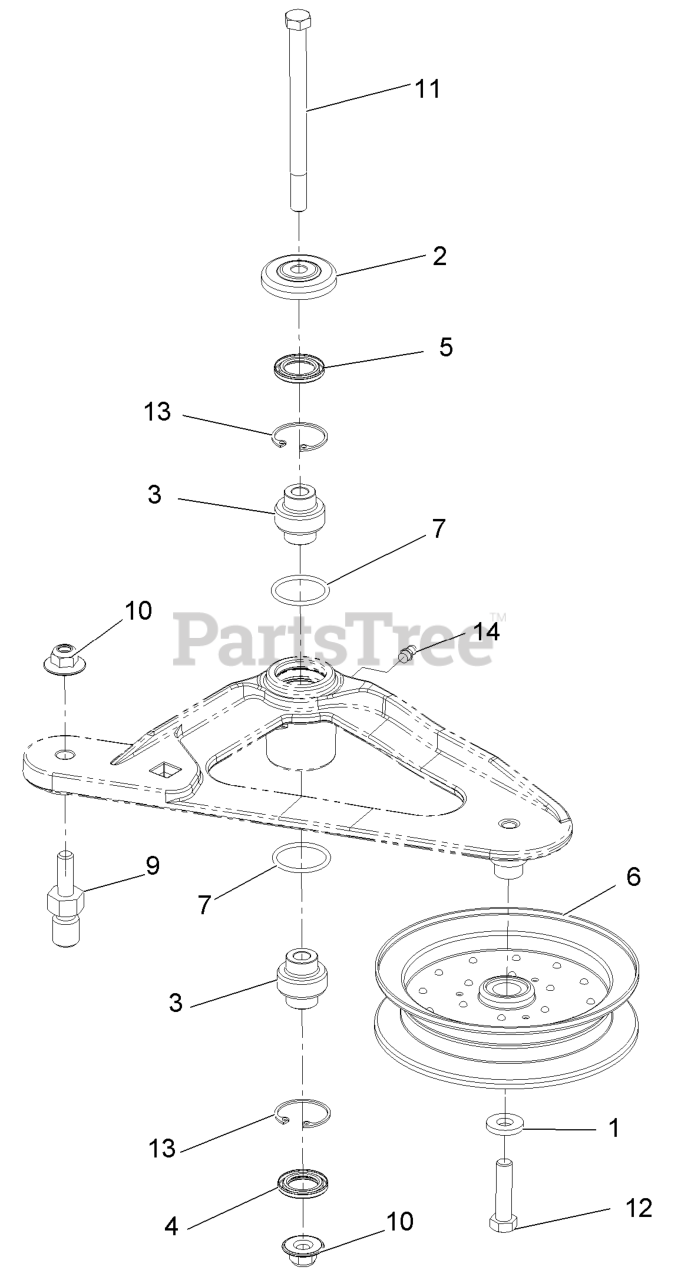

Deck Idler Assembly No. 116-3755 Parts Diagram

  • Title

1

Exmark 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

2

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

3

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

4

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

5

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

6

Exmark 116-4668

126-9196
(Superseded to 126-9196)

$60.99

$

In Stock, Qty 8

0

7

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-3467

132-4724
(Superseded to 132-4724)

$5.49

$

In Stock, only 4 left!

0

10

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 109-7409

SCREW-SHOULDER, HH

$5.49

$

In Stock, only 2 left!

0

12

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

14

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0
