LZS740KC524 - Exmark 52" Lazer Z S-Series Zero-Turn Mower, Kohler CV740 (SN: 312000000 - 312999999) (2012) Control Assembly Parts Diagram

52" Lazer Z S-Series Zero-Turn Mower, Kohler CV740

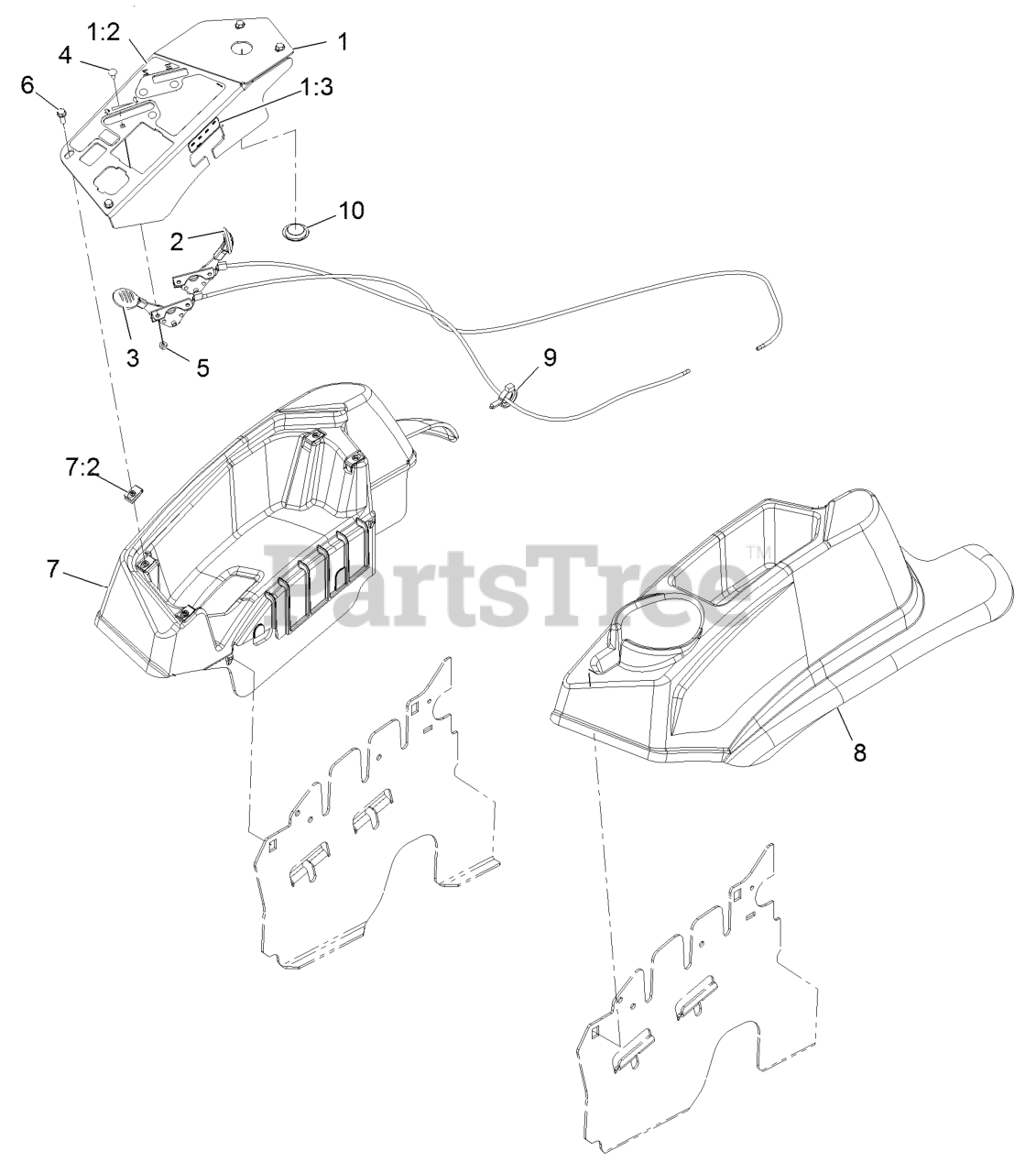

Control Assembly Parts Diagram

  • Title

1

Exmark 116-1845

ASM,CONSOLE PANEL W/DECAL

$85.99

$

Usually ships in 3-6 days

0

1:2

Exmark 109-8483

DECAL-CONTROL PANEL

$20.99

$

In Stock, only 1 left!

0

1:3

Exmark 109-7330

DECAL-FUSE

$5.99

$

Usually ships in 3-6 days

0

2

Exmark 109-8165

ASM, CHOKE CABLE

$49.99

$

Usually ships in 3-6 days

0

3

Exmark 116-0969

ASM,THROTTLE CABLE

$49.99

$

In Stock, only 2 left!

0

4

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

5

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

7

Exmark 116-1278

CONSOLE,RH AS ASM

$144.99

$

Usually ships in 3-6 days

0

7:2

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

8

Exmark 109-9457

CONSOLE, LH AS

$144.99

$

In Stock, only 1 left!

0

9

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

10

Exmark 116-1875

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0
