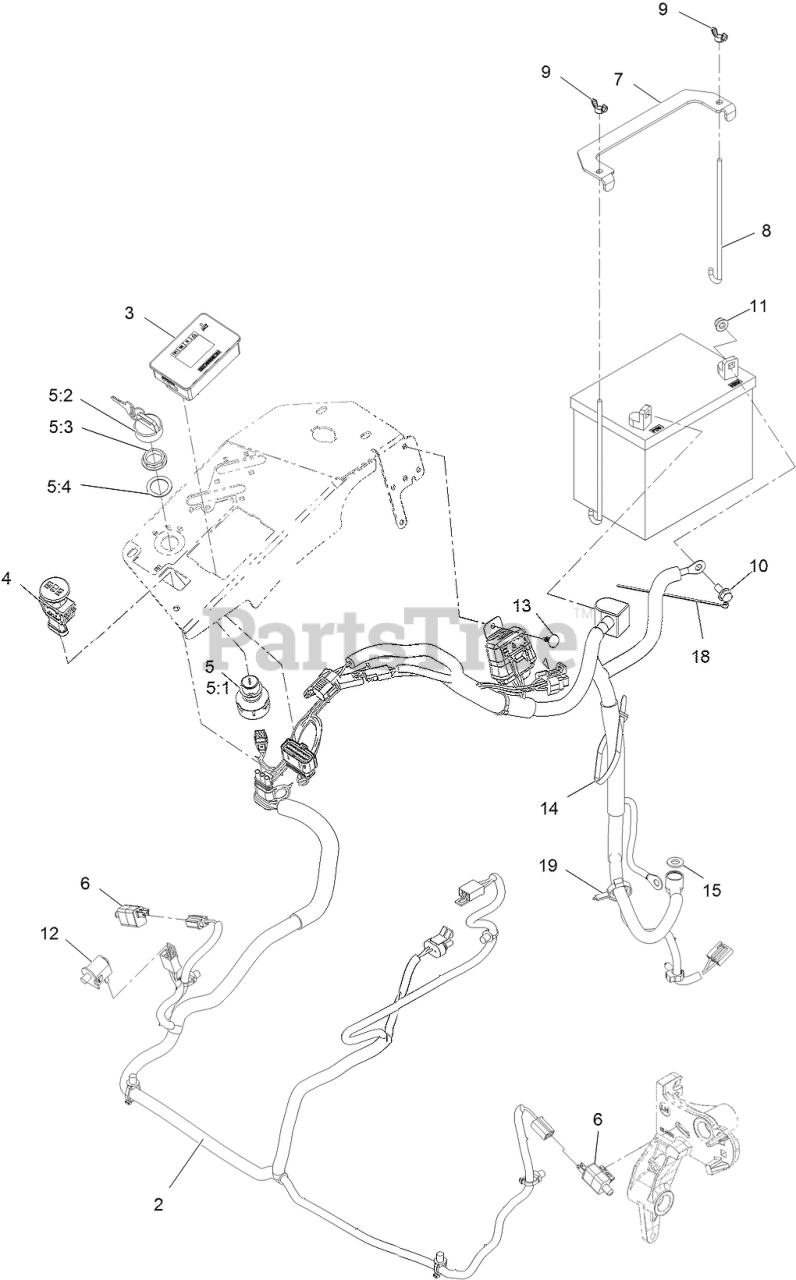

LZS740AKC524A2 - Exmark 52" Lazer Z S-Series Zero-Turn Mower, Kohler ECV740 (SN: 406294345 - 408644345) (Rev B) (2020) Electrical Assembly Parts Diagram

52" Lazer Z S-Series Zero-Turn Mower, Kohler ECV740

Electrical Assembly Parts Diagram

  • Title

2

Exmark 135-5753

WIRE HARNESS ASM

$434.99

$

Usually ships in 3-6 days

0

3

Exmark 135-2471

Meter-Hour

$

$

Not available

4

Exmark 126-6187

SWITCH-PTO, SEALED

$54.99

$

In Stock, Qty 20+

0

5

Exmark 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

5:1

Switch-Ignition

Note: Not serviced separately

$

$

Not available

5:2

Exmark 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

5:3

Exmark 106-5270

IGNITION KEY SET

$22.99

$

In Stock, Qty 18

0

5:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

6

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

7

Exmark 116-0042-03

STRAP-TIE DOWN, BATTERY

$22.99

$

In Stock, only 4 left!

0

8

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

9

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

10

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

13

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

14

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0
