LZS740AKC524A2 - Exmark 52" Lazer Z S-Series Zero-Turn Mower, Kohler ECV740 (SN: 402082300 - 404314158) (2018) Fuel Assembly Parts Diagram

52" Lazer Z S-Series Zero-Turn Mower, Kohler ECV740

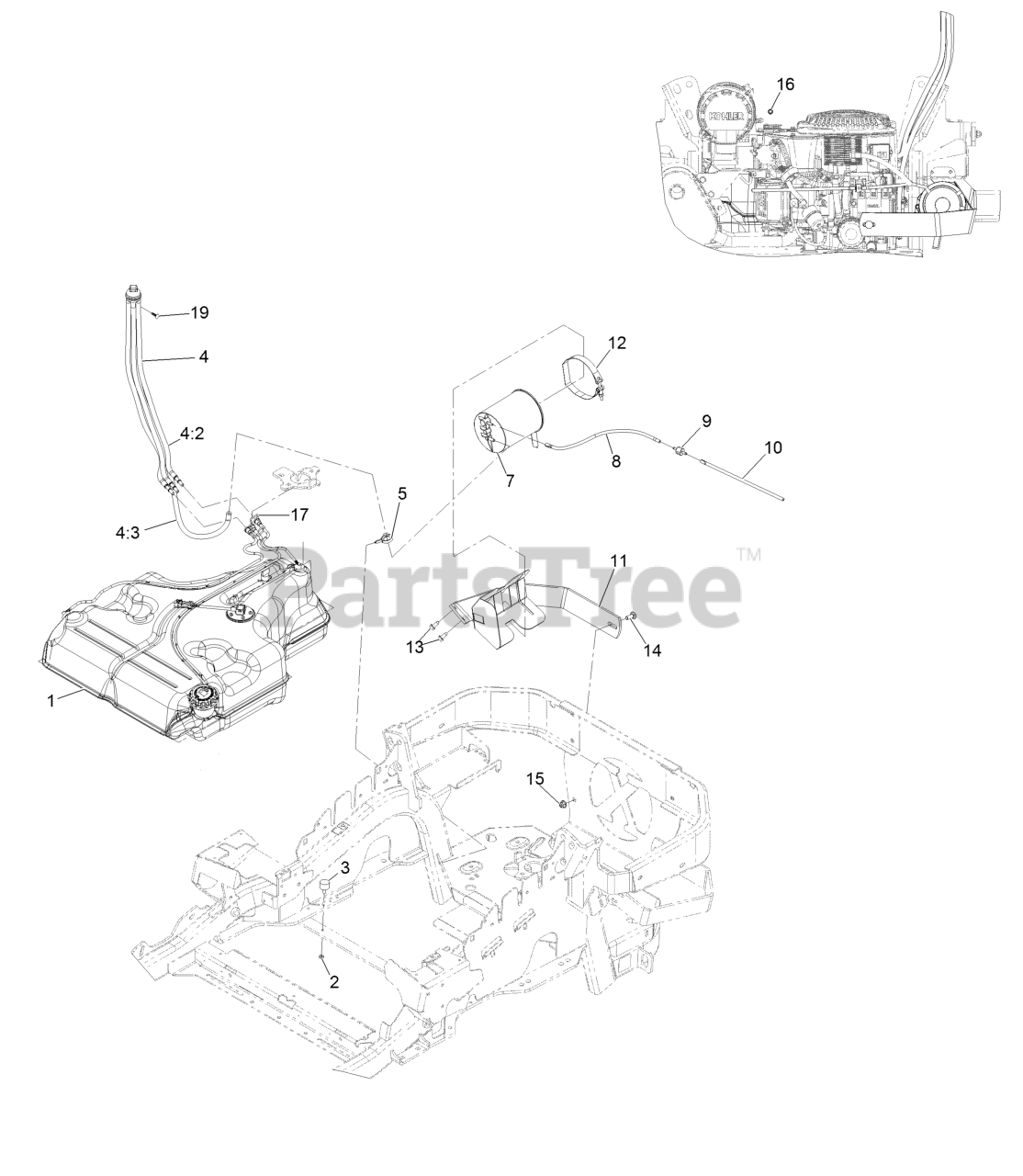

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-0643

Fuel Tank ASM

$702.99

$

Usually ships in 3-6 days

0

2

Exmark 3218-1

Nut-Jam 1/4-20

$1.49

$

In Stock, only 4 left!

0

3

Exmark 1-523420

Bumper

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 127-0583

Fuel Manifold Vent ASM

$70.99

$

Usually ships in 3-6 days

0

4:2

Exmark 109-0302

Hose-Fuel Line 24"

$12.99

$

In Stock, Qty 5

0

4:3

Exmark 108-5376

Hose-Fuel

$43.99

$

In Stock, only 1 left!

0

5

Exmark 105-1853

Clamp-Hose

$5.49

$

In Stock, only 4 left!

0

7

Exmark 116-1442

Canister-Carbon, 1200Cc

$160.99

$

Usually ships in 3-6 days

0

8

Exmark 116-2963

Hose-Vent, Formed

$13.99

$

In Stock, only 1 left!

0

9

Exmark 133-8499

Valve-Check, Vacuum

$15.99

$

In Stock, only 3 left!

0

10

Exmark 119-4235

Hose-Vent, Formed

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 116-1433-03

Mount-Canister

$213.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2228

Clamp, T-Bolt

$46.99

$

Usually ships in 3-6 days

0

13

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

14

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

15

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

16

Exmark 116-4464

Plug-Port

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 116-6005

Retainer-Line, Vapor

$5.49

$

Usually ships in 3-6 days

0

19

Exmark 125-8067

Plug-Plastic

$0.99

$

Usually ships in 3-6 days

0
