LZS740AKC524A2 - Exmark 52" Lazer Z S-Series Zero-Turn Mower, Kohler ECV740 (SN: 400000000 - 402082299) (2017) RH Hydro Assembly No. 126-1322 Parts Diagram

52" Lazer Z S-Series Zero-Turn Mower, Kohler ECV740

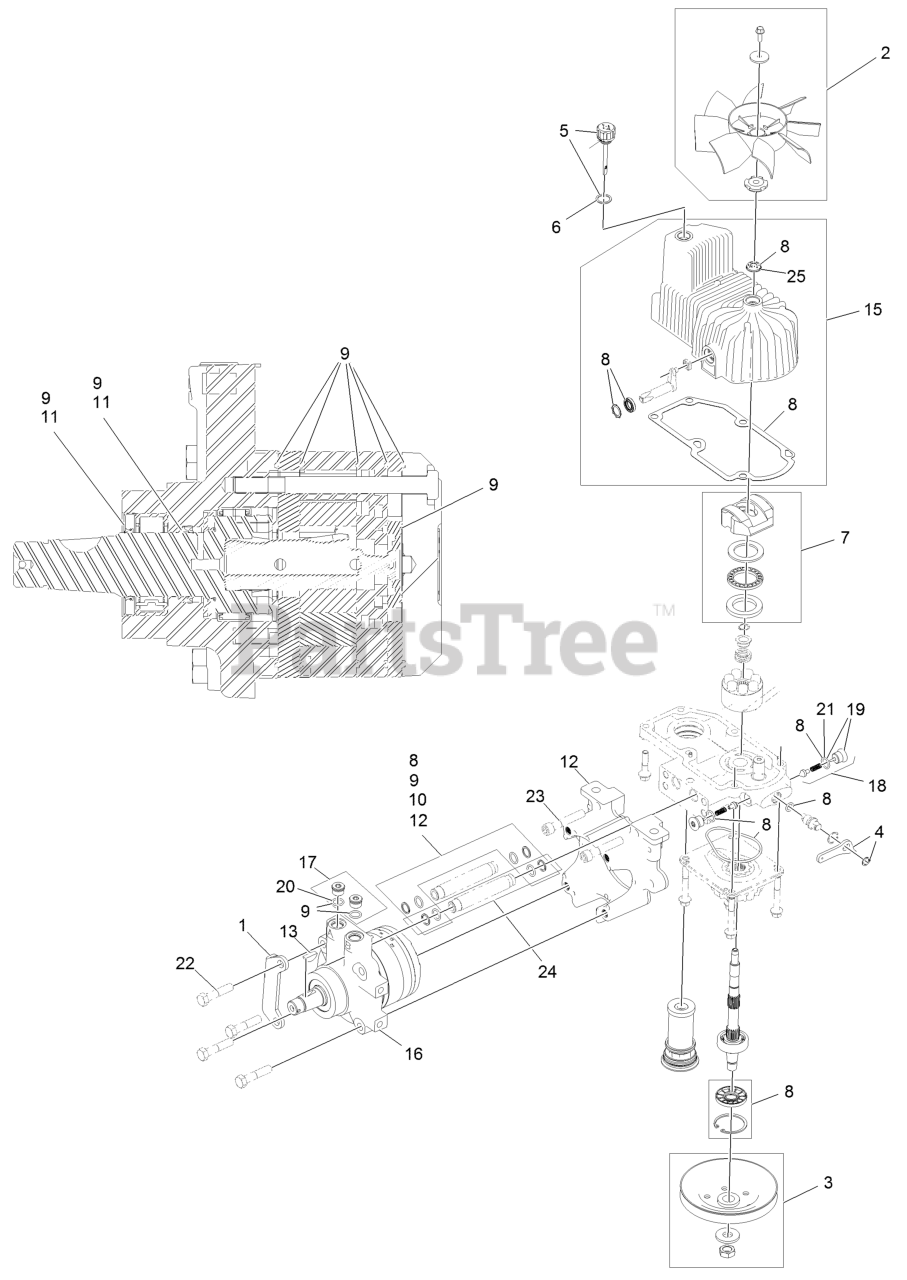

RH Hydro Assembly No. 126-1322 Parts Diagram

  • Title

1

Exmark 116-9063

Mount-Shoe, Horse

$69.99

$

Usually ships in 3-6 days

0

2

Exmark 116-0233

Fan Kit

$

$

Not available

3

Exmark 116-0234

Pulley Kit

$172.99

$

Usually ships in 3-6 days

0

4

Exmark 116-0235

Handle-Bypass Valve, Hydro

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0236

Dipstick-Hydro W/Gasket

$52.99

$

In Stock, only 4 left!

0

6

Exmark 116-0237

Gasket-Dipstick, Hydro

$14.99

$

In Stock, only 2 left!

0

7

Exmark 116-1367

Swash Block Kit

$505.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1368

Pump Seal Kit
(Superseded to 142-3604)

$152.99

$

In Stock, Qty 8

0

9

Exmark 116-1369

Motor Seal Kit

$269.99

$

Usually ships in 3-6 days

0

10

Exmark 116-1370

Tube Seal Kit

$30.99

$

In Stock, Qty 5

0

11

Exmark 116-1371

Output Shaft Seal Kit

$139.99

$

In Stock, only 1 left!

0

12

Exmark 116-5469

Nose Cup-Uht

$295.99

$

In Stock, only 1 left!

0

13

Exmark 3257-42

Key-Woodruff 5/16 X 1

$6.49

$

In Stock, Qty 10

0

15

Exmark 116-3288

Housing-RH
(Superseded to 142-4461)

$742.99

$

Usually ships in 3-6 days

0

16

Exmark 116-8916

Motor-Hydraulic RH 240Cc

$1692.99

$

Usually ships in 3-6 days

0

17

Exmark 116-7901

Magnetic Plugs Service Kit

$109.99

$

Usually ships in 3-6 days

0

18

Exmark 116-1630

Check Valve ASM

$52.99

$

Usually ships in 3-6 days

0

19

Exmark 116-1631

Plug-Check (W/O-Ring)

$48.99

$

Usually ships in 3-6 days

0

20

Exmark 76-1900

O-Ring

$4.99

$

Usually ships in 3-6 days

0

21

Exmark 116-8662

O-Ring-Check Valve

$2.99

$

In Stock, Qty 20+

0

22

Exmark 116-8974

Screw-HH 1/2-20 X 2 1/4

$5.49

$

In Stock, Qty 13

0

23

Exmark 116-8975

Screw-HSH 1/2-20 X 2 3/4

$10.99

$

In Stock, only 2 left!

0

24

Exmark 116-9922

Hydraulic Tube Kit

$159.99

$

Usually ships in 3-6 days

0

25

Exmark 126-7711

Seal-Fan Drive

$22.99

$

In Stock, Qty 6

0

99

Exmark 116-1373

Flow Test Kit

$1127.99

$

Usually ships in 3-6 days

0

99

Exmark 116-4245

Puller-Pulley

$215.99

$

Usually ships in 3-6 days

0
