LZS651CKA484A2 - Exmark 48" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX (SN: 406294345 - 408644345) (Rev B) (2020) Hydraulic Assembly Parts Diagram

48" Lazer Z S-Series Zero-Turn Mower, Kawasaki FX

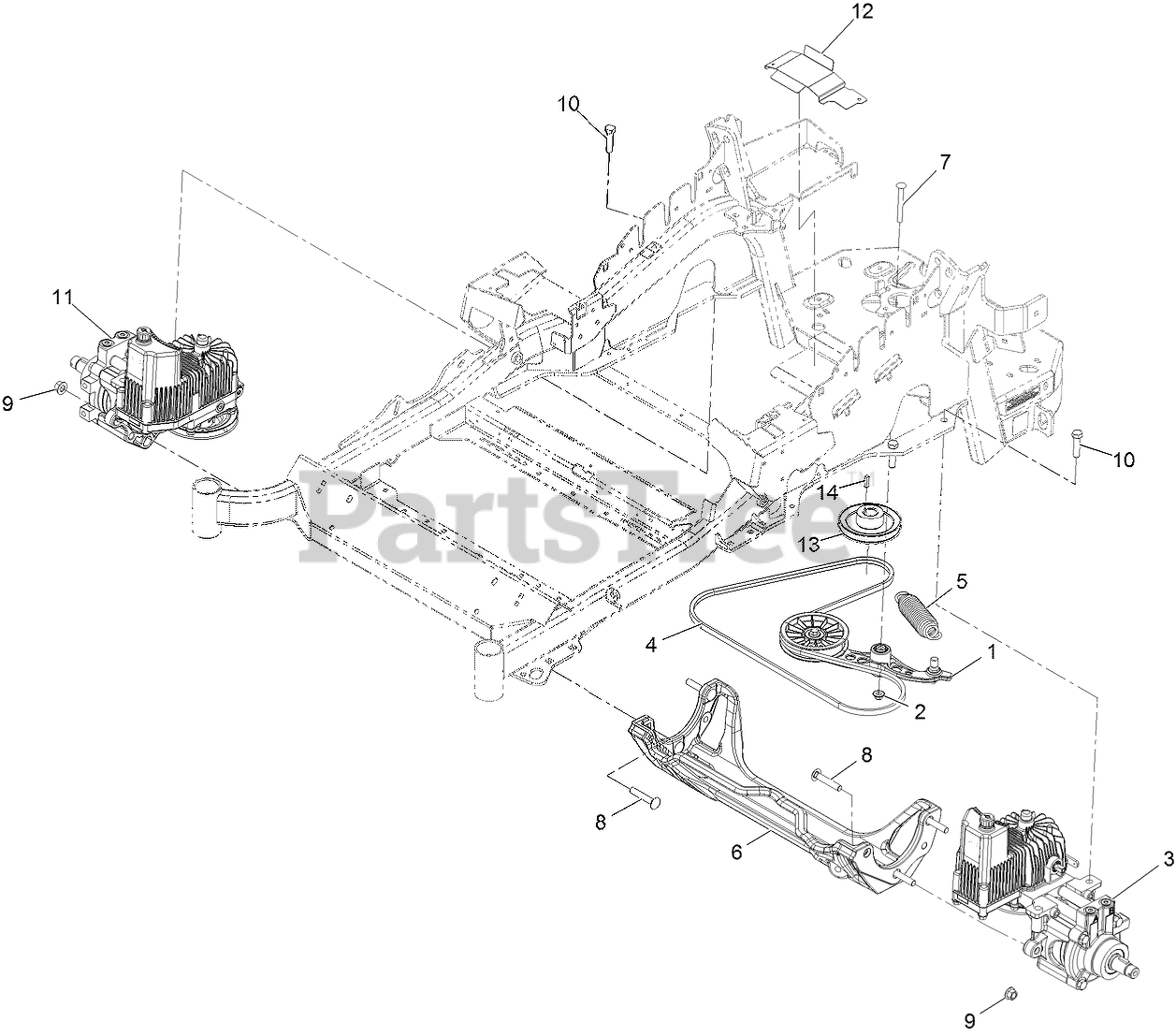

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-1255

PUMP IDLER ASM

$217.99

$

In Stock, Qty 13

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 135-7901

HYDRO-LH

$3070.99

$

Usually ships in 3-6 days

0

4

Exmark 126-8475

BELT-V

$45.99

$

In Stock, Qty 11

0

5

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 20+

0

6

Exmark 116-7558

CRADLE-HYDRO

$227.99

$

Usually ships in 3-6 days

0

7

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$7.99

$

In Stock, Qty 14

0

8

Exmark 126-0095

SCREW-CARR

$2.99

$

In Stock, only 3 left!

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

10

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

11

Exmark 135-7902

HYDRO-RH

$3070.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2999-01

GUARD-BELT

$38.99

$

Usually ships in 3-6 days

0

13

Exmark 116-1946

SHEAVE-PUMP, DRIVE

$74.99

$

In Stock, only 1 left!

0

14

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

99

Exmark 109-9828

OIL-HYD, (QUART)

Note: Not illustrated

$18.99

$

In Stock, Qty 20+

0

99

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$72.99

$

In Stock, Qty 20+

0

99

Exmark 116-1218

OIL-HYD, 1 GALLON

Note: Not illustrated

$71.99

$

In Stock, Qty 20+

0

99

Exmark 126-8103

KIT-HYDRO SERVICE, NO BELT

Note: Not illustrated

$254.99

$

In Stock, Qty 8

0
