LZS29PKA724 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, 29hp Kawasaki Propane (SN: 920000 - 999999) (2011) LP Valve, Tank and Hose Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, 29hp Kawasaki Propane

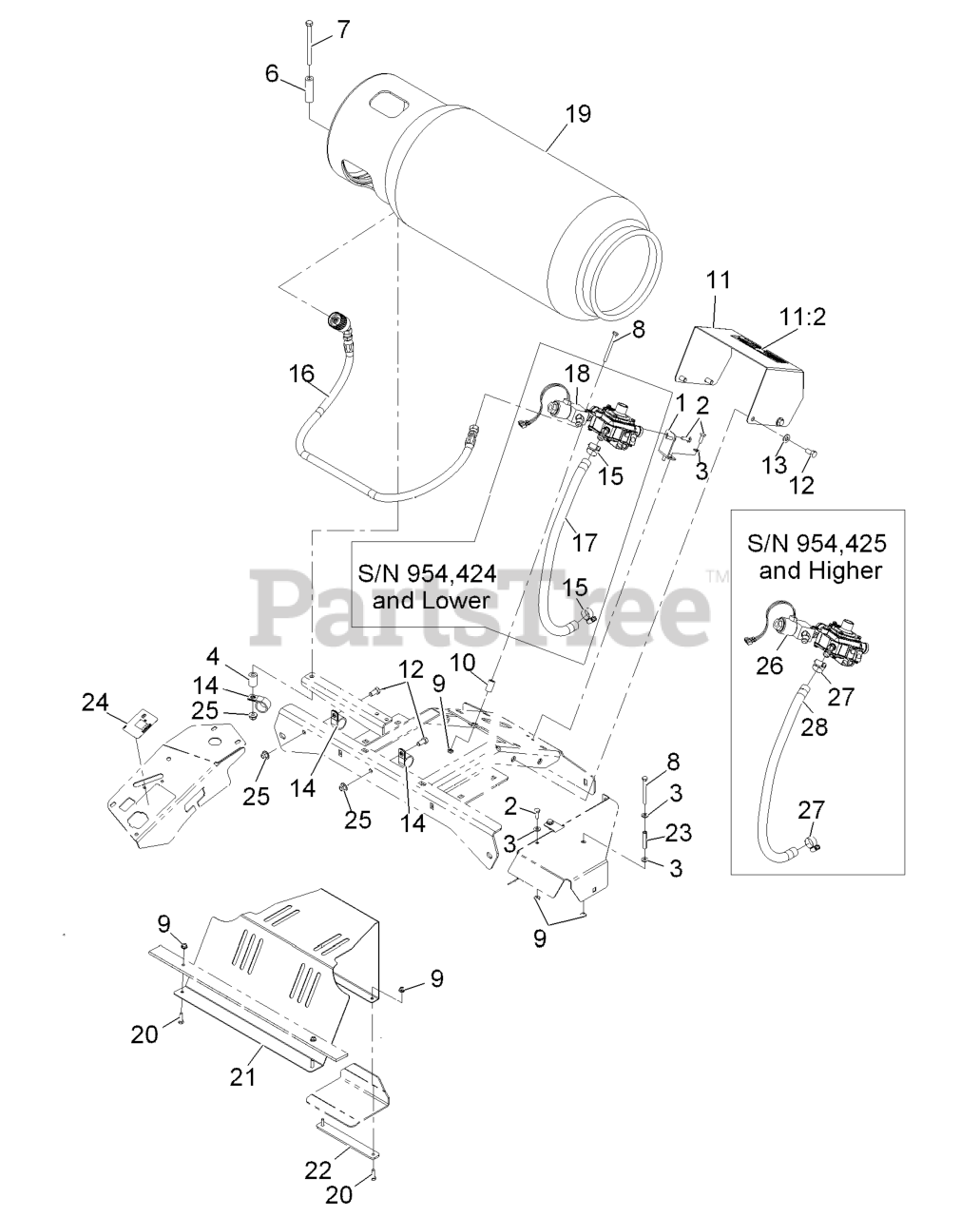

LP Valve, Tank and Hose Assembly Parts Diagram

  • Title
1

Exmark 116-2571-03

BRACKET-REGULATOR

$22.99

$

Usually ships in 3-6 days

0

2

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 103-1361

SPACER-HYDRO CONTROL, LH

$7.99

$

Usually ships in 3-6 days

0

6

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 2 left!

0

7

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

8

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

9

$1.49

$

In Stock, Qty 20+

0

10

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 116-2818

COVER ASM

$118.99

$

Usually ships in 3-6 days

0

11:2

Exmark 109-9906

DECAL-TANK REPLACEMENT

$18.99

$

In Stock, only 2 left!

0

12

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

13

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 97-1271

CLAMP-HOSE

$3.99

$

In Stock, only 2 left!

0

16

Exmark 116-2821

LPG FUEL HOSE ASM

$

$

Not available

17

Exmark 116-2568

HOSE-LP

$

$

Not available

18

Exmark 116-2554

LP SOLENOID REGULATOR AS

$1299.99

$

In Stock, Qty 6

0

19

Exmark 116-1694

126-4507
(Superseded to 126-4507)

$648.99

$

In Stock, only 2 left!

0

20

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Exmark 116-3358-03

SHEILD-FAN

$124.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

23

Exmark 56-7740

SPACER-SPLIT

$

$

Not available

24

Exmark 116-3446

DECAL-METER, HOUR

$60.99

$

Usually ships in 3-6 days

0

25

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Exmark 116-5638

116-9162
(Superseded to 116-9162)

$1037.99

$

Usually ships in 3-6 days

0

27

Exmark 1-543892

CLAMP-HOSE

$7.49

$

Usually ships in 3-6 days

0

28

Exmark 116-5637

116-7817
(Superseded to 116-7817)

$

$

Not available
