LZS29KA724 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, 29hp Kawasaki (SN: 920000 - 999999) (2011) Caster Wheel and Fork Assembly Parts Diagram

72" Lazer Z S-Series Zero-Turn Mower, 29hp Kawasaki

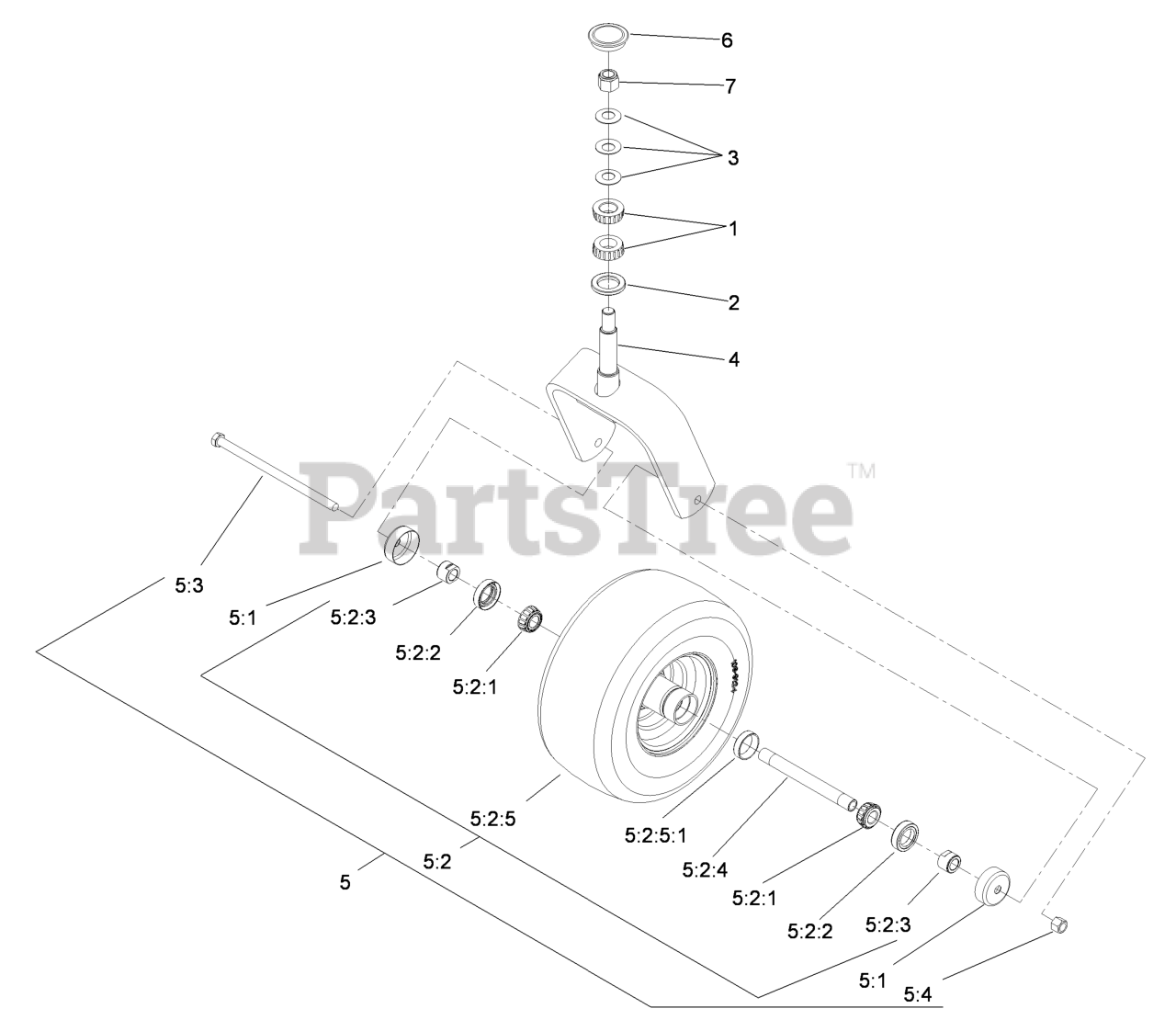

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

2

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

3

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

4

Exmark 103-1474-01

116-8888
(Superseded to 116-8888)

$185.99

$

In Stock, Qty 20+

0

5

Exmark 109-9127

WHEEL & TIRE ASM

$341.99

$

In Stock, Qty 18

0

5:1

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

5:2

Wheel And Tire Asm

Note: Not serviced separately

$

$

Not available

5:2:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

5:2:2

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

0

5:2:3

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

0

5:2:4

Exmark 103-5156

126-5361
(Superseded to 126-5361)

$19.99

$

In Stock, Qty 17

0

5:2:5

Exmark 109-9124

109-9127
(Superseded to 109-9127)

$341.99

$

In Stock, Qty 18

0

5:2:5:1

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

5:3

Exmark 325-39

SCREW-HH

$18.99

$

In Stock, Qty 18

0

5:4

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

7

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0
