Exmark LZS29EKC724 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, 29hp Kohler (SN: 920000 - 999999) (2011) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 109-7952

DECK STRUT ASM

$144.99

$

In Stock, only 2 left!

1:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

1:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

2

Exmark 109-5013

PANHARD ROD ASM

$142.99

$

In Stock, Qty 6

2:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

2:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

3

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 3 left!

4

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

5

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

6

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, Qty 6

7

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

8

Exmark 116-0818-03

132-4719

(Superseded to 132-4719) 

$44.99

$

In Stock, only 3 left!

9

Exmark 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 6

10

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

12

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, Qty 17

13

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 11

14

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

15

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 11

16

Exmark 109-7438

HOC ASM

$273.99

$

In Stock, only 1 left!

17

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 20+

18

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

19

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

20

Exmark 116-2217-03

126-2475-03

(Superseded to 126-2475-03) 

$172.99

$

Usually ships in 3-6 days

21

Exmark 116-0756

DECK LIFT CHAIN ASM

$14.99

$

In Stock, Qty 8

21:2

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 20+

21:3

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

22

Exmark 116-0559

BOLT-TAP

$6.49

$

Usually ships in 3-6 days

23

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

24

Exmark 109-9066

YOKE-ADJUST, DECK

$7.99

$

In Stock, only 2 left!

25

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

26

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

27

Exmark 116-0459-03

LIFT-DECK, REAR

$334.99

$

Usually ships in 3-6 days

29

Exmark 116-0780

SCREW-SHOULDER, HHF 1/2-13 X 1.12

$9.49

$

In Stock, only 3 left!

30

Exmark 116-0797-03

LINK-LIFT, DECK

$136.99

$

Usually ships in 3-6 days

31

Exmark 116-0000

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

32

Exmark 109-8757

PIN-HOC

$8.99

$

In Stock, only 3 left!

33

Exmark 116-1919-01

LEVER-FOOT

$99.99

$

Usually ships in 3-6 days

34

Exmark 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

35

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

Usually ships in 3-6 days

40

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

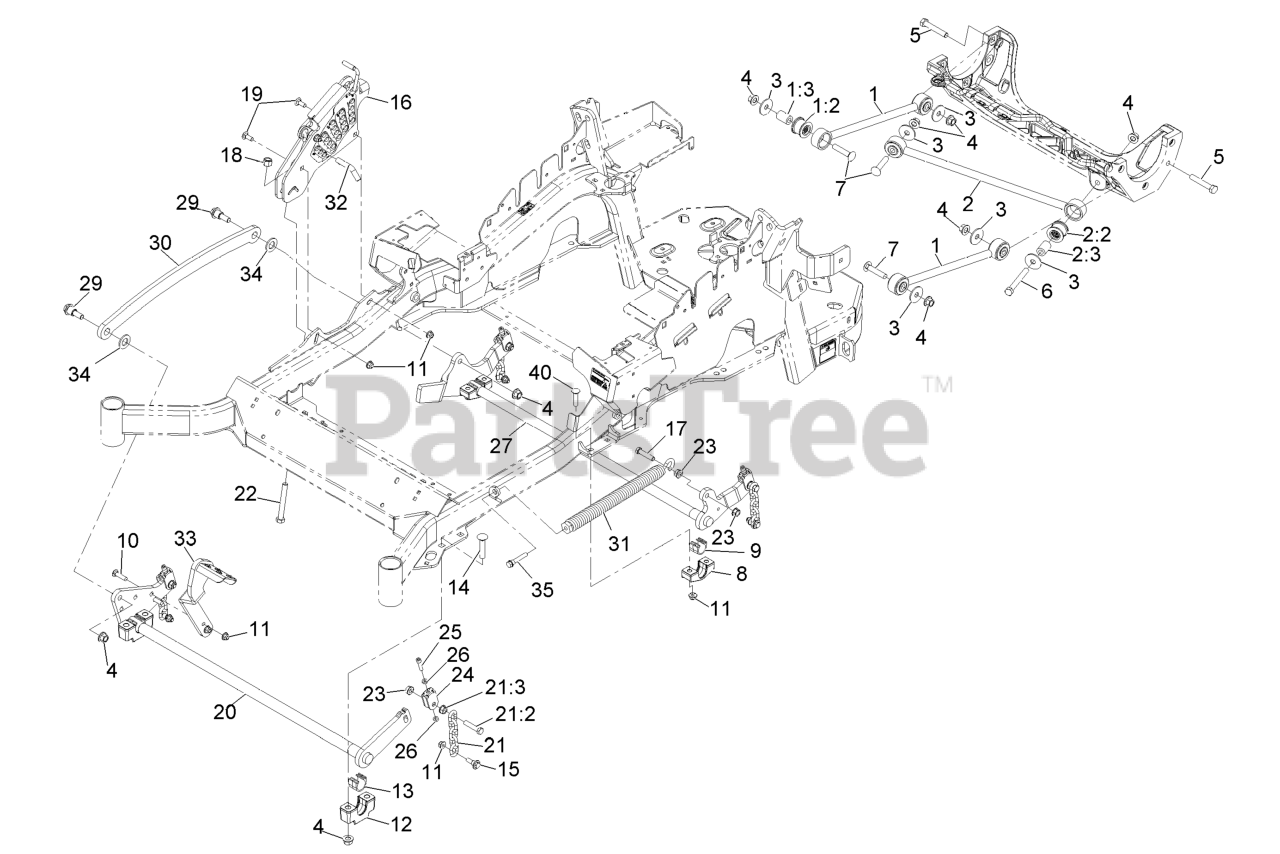

LZS29EKC724 - Exmark 72" Lazer Z S-Series Zero-Turn Mower, 29hp Kohler (SN: 920000 - 999999) (2011) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
