LZS23KC524 - Exmark 52" Lazer Z S-Series Zero-Turn Mower, 23hp Kohler (SN: 920000 - 999999) (2011) Controls Assembly Parts Diagram

52" Lazer Z S-Series Zero-Turn Mower, 23hp Kohler

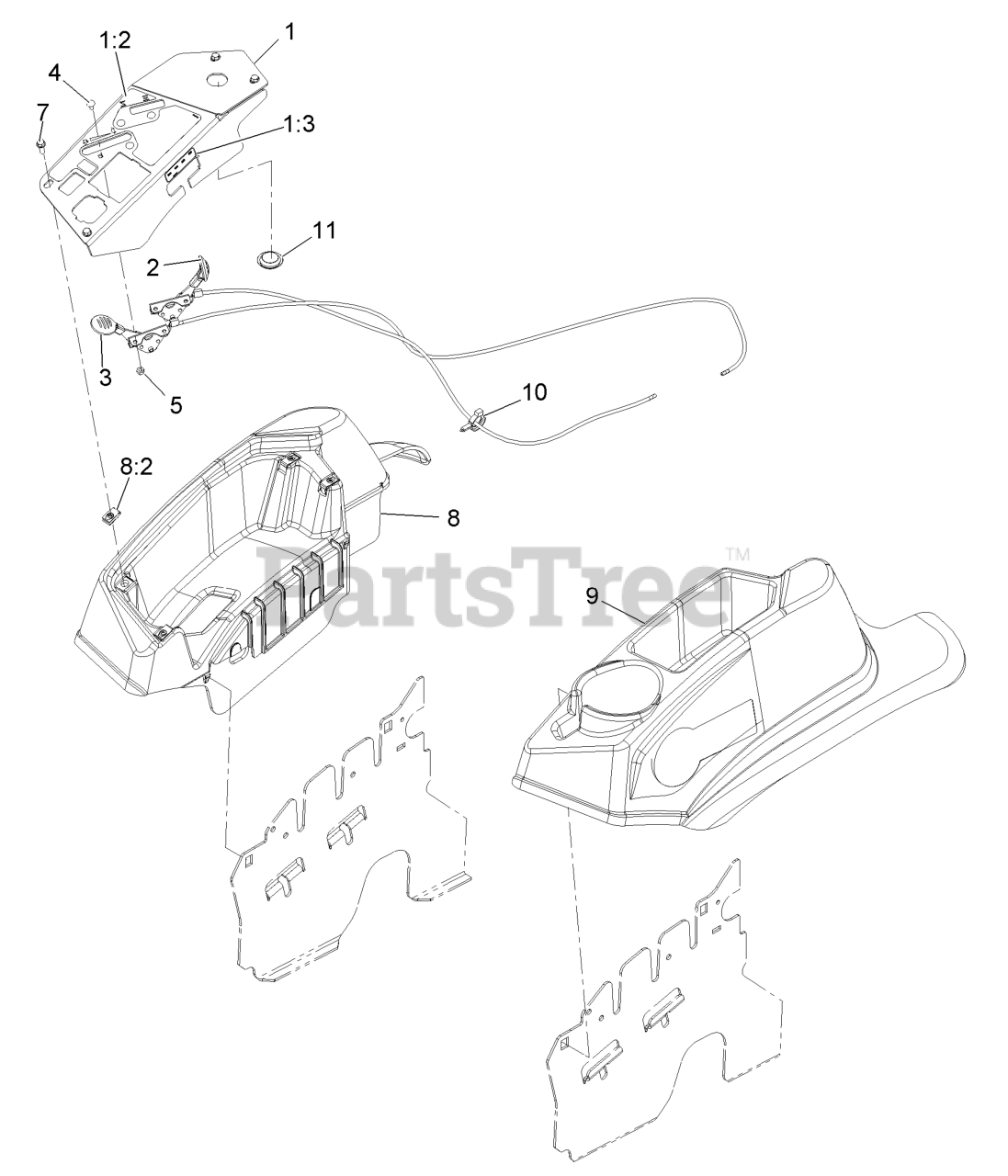

Controls Assembly Parts Diagram

  • Title

1

Exmark 116-1845

ASM,CONSOLE PANEL W/DECAL

$94.99

$

Usually ships in 3-6 days

0

1:2

Exmark 109-8483

DECAL-CONTROL PANEL

$21.99

$

In Stock, only 1 left!

0

1:3

Exmark 109-7330

DECAL-FUSE

$6.49

$

Usually ships in 3-6 days

0

2

Exmark 109-8165

ASM, CHOKE CABLE

$54.99

$

Usually ships in 3-6 days

0

3

Exmark 116-0969

ASM,THROTTLE CABLE

$49.99

$

In Stock, Qty 11

0

4

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

5

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

8

Exmark 116-1278

CONSOLE,RH AS ASM

$161.99

$

Usually ships in 3-6 days

0

8:2

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

9

Exmark 109-9457

CONSOLE, LH AS

$161.99

$

Usually ships in 3-6 days

0

10

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

11

Exmark 116-1875

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0
