LZS22KA484CA - Exmark 48" Lazer Z S-Series Zero-Turn Mower, 22hp Kawasaki, CARB (SN: 920000 - 999999) (2011) Deck Assembly Parts Diagram

48" Lazer Z S-Series Zero-Turn Mower, 22hp Kawasaki, CARB

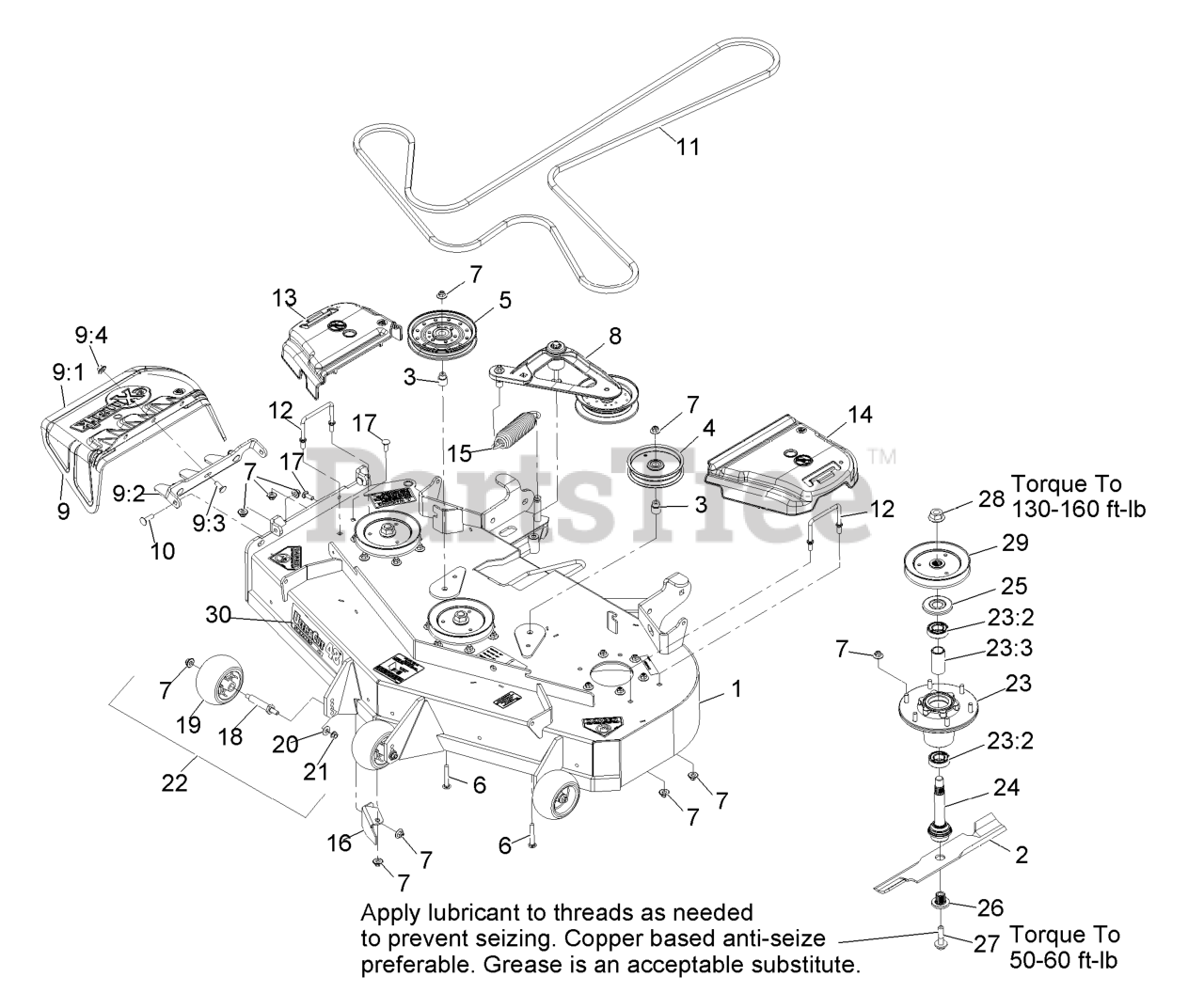

Deck Assembly Parts Diagram

  • Title

1

Exmark 109-9008

ASM,DECK W/DECALS 48

$3939.99

$

Usually ships in 3-6 days

0

2

Exmark 103-6401

103-6401-S
(Superseded to 103-6401-S)

$30.99

$

In Stock, Qty 15

0

2

Exmark 103-6391

103-6391-S
(Superseded to 103-6391-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$31.99

$

In Stock, Qty 20+

0

2

Exmark 103-6396

116-5177-S
(Superseded to 116-5177-S)

$31.99

$

In Stock, Qty 20+

0

2

Exmark 103-6386

103-6386-S
(Superseded to 103-6386-S)

$30.99

$

In Stock, Qty 20+

0

2

Exmark 103-6381

103-6381-S
(Superseded to 103-6381-S)

$34.99

$

In Stock, Qty 20+

0

3

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

4

Exmark 1-613098

PULLEY-IDLER

$49.99

$

In Stock, Qty 7

0

5

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$63.99

$

In Stock, Qty 16

0

6

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 18

0

7

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 3 left!

0

8

Exmark 116-3755

DECK IDLER ASM

$254.99

$

In Stock, only 2 left!

0

9

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

9:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

9:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

9:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

9:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 3 left!

0

10

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

11

Exmark 109-8070

BELT
(Superseded to 109-8070-SL)

$148.99

$

Usually ships in 3-6 days

0

12

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

13

Exmark 109-6935

COVER-BELT, RH

$37.99

$

In Stock, only 1 left!

0

14

Exmark 109-6936

COVER-BELT, LH

$37.99

$

In Stock, only 1 left!

0

15

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$27.99

$

In Stock, Qty 11

0

16

Exmark 109-9010-01

BAFFLE,DISCHARGE

$

$

Not available

17

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

18

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$26.99

$

In Stock, Qty 7

0

19

Exmark 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

20

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

21

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

22

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$53.99

$

In Stock, Qty 20+

0

23

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$167.99

$

In Stock, Qty 20+

0

23:2

Exmark 116-0720

BEARING-BALL

$22.99

$

Usually ships in 3-6 days

0

23:3

Exmark 116-3312

SPACER-BEARING

$9.99

$

In Stock, Qty 6

0

24

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 16

0

25

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 10

0

26

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

27

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

28

Exmark 104-0753

NUT-FLANGE

$4.49

$

In Stock, only 2 left!

0

29

Exmark 116-0674

SHEAVE,BLADE DRIVE 5.90

$76.99

$

In Stock, only 1 left!

0

30

Exmark 116-0033

DECAL,ULTRACUT 48 SERIES

$18.99

$

In Stock, only 1 left!

0
