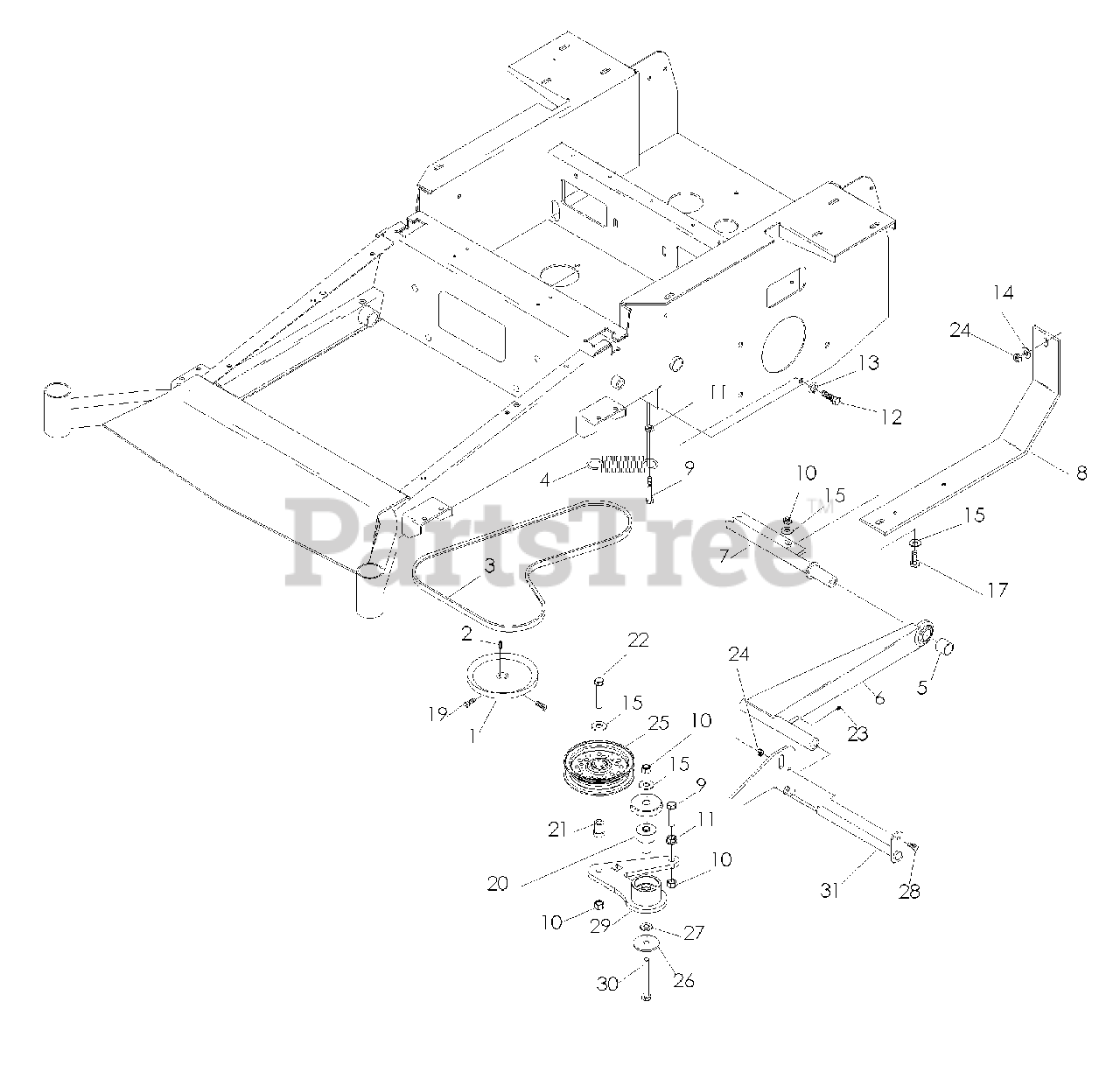

LZF 6127 (966956801) - Husqvarna 61" Zero-Turn Mower (2008-04) Hydro Pulley / Deck Struts Parts Diagram

61" Zero-Turn Mower

Hydro Pulley / Deck Struts Parts Diagram

  • Title

$

$

Not available

$8.99

$

In Stock, only 2 left!

0

3

Husqvarna 539104334

BELT, PUMP
(Superseded to 510201501)

$46.99

$

In Stock, Qty 8

0

$12.99

$

In Stock, Qty 6

0

5

Husqvarna 539104521

STRUT SPACER

$9.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539104390

STRUT WELDMENT, REAR

$302.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539132302

CROSS SHAFT

$

$

Not available

8

Husqvarna 539112634

SKID PLATE

$46.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990655

HCS 3/8-16 x 1 1/2

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539119007

BOLT, BLADE W/WASHER

$10.99

$

In Stock, only 3 left!

0

13

Husqvarna 539990247

LOCKWASHER 7/16

$

$

Not available

14

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539990517

WASHER 3/8 STD FLT

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539103433

HCS 1/2-13 x 3 1/4

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 539990563

HCS 3/8-16 x 1

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539102717

SCREW, SET

$3.99

$

In Stock, only 4 left!

0

20

Husqvarna 539130205

PIVOT, BEARING

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 539976695

IDLER FLANGE BUSHING

$

$

Not available

22

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 10

0

23

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539976688

PULLEY, IDLER

$

$

Not available

26

Husqvarna 539111897

WASHER 3/8 SPEC

$

$

Not available

27

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539130392

ARM, IDLER

$48.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

31

Husqvarna 539102619

PIVOT PIN WELDMENT

$40.99

$

In Stock, only 3 left!

0
