LZF 6127 (966956801) - Husqvarna 61" Zero-Turn Mower (2008-04) 61" Deck Parts Diagram

61" Zero-Turn Mower

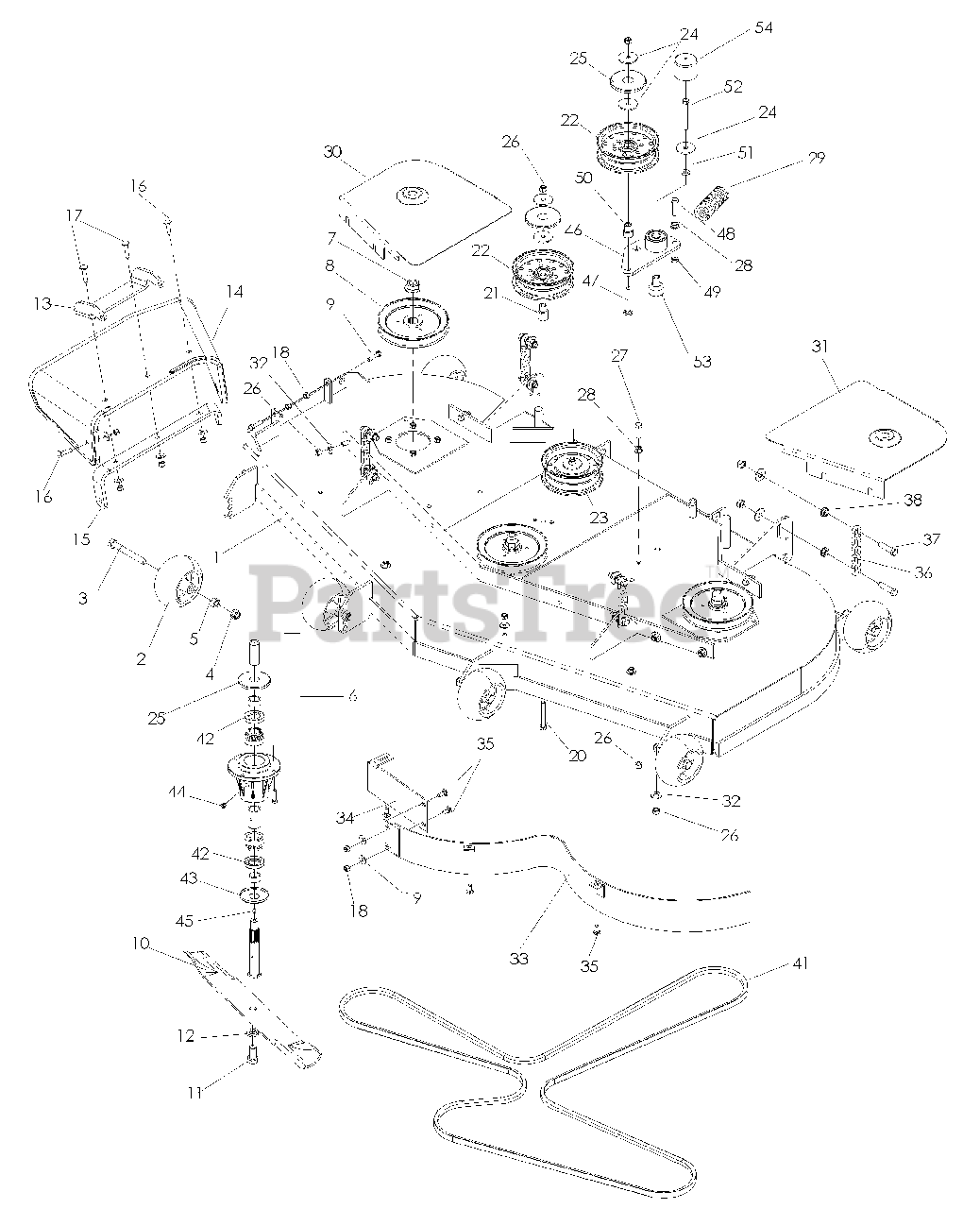

61" Deck Parts Diagram

  • Title
1

Husqvarna 510063302

DECK W/DECALS

$

$

Not available

2

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

3

Husqvarna 539108366

HCS 1/2-13 x 4

$6.99

$

In Stock, Qty 17

0

4

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539990258

NUT 1/2-13 HEX

$4.99

$

In Stock, Qty 14

0

6

Husqvarna 539131383

HOUSING ASSM, 52/61
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

7

Husqvarna 539130653

NUT, FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 539112125

PULLEY, 61

$48.99

$

In Stock, only 2 left!

0

9

Husqvarna 539990627

HCS 5/16-18 x 1 1/4

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 539101733

BLADE, 21"

$21.99

$

In Stock, Qty 20+

0

11

Husqvarna 539103299

HCS 5/8-18 x 1 1/4

$

$

Not available

12

Husqvarna 539990333

WASHER 5/8 SLW

$1.99

$

In Stock, Qty 6

0

13

Husqvarna 539130917

PIVOT BRACKET, CHUTE

$148.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539130901

RUBBER CHUTE, 52/61

$91.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539130920

BRACKET, REINFORCE
(Superseded to 592964402)

$31.99

$

In Stock, only 2 left!

0

16

Husqvarna 539100472

RHSNB 5/16-18 x 1 1/4

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539102933

RHSNB 5/16-18 x 1 1/2

$

$

Not available

18

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539102612

HCS 3/8-16 x 2 3/4

$5.99

$

In Stock, only 3 left!

0

21

Husqvarna 539103295

BUSHING, IDLER

$14.99

$

In Stock, only 4 left!

0

22

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 4 left!

0

23

Husqvarna 539103258

IDLER PULLEY

Note: (TALL)

$53.99

$

In Stock, only 1 left!

0

24

Husqvarna 539111897

WASHER 3/8 SPECIAL

$

$

Not available

25

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

26

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539976941

HCS 3/8-16 x 1 1/4

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

30

Husqvarna 539108611

61 BELTSHIELD RT

$34.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539108610

61 BELTSHIELD LT
(Superseded to 539108608)

$23.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990517

WASHER 3/8 STD FLT

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539105465

BAFFLE MAIN

$

$

Not available

34

Husqvarna 539105461

BAFFLE CENTER

$97.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539108073

HCS 7/16-14 x 1 3/4

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539102582

NUT 7/16-14 HEX WHIZ LK

$

$

Not available

39

Husqvarna 539104864

WASHER 7/16 FLAT
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539119124

NUT 7/16-14 HEX NYLOC

$

$

Not available

41

Husqvarna 539104336

BELT, DECK 61"
(Superseded to 510201301)

$

$

Not available

42

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

43

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

44

Husqvarna 539977326

GREASE POPPET

$13.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539130391

ARM, IDLER - W/BEARINGS

$

$

Not available

47

Husqvarna 539130235

RHSNB 3/8-16 x 2 3/4

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539107042

HCS 3/8-16 x 1 1/2 GR 8

$3.99

$

In Stock, Qty 6

0

49

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

50

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

51

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

52

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

53

Husqvarna 539130205

PIVOT, BEARING

$4.99

$

In Stock, only 1 left!

0

54

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0
