LZF 5227 (966956701) - Husqvarna 52" Zero-Turn Mower (2009-07) PROTECTION FRAME Parts Diagram

52" Zero-Turn Mower

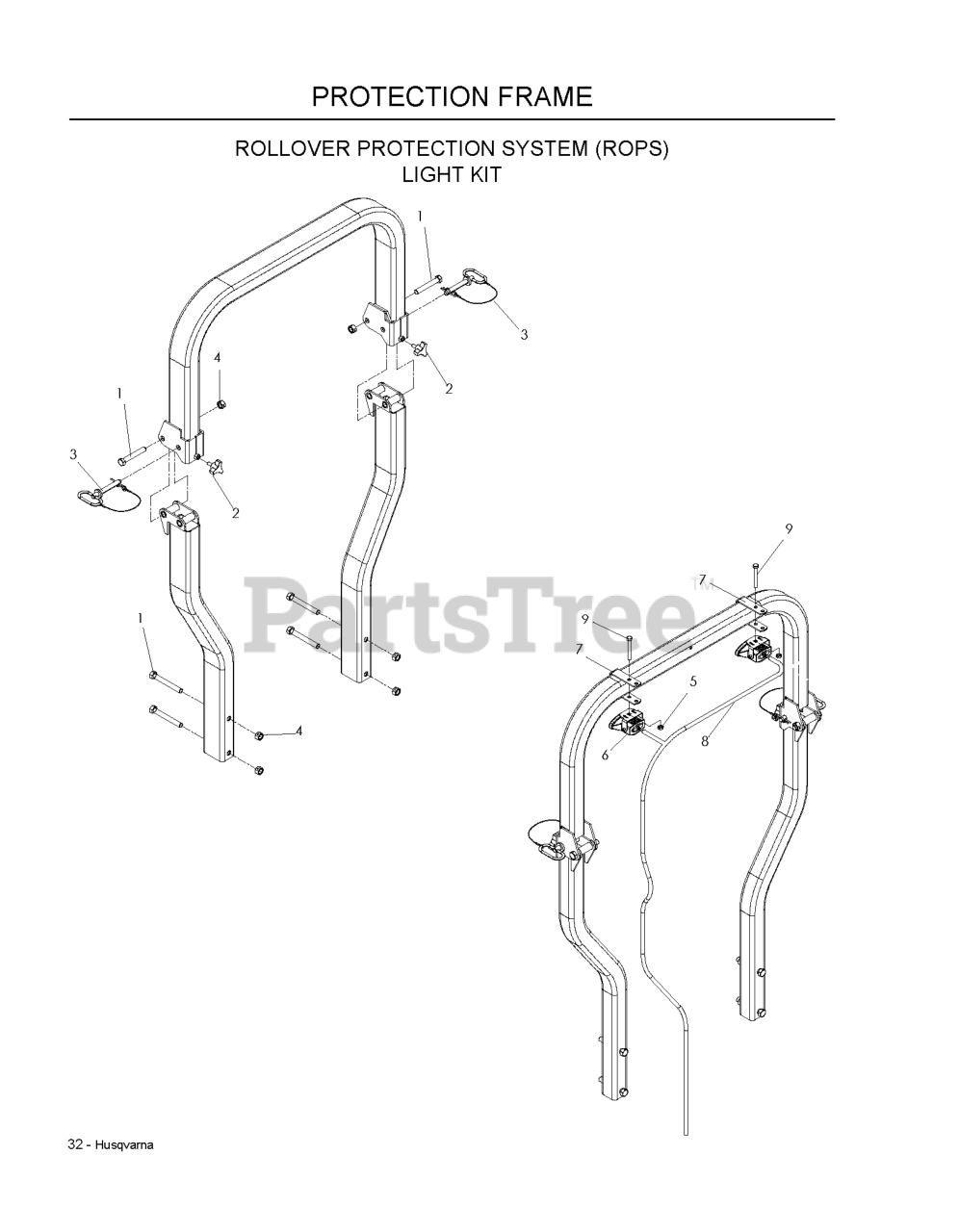

PROTECTION FRAME Parts Diagram

  • Title

5

Husqvarna 539107897

NUT 5/16-18 HEX JAM ZD

Note: LIGHT KIT

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539111577

LIGHT 35W W/BRKT

Note: LIGHT KIT

$78.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539111578

LIGHT MOUNTING BRACKET

Note: LIGHT KIT

$11.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539200100

NUT 1/2-13 HEX CNTRLK GR 5 ZD

$6.49

$

In Stock, only 4 left!

0

Husqvarna 539976856

TIE, PLASTIC

Note: NOT SHOWN

$5.99

$

Usually ships in 3-10 days

0

Husqvarna 539111444

ROLL OVER PROTECTION SYSTEM

Note: NOT SHOWN

$

$

Not available

Husqvarna 539111815

BULB, 12V 35 WATT

Note: NOT SHOWN

$12.99

$

Usually ships in 3-10 days

0

Husqvarna 539130359

SEAT BELT, RETRACTABLE
(Superseded to 596322701)

Note: NOT SHOWN

$136.99

$

In Stock, only 1 left!

0

Husqvarna 539111579

LIGHT KIT COMPLETE

Note: NOT SHOWN

$

$

Not available

8

Husqvarna 539111580

LIGHT HARNESS

Note: LIGHT KIT

$75.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539111036

PIN, 1/2" W/LANYARD
(Superseded to 525865001)

$51.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539991046

BOLT 5/16C X 2 1/2

Note: LIGHT KIT

$4.99

$

In Stock, Qty 8

0

2

Husqvarna 539132083

KNOB W/STUD 3/8-16 X 1.5

$24.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0
