LZF 5227 (966956701) - Husqvarna 52" Zero-Turn Mower (2009-07) HYDRAULIC PUMP - MOTOR Parts Diagram

52" Zero-Turn Mower

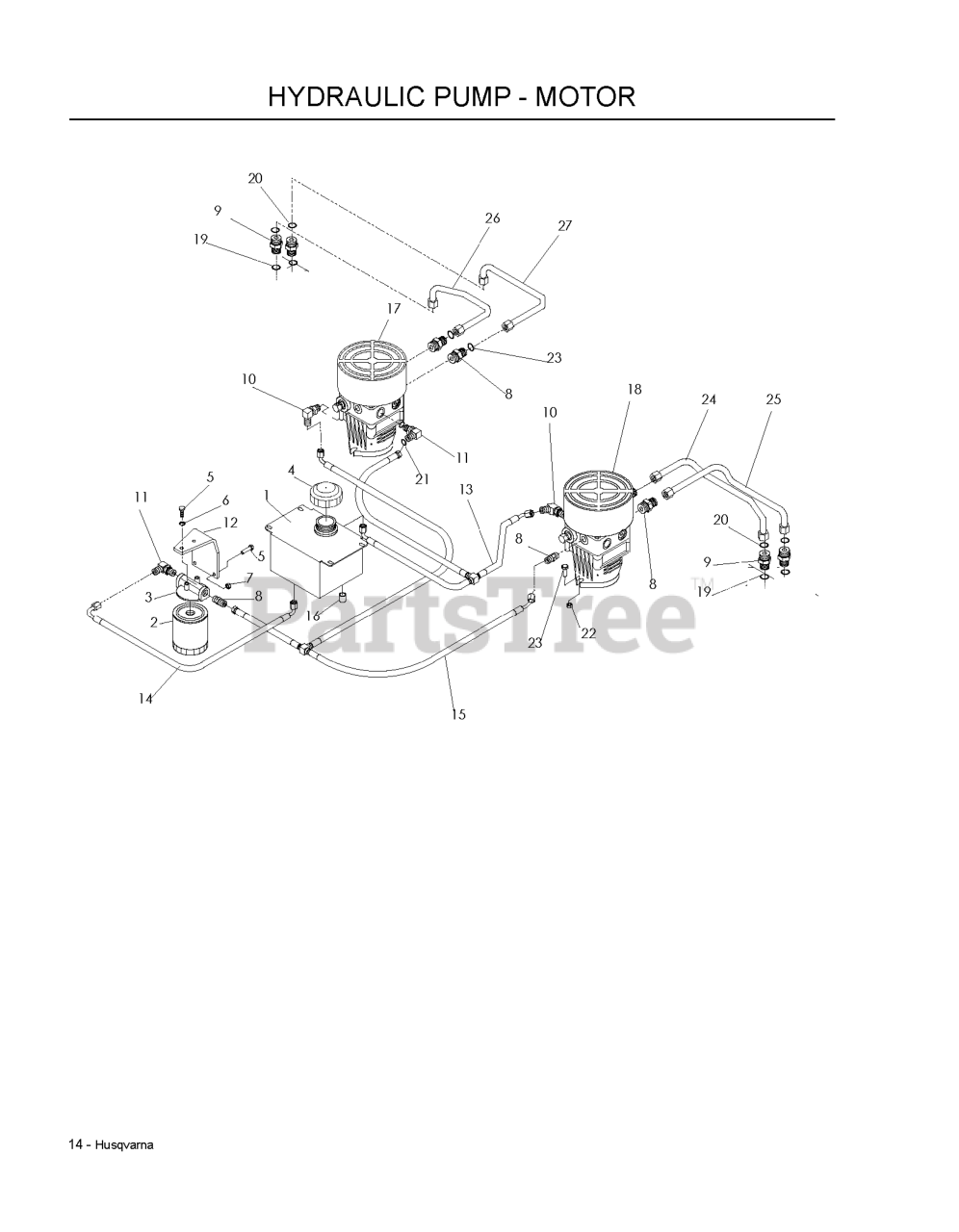

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

1

$

$

Not available

12

Husqvarna 539106933

OIL FILTER BRKT

$27.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539113782

HYDRAULIC FITTING

$7.49

$

In Stock, only 3 left!

0

15

Husqvarna 539132289

HOSE, T-ASM SUPPLY

$

$

Not available

22

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

6

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539132286

HOSE, LPA - MB LINE

$36.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539101238

ELBOW, F6801-6-6-0 90 DEGREE

$15.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539132288

HOSE, TANK - FILTER LINE
(Superseded to 539132287)

$34.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539132287

HOSE, LPB - MA LINE

$34.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105168

NUT 9/16-18 JIC CAP

$3.99

$

In Stock, only 3 left!

0

25

Husqvarna 539132285

HOSE, RPB - MB LINE

$36.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539132142

HG_PUMP, 10CC W/FAN LEFT

Note: LT

$1942.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539132316

45 DEG ADJ ELBOW

$12.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

3

Husqvarna 539101165

FILTER HEAD

$

$

Not available

17

Husqvarna 539132143

HG_PUMP, 10CC W/FAN RIGHT

Note: RT

$1942.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539132290

HOSE, T-ASM RETURN

$

$

Not available

7

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

4

Husqvarna 539101202

HYDRAULIC CAP

$24.99

$

In Stock, only 1 left!

0

24

Husqvarna 539132284

HOSE, RPA - MA LINE

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102606

HYDRAULIC OIL FILTER

$44.99

$

In Stock, Qty 8

0

5

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

$4.99

$

In Stock, only 3 left!

0
