LZF 5227 (966956701) - Husqvarna 52" Zero-Turn Mower (2009-07) 52"/132CM CUTTING DECK Parts Diagram

52" Zero-Turn Mower

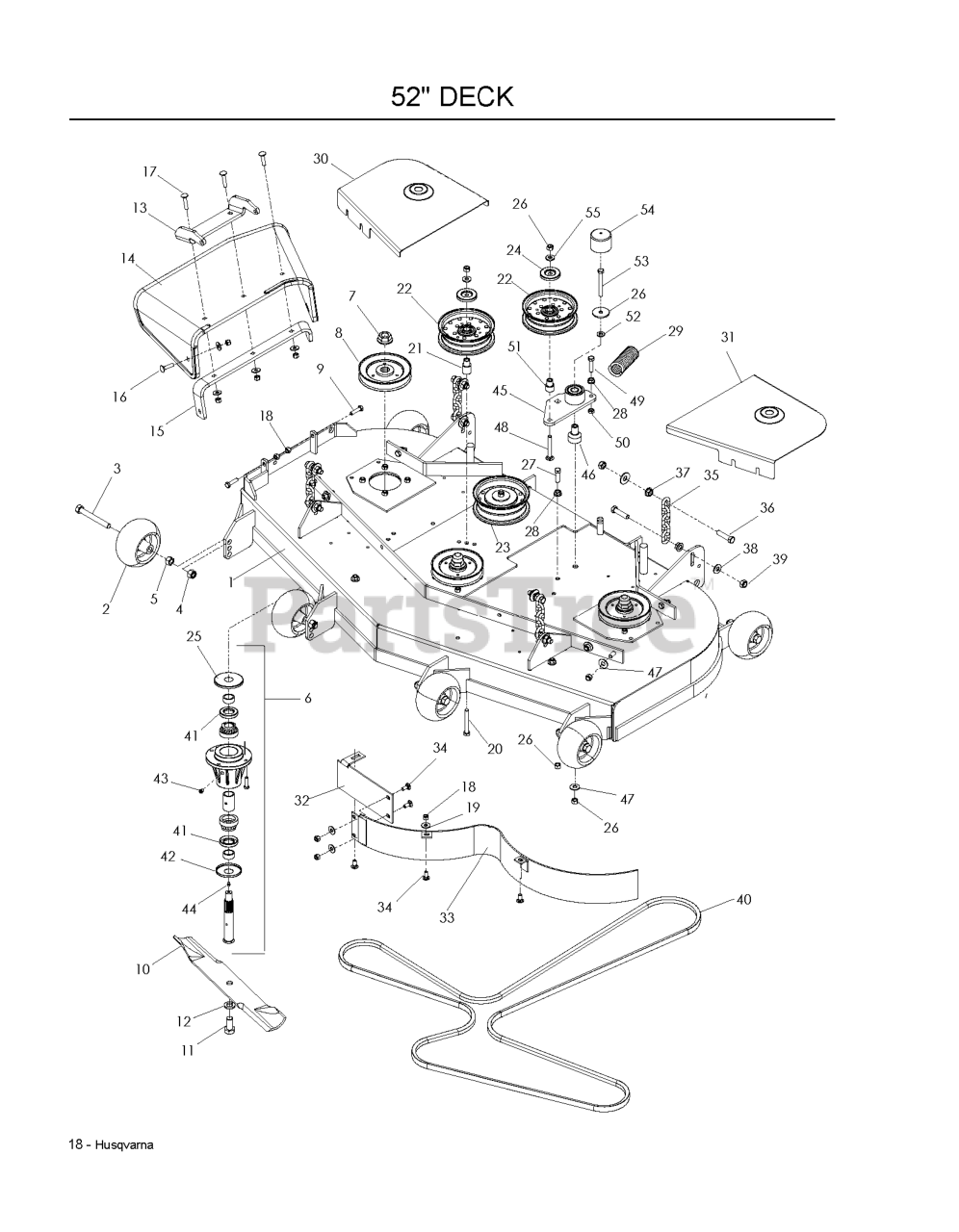

52"/132CM CUTTING DECK Parts Diagram

  • Title
5

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

19

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539130901

CHUTE, RUBBER DISCHARGE 52/61"

$91.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

7

Husqvarna 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

23

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, only 1 left!

0

29

Husqvarna 539105192

DECK SPRING

$

$

Not available

46

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

1

Husqvarna 510063102

DECK W/DECALS 52" HUS

Note: DECK W/DECALS

$

$

Not available

53

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

54

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

41

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

39

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

25

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

32

Husqvarna 539105457

MAIN BAFFLE 52"

$267.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539130391

ARM-IDLER W/BRG

$

$

Not available

10

Husqvarna 539100341

BLADE OEM 18"

$

$

Not available

27

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 539108908

RT 52 SHIELD, ORANGE
(Superseded to 539114202)

Note: RT

$103.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

24

Husqvarna 510254501

DUST SHIELD

$

$

Not available

31

Husqvarna 539108910

LT 52 SHIELD ORANGE
(Superseded to 539114204)

Note: LT

$103.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

21

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

13

Husqvarna 539130917

PIVOT BRACKET - CHUTE

$148.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.99

$

In Stock, Qty 17

0

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539105453

CENTER BAFFLE - 52"

$

$

Not available

15

Husqvarna 539130920

BRKT, REINF - CHUTE 52/61"
(Superseded to 592964402)

$31.99

$

In Stock, only 2 left!

0

40

Husqvarna 539104335

BELT, DECK
(Superseded to 522795901)

$109.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

16

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0

55

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

47

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

6

Husqvarna 539131383

HOUSING ASM, 52/61
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

22

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

9

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

43

Husqvarna 539977326

PLUG-VENTED

$13.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112124

PULLEY, 52

$45.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539108073

HCS 7/16 - 14 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

38

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

42

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0
