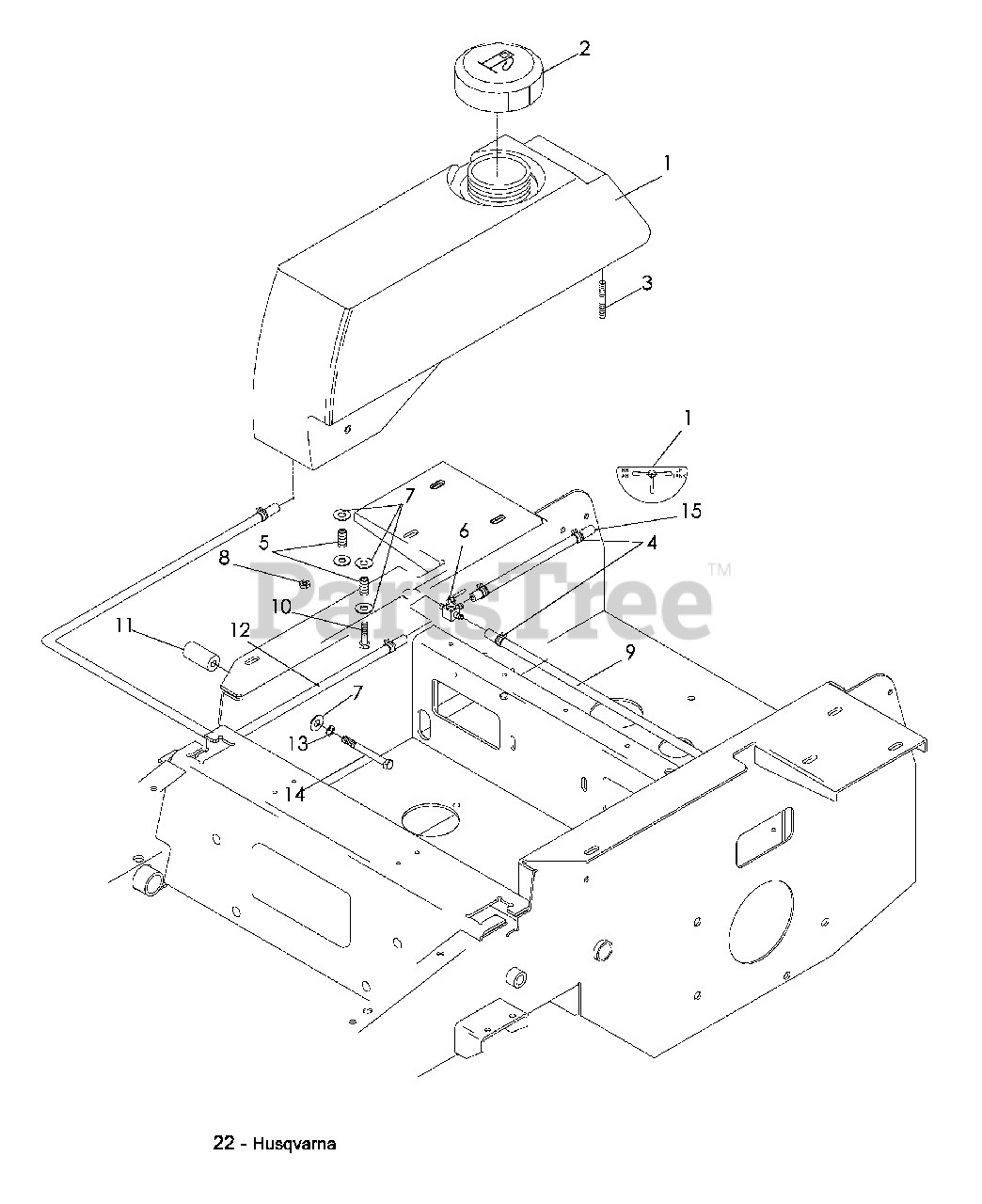

LZF 5227 (966956701) - Husqvarna 52" Zero-Turn Mower (2008-06) Fuel System Parts Diagram

52" Zero-Turn Mower

Fuel System Parts Diagram

  • Title

1

Husqvarna 539104410

FUEL TANK RT

$

$

Not available

Husqvarna 539104409

FUEL TANK LT

$

$

Not available

2

Husqvarna 539106188

FUEL CAP
(Superseded to 539130394)

$31.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102502

STUD

$10.99

$

In Stock, only 4 left!

0

4

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 539102679

FUEL VALVE

$56.99

$

In Stock, only 2 left!

0

7

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539990184

NUT 5/16-18 CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539105280

FUEL LINE

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539104897

TANK SP ACER

$7.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539922091

FUEL LINE

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

14

Husqvarna 539102335

HCS 5/16-18 x 4

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539108212

FUEL LINE

$2.49

$

In Stock, Qty 5

0

16

Husqvarna 539102670

DECAL, FUEL LINE

$3.99

$

Usually ships in 3-10 days

0
