LZE801GKA60RA1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 316000000 - 399999999) (2016) Motion Control Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

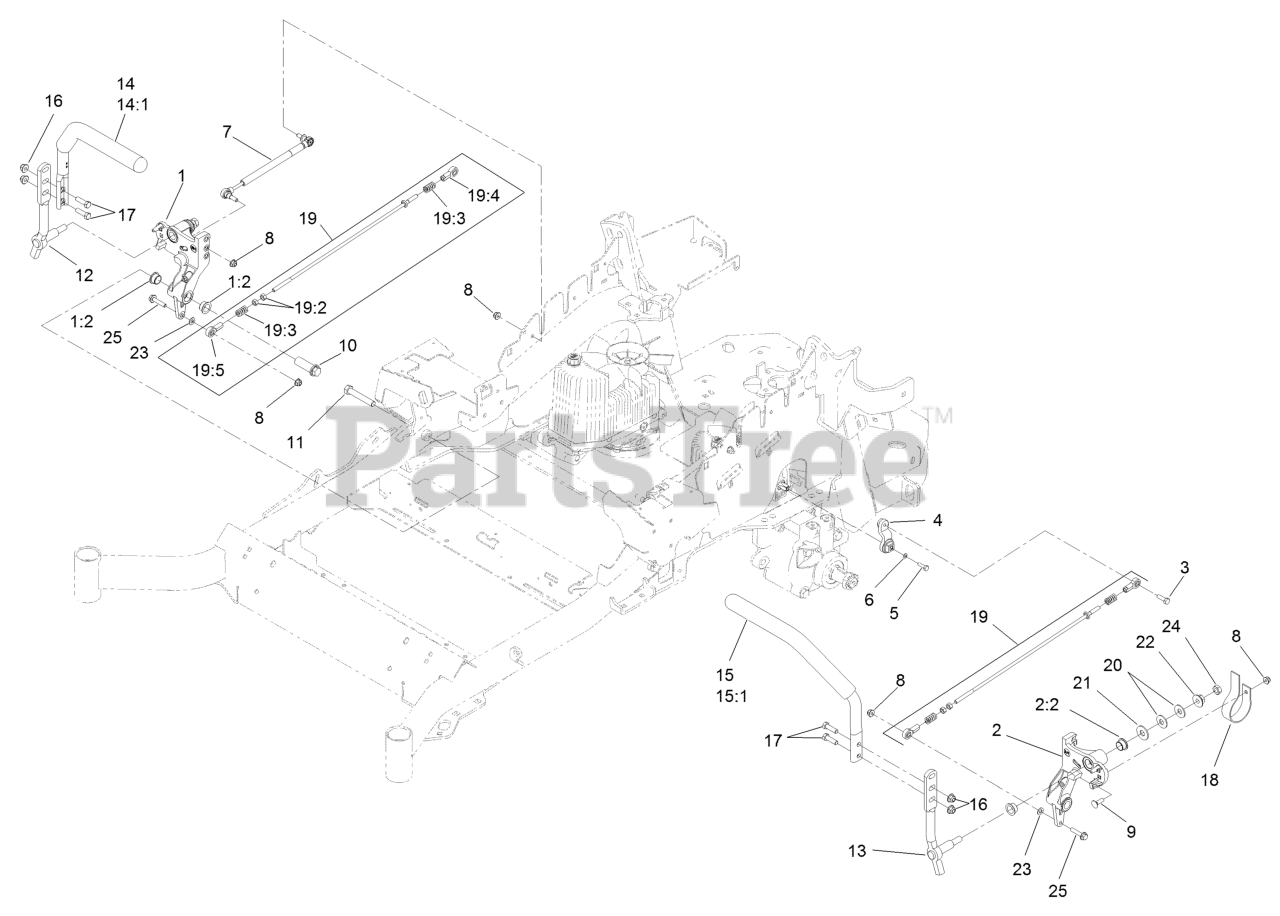

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 116-0880

RH MOTION CONTROL AND BUSHING ASM

$59.99

$

In Stock, only 1 left!

0

1:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

2

Exmark 116-0881

LH MOTION CONTROL AND BUSHING ASM

$59.99

$

In Stock, only 1 left!

0

2:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

3

Exmark 116-0648

SCREW-HH, THREAD LOCKING

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-4581

ARM-CONTROL, PUMP

$9.49

$

In Stock, only 4 left!

0

5

Exmark 9080046

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 16

0

6

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

7

Exmark 116-0027

DAMPER-CONTROL, MOTION
(Superseded to 142-8117)

$103.99

$

Usually ships in 3-6 days

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

10

Exmark 109-5891

HUB-THREADED

$14.99

$

In Stock, only 2 left!

0

11

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

12

Exmark 116-0039

LEVER-CONTROL MOTION, RH

$53.99

$

In Stock, only 1 left!

0

13

Exmark 116-0040

LEVER-CONTROL MOTION, LH

$53.99

$

In Stock, only 1 left!

0
