LZE751GKA72RA1 - Exmark 72" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

72" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

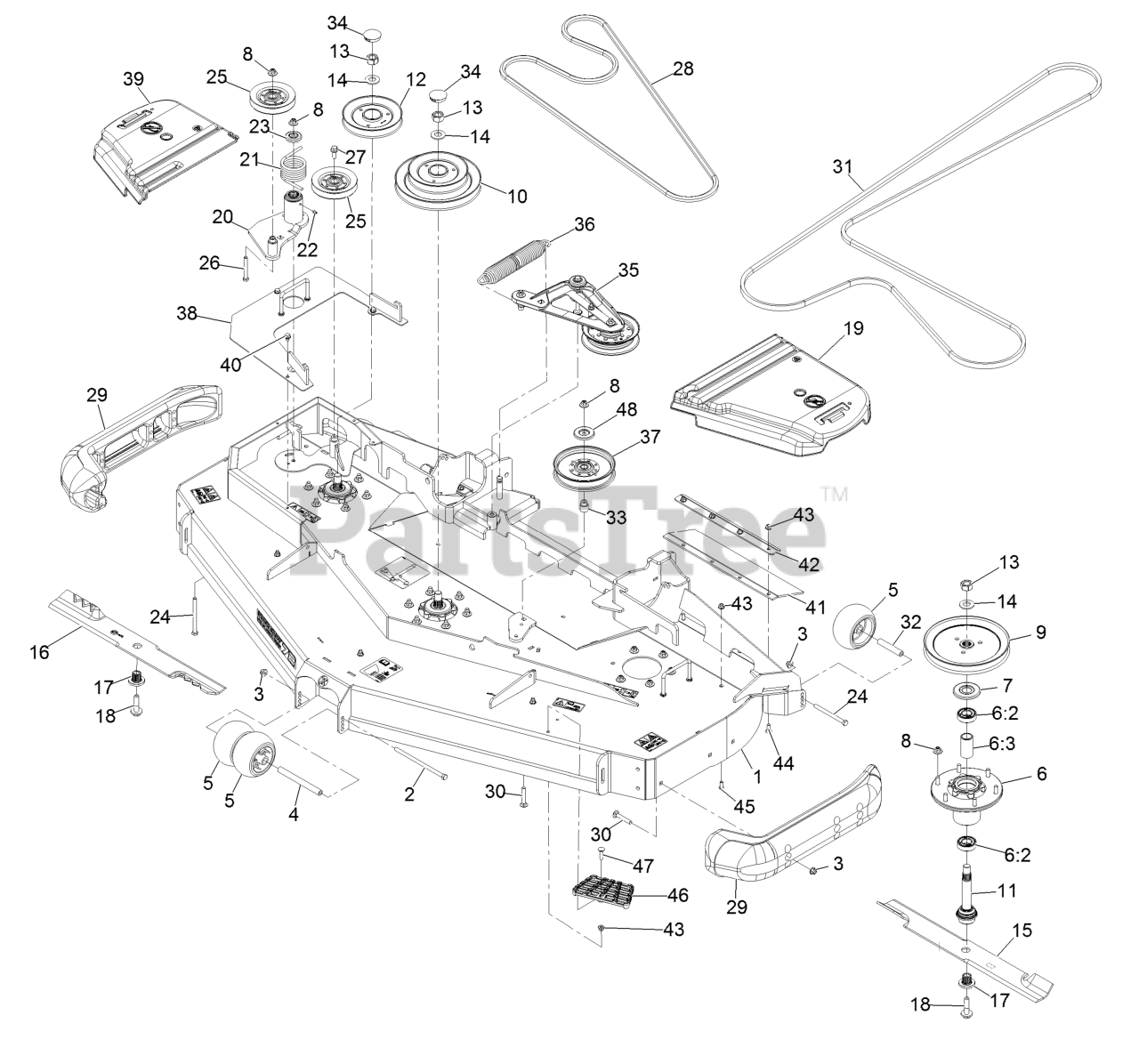

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-9827

Deck-Rd72 Nlz, W/Decals

$3545.99

$

Usually ships in 3-6 days

0

2

Exmark 108-5388

Screw-HH 3/8-16 X 7 3/8

$15.99

$

In Stock, only 2 left!

0

3

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 98-5967

Spacer-Wheel

$15.99

$

In Stock, Qty 20+

0

5

Exmark 603299

Roller-Scalp, Anti

$

$

Not available

6

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$158.99

$

In Stock, Qty 20+

0

6:2

Exmark 116-0720

Bearing-Ball

$22.99

$

In Stock, Qty 20+

0

6:3

Exmark 116-3312

Spacer-Bearing

$9.49

$

In Stock, Qty 5

0

7

Exmark 116-1286

Guard,Bearing Top .989

$5.49

$

In Stock, Qty 20+

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-1377

Sheave,Blade Drive 8.74

$126.99

$

In Stock, Qty 20+

0

10

Exmark 126-0353

Sheave, Double 72Rd

$167.99

$

In Stock, only 3 left!

0

11

Exmark 116-3341

ASM-Spindle And Seal

$89.99

$

In Stock, Qty 20+

0

12

Exmark 126-0354

Sheave-Rd Rev Drive Series 4

$94.99

$

In Stock, only 3 left!

0

13

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 20+

0

14

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 20+

0

15

Exmark 103-6389

Blade, Low Lift (72")
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 20+

0

15

Exmark 103-6404

Blade, Notched (72")
(Superseded to 103-6404-S)

$44.99

$

In Stock, Qty 20+

0

15

Exmark 116-5171

Blade-Extreme 2, 24.50"
(Superseded to 116-5171-S)

$44.99

$

In Stock, Qty 20+

0

16

Exmark 116-8502

Blade-Low Lift 24.50, Rd72
(Superseded to 116-8502-S)

$38.99

$

In Stock, only 2 left!

0

16

Exmark 116-8503

Blade-Extreme 2-24.50, Rd72
(Superseded to 116-8503-S)

$41.99

$

In Stock, Qty 20+

0

17

Exmark 103-3037

Bushing, Splined

$22.99

$

In Stock, Qty 20+

0

18

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

19

Exmark 109-6938

Cover-Belt, LH

$96.99

$

In Stock, Qty 20+

0

20

Exmark 126-0853

Idler ASM

$254.99

$

Usually ships in 3-6 days

0

21

Exmark 108-1921

Spring-Torsion

$30.99

$

Usually ships in 3-6 days

0

22

Exmark 302-19

Zerk-1/4-28 Str

$2.49

$

In Stock, Qty 20+

0

23

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 20+

0

24

Exmark 323-23

Screw-HH 3/8-16 X 4-1/2

$5.49

$

In Stock, Qty 20+

0

25

Exmark 126-1478

Sheave

$50.99

$

In Stock, only 2 left!

0

26

Exmark 323-13

Screw-HH 3/8-16 X 2 3/4

$3.99

$

In Stock, Qty 20+

0

27

Exmark 3234-11

Screw-HH Flg 3/8-16 X 1

$4.49

$

In Stock, Qty 20+

0

28

Exmark 116-8501

Belt

$125.99

$

Usually ships in 3-6 days

0

29

Exmark 112-1479

Skid-Bumper, Deck

$104.99

$

Usually ships in 3-6 days

0

30

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2

$6.99

$

In Stock, Qty 11

0

31

Exmark 109-8070

Belt
(Superseded to 109-8070-SL)

$148.99

$

Usually ships in 3-6 days

0

32

7912

Tube-Spanner

$

$

Not available

33

Exmark 633456

Bushing, Idler

$

$

Currently unavailable

34

Exmark 116-2253

Plug,Black Nylon 1.75

$3.49

$

In Stock, only 4 left!

0

35

Exmark 126-1720

Deck Idler ASM

$254.99

$

In Stock, only 2 left!

0

36

Exmark 116-6317

Spring-Extension

$28.99

$

In Stock, Qty 20+

0

37

Exmark 126-9189

Idler-Pulley, Flat 6.00X1.00

$62.99

$

In Stock, Qty 5

0

38

Exmark 125-9374-01

Cover-Reverse Drive

$149.99

$

Usually ships in 3-6 days

0

39

Exmark 116-0094

Cover-Belt, RH

$86.99

$

In Stock, Qty 15

0

40

Exmark 9266934

Screw-HWH 5/16 X 1/2 Tf

$8.99

$

In Stock, only 3 left!

0

41

Exmark 125-9380

Guard-Tire

$26.99

$

In Stock, only 2 left!

0

42

Exmark 126-0414-01

Support-Outer Flap

$23.99

$

Usually ships in 3-6 days

0

43

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

44

Exmark 3230-16

Bolt-Carriage 5/16-18 X 7/

$2.99

$

In Stock, Qty 16

0

45

Exmark 3274-55

Screw-Button Head 5/16-18 X 3/4

$5.49

$

In Stock, Qty 13

0

46

Exmark 126-4781-03

Step-Deck

$28.99

$

In Stock, only 1 left!

0

47

Exmark 3230-3

Bolt-Carriage 5/16-18 X1/4

$1.49

$

In Stock, Qty 20+

0

48

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, Qty 20+
