LZE751GKA72RA1 - Exmark 72" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 400000000 - 402082299) (2017) Deck Idler Assembly No. 126-1720 Parts Diagram

72" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

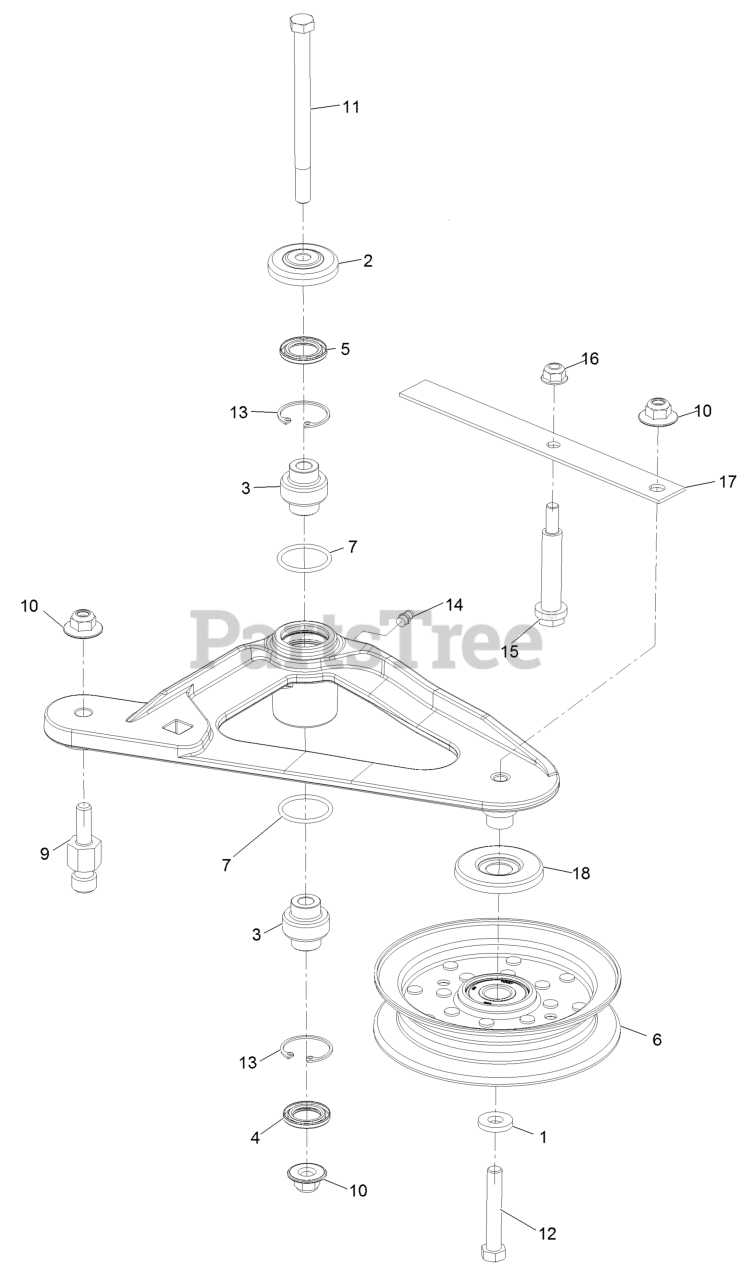

Deck Idler Assembly No. 126-1720 Parts Diagram

  • Title

1

Exmark 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

2

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

3

Exmark 103-3504

BEARING-SPHERICAL

$23.99

$

In Stock, Qty 20+

0

4

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

5

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

6

Exmark 126-9196

IDLER-PULLEY, FLAT

$63.99

$

In Stock, Qty 9

0

7

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

9

Exmark 126-0423

PIN-SPRING, ANCHOR

$7.99

$

Usually ships in 3-6 days

0

10

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 3 left!

0

11

Exmark 109-7409

SCREW-SHOULDER, HH

$5.49

$

In Stock, only 2 left!

0

12

Exmark 104-3396

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

13

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

14

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

15

Exmark 88-4590

BOLT-SHOULDER

$11.99

$

In Stock, only 1 left!

0

16

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 126-1704

SPRING-BELT

$20.99

$

In Stock, only 3 left!

0

18

Exmark 126-9195

SHIELD-GUARD, DUST

$2.99

$

In Stock, only 3 left!

0
